Safety Drop Stop “SDS” Pneumatic Balancer
Knight’s Safety Drop Stop “SDS” Pneumatic Balancer is the safest balancer in the world due to its ability to prevent a hoisted load from dropping in the event that the primary chain fails. The “SDS” Balancer prevents potential injuries to your operating personnel.
Pneumatic Balancers are used in applications where a “float” condition is beneficial. Float allows for the hands-free final positioning of an object. The up/down speed of an pneumatic balancer is quicker when compared to a hoist and allows for a “feathering” operation when locating the load. The pendant controls are ergonomically designed incorporating color-coded thumb levers.
Knight chain balancers use a custom grade 80 lifting chain specially treated to increase the life of the chain by up to 300% over standard grade 80 lifting chain.
SDS Series Model Numbers:
KBC250S-054, NEW KBC450S-052, KBC500S-084 & KBC700S-052
To see examples of custom Balancer applications designed by Knight, visit our Gallery.
Resources
Installation Guides
+
Air Balancer Trouble Shooting Guide (Netherlands)
Air Balancer Troubleshooting Guide-2017
Air Balancer Troubleshooting Guide-2021
Air Connection with Balancer Logic Box
Air Connection with Balancer Manifold
External Safety Retract Control Information
Eye Bolt Safety Cable Installation Instructions
Safety Cable Installation Instructions End Trucks, Hangers, Trolleys
General Information
+Features
- CE Compliant Upon Request.
- Redundant chain design for safe operation:
- Load Chain: Carries the load.
- Safety Chain: Rides along for redundancy.
- Hands-Free Operation.
- Standard “Float” Mode.
- Internal Centrifugal Retract Control.
- Requires Non-Lubricated Clean/Dry Air.
- Max Balancing Capacity: Up to 700 lbs. [318kg].
- Standard Travel: Up to 84 in. [2133mm].
Benefits
- Optional External Retract Controls.
- Optional Limit Switches.
- Optional High Relieving and Feathertouch Controls.
- Multiple Suspension Kits Available.
SDS Series Specifications
+SDS Series Specifications

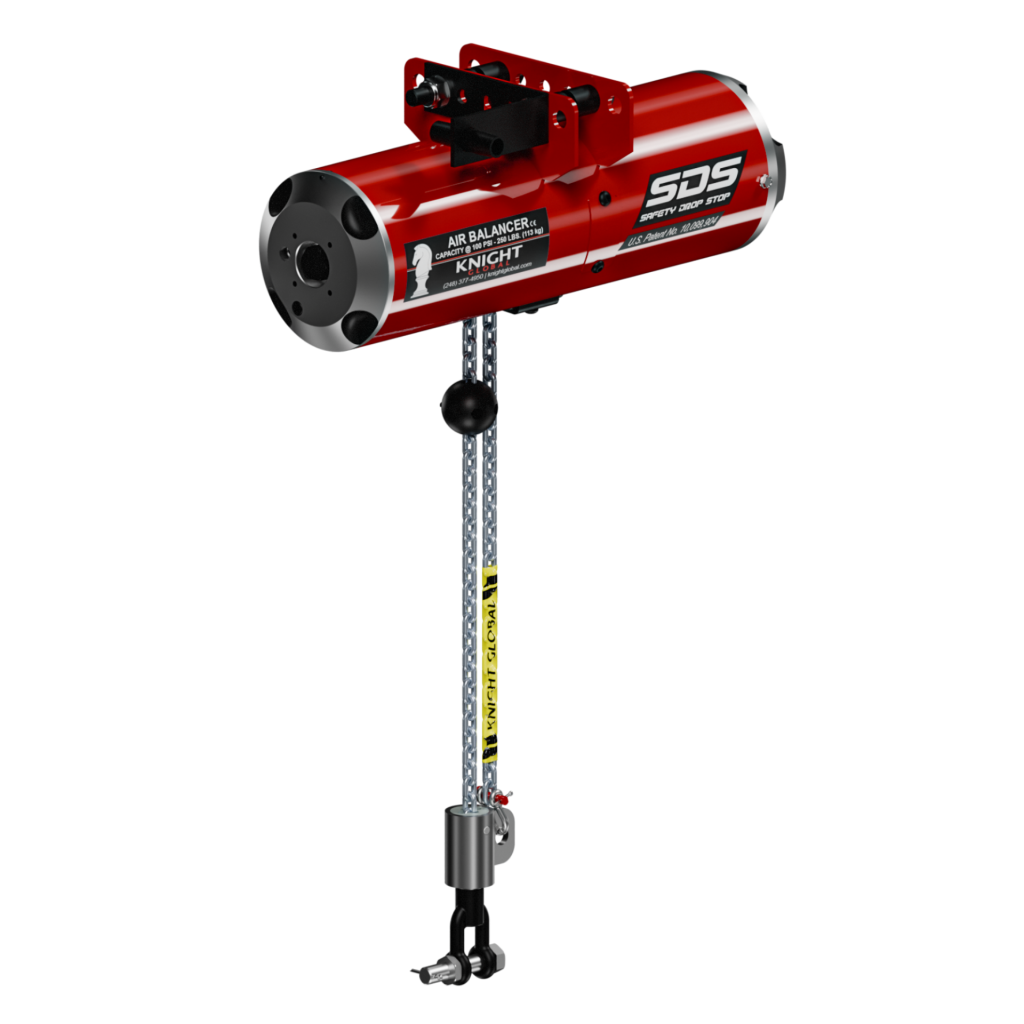

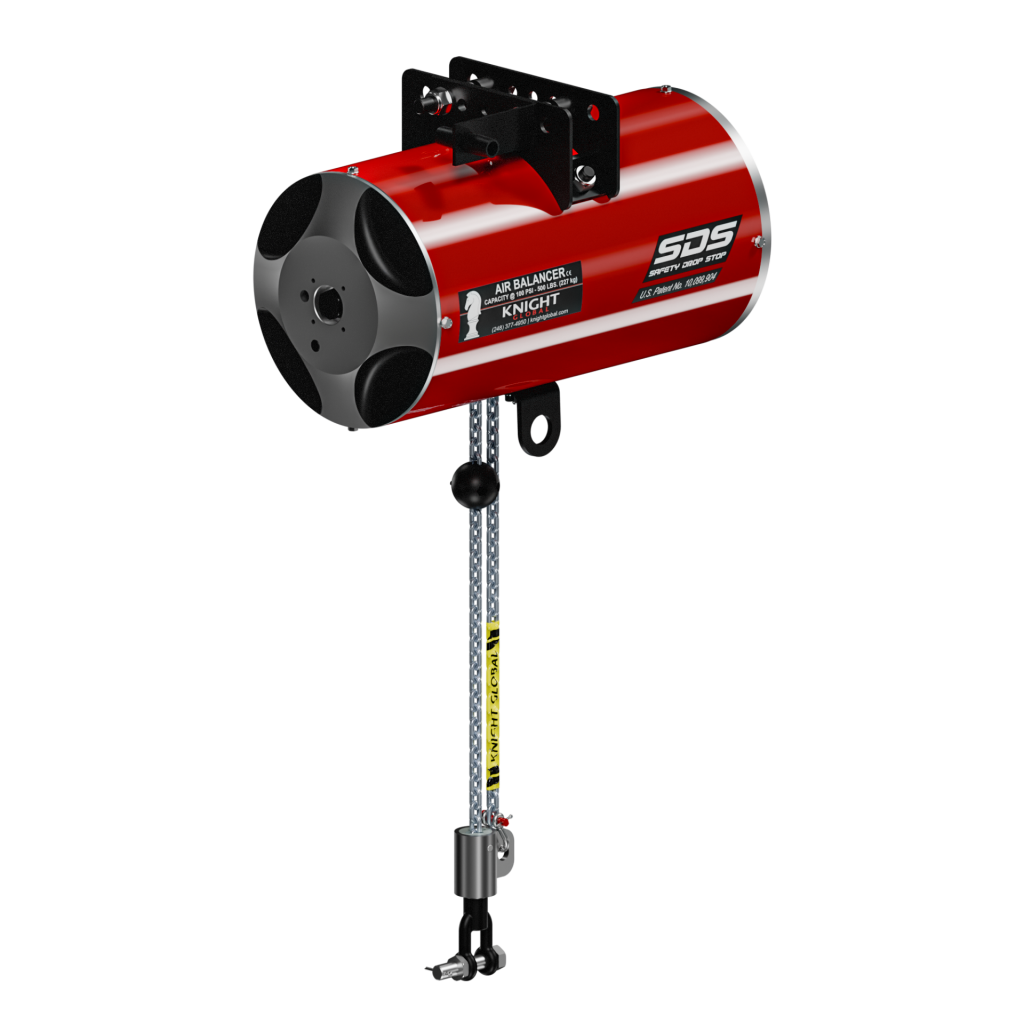

| Model Number | Capacity lbs [kg] | Travel in. [mm] |
|---|---|---|
| KBC250S-054 | 250 [113] | 54 [1,371] |
| KBC450S-052 | 450 [204] | 52 [1,321] |
| KBC500S-084 | 500 [227] | 84 [2,133] |
| KBC700S-052 | 700 [318] | 52 [1,321] |
Pneumatic Controls
+
- Can prevent airlines and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
- Capacities up to 1000lbs. [454kg]
- Sealed packaging to protect wiring, slip ring and rotate assembly.
- (7) Pneumatic Ports 1/8G pipes capable of 1 Mpa Positive Pressure and Vacuum Pressure of -1.5kPa
- Includes KSAA1004 Shackle.
- Pad Eye or Chain Nest options for chain attachment.
- Eliminates the need for a separate pendant.
- Allows the operator to control the up and down movements close to the part.
- Horizontal handle (BCS2213)
- Vertical handle (BCS2214)
- (1) BPA9050B Pneumatic Block.
- 2-way valves for up/ down movement.
- Ergonomic Handle Grip.
- Thumb Lever Guards.
- Manifold kit included.
- Controls (2) different weights at zero gravity.
- Pendant buttons control which balance the operator desires.
- Primarily used in hands free applications where the operator picks up a part and sets it down.
- Dual balance creates a zero gravity for the end effector with or without a part.
- Ergonomic Handle Grip.
- Thumb Lever Guards to protect for inadvertent depressing of control levers.
- Supports a constant weight at zero gravity.
- Ideal for balancing fastening tools.
- Balances a single object without requiring the need for a separate pendant control.
- Allows for a hands free operation.
- Does not allow for variances in weights.
- Assists in increasing the air volume.
- Exhausts the air in a more efficient manner.
- BCS2090 – Loads under 250 lbs. [113kg].
- BCS2322 – Loads UP TO 500 lbs. [227kg].
Videos
+*Air Balancer – Setting Chain Length
*Air Glide Hose Management System
*Applications Compilation
*BPA2113 Hook – Setting Pin into Chain Link
*Cutting and Setting Chains on SDS Air Balancer
*Knight Rotary Union – Electric / Pneumatic
*KSAA1003 Chain Wear Gauge
*New Safety Drop Stop Air Balancer
*Pneumatic Rotary Union for Air Balancers
*SDS Air Balancer Chain Replacement (250 lb Model)
*SDS Air Balancer Chain Replacement (500 lb Model)
*Standard Balancer VS. External Retract Balancer
Air Balancer Manifold & Control Handle Installation
Air Balancer Safety Cable Kit Installation
Air Balancer to Rail Installation
Air Balancer Trolley Installation
SDS & Traditional Hoist Comparison
Accessories
General
+- Can prevent airlines and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
- Capacities up to 1000lbs. [454kg]
- Sealed packaging to protect wiring, slip ring and rotate assembly.
- (7) Pneumatic Ports 1/8G pipes capable of 1 Mpa Positive Pressure and Vacuum Pressure of -1.5kPa
- Includes KSAA1004 Shackle.
- Pad Eye or Chain Nest options for chain attachment.
- Steel Construction
- Measures Knight 4mm & 5mm Galvanized Chain Wear.
- 360 degree rotation.
- Forged Alloy Steel – Quenched and Tempered.
- Connection for Safety Chain.
- Nylon Safety Cover.
- Quick and Secure Connection.

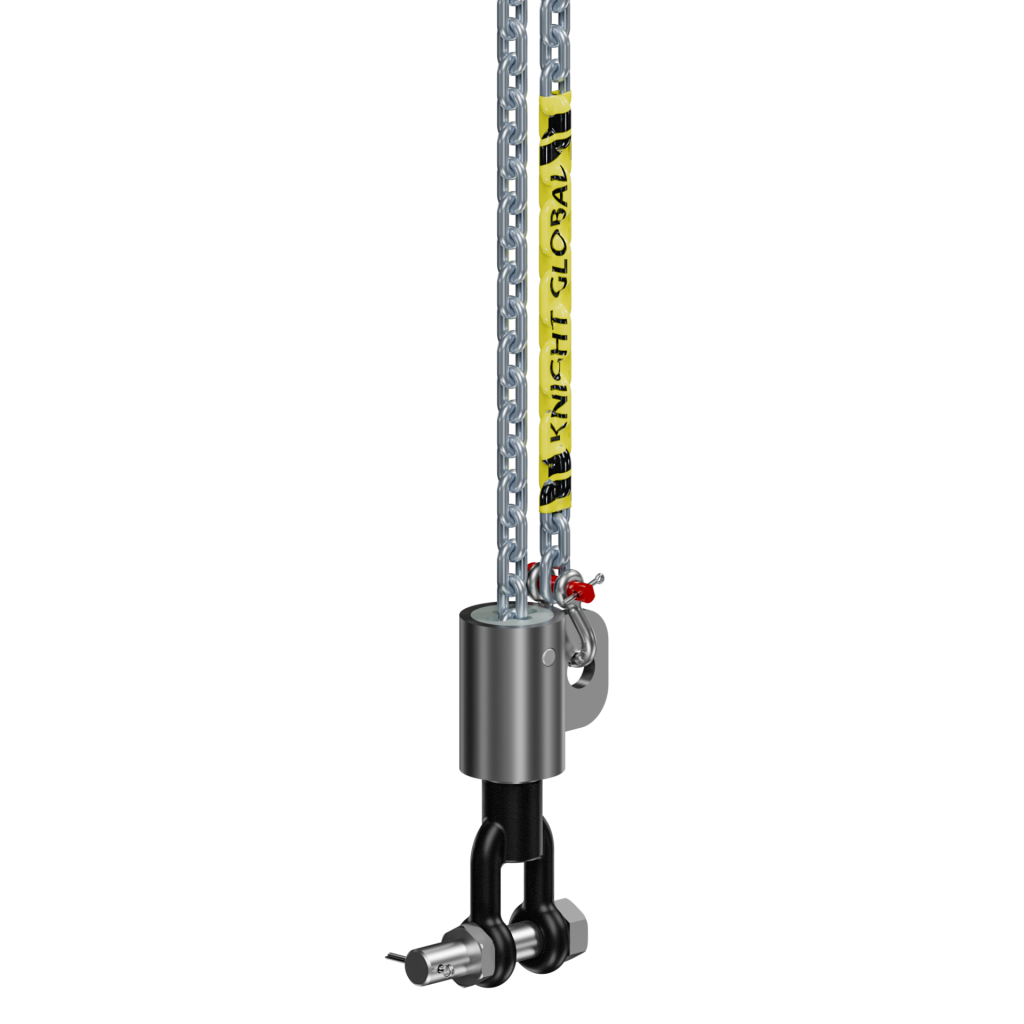

- 360 degree rotation.
- Steel Construction.
- Connection for Safety Chain.
- Quick and Secure Connection.

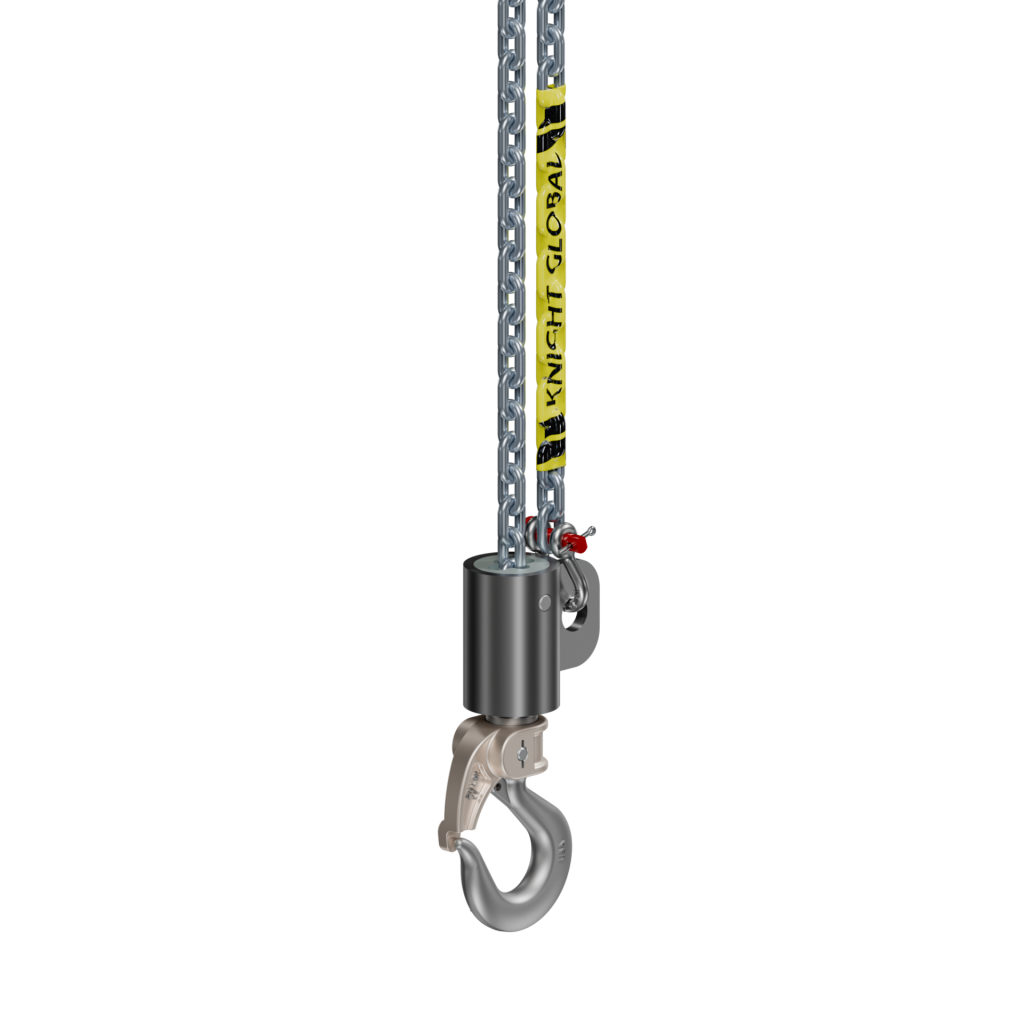

- (Carbon Steel) Crosby® Bullard Hook w/ Self Closing Gate.
- Quick and Secure Connection
- 360 degree rotation.
Load Trolley
+
- Recommended for the optimum Balancer Load Trolley.
- Fiberglass filled High Impact Nylon Wheels.
- Side Guide Rollers with integrated bearings.
- Double-shielded wheel bearings keep dirt out, and do not require lubrication.
- Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.
- Fiberglass filled High Impact Nylon Wheels.
- Side Guide Rollers with integrated bearings.
- Double-shielded wheel bearings keep dirt out, and do not require lubrication.
- Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.
- Fiberglass filled High Impact Nylon Wheels.
- Side Guide Rollers with integrated bearings.
- Double-shielded wheel bearings keep dirt out, and do not require lubrication.
- Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.
- Double-shielded wheel bearings keep dirt out, and do not require lubrication.
- Prevents drag on the load trolley.
- Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.
- Travels on a W-Beam, I-Beam and Patented Track.
- Steel Wheels.
- Double-shielded wheel bearings keep dirt out, and do not require lubrication.
- Travels on a S-Beam.
- Steel Wheels.
- Double-shielded wheel bearings keep dirt out, and do not require lubrication.
Safety Cables
+
- Used as Knight’s standard safety cable kit.
- (4) Crosby® Saddle Clamps
- (2) Cable Thimbles
- (1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).
- (4) Crosby® Saddle Clamps
- (2) Cable Thimbles
- (2) Eye Bolts
- (1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).
- (2) Copper Oval Sleeves
- (2) Cable Thimbles
- (1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).
Pneumatic Controls
+- Can prevent airlines and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
- Capacities up to 1000lbs. [454kg]
- Sealed packaging to protect wiring, slip ring and rotate assembly.
- (7) Pneumatic Ports 1/8G pipes capable of 1 Mpa Positive Pressure and Vacuum Pressure of -1.5kPa
- Includes KSAA1004 Shackle.
- Pad Eye or Chain Nest options for chain attachment.
- Air logic box and bracket.
- Logic box to balancer air bracket connection hose fitting
- Manifold to Balancer Air Bracket Connection to Hose Fitting.
- Air Manifold and Control Handle.
- Supports a constant weight at zero gravity.
- Ideal for balancing fastening tools.
- Balances a single object without requiring the need for a separate pendant control.
- Allows for a hands free operation.
- Does not allow for variances in weights.
- Assists in increasing the air volume.
- Exhausts the air in a more efficient manner.
- BCS2090 – Loads under 250 lbs. [113kg].
- BCS2322 – Loads UP TO 500 lbs. [227kg].
- Eliminates the need for a separate pendant.
- Allows the operator to control the up and down movements close to the part.
- Horizontal handle (BCS2213)
- Vertical handle (BCS2214)
- Controls (2) different weights at zero gravity.
- Pendant buttons control which balance the operator desires.
- Primarily used in hands free applications where the operator picks up a part and sets it down.
- Dual balance creates a zero gravity for the end effector with or without a part.
- Ergonomic Handle Grip.
- Thumb Lever Guards to protect for inadvertent depressing of control levers.
- (1) BPA9050B Pneumatic Block.
- 2-way valves used for a single acting air balancer or lift assist that is used for up/ down movement.
- Ergonomic Handle Grip.
- Thumb Lever Guards to protect for inadvertent depressing of control levers.
- (1) BPA9050B Pneumatic Block.
- 2-way valves for up/ down movement.
- Ergonomic Handle Grip.
- Thumb Lever Guards.
- Manifold kit included.
