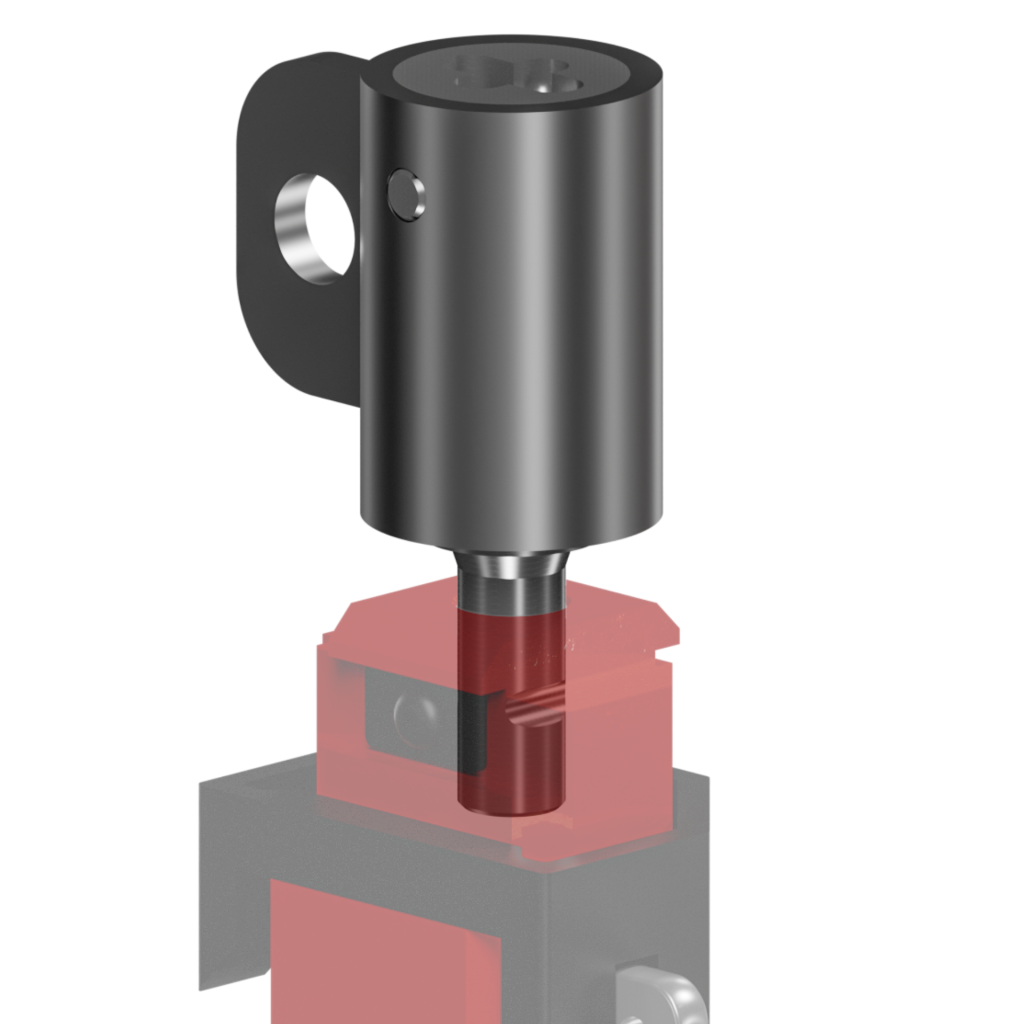

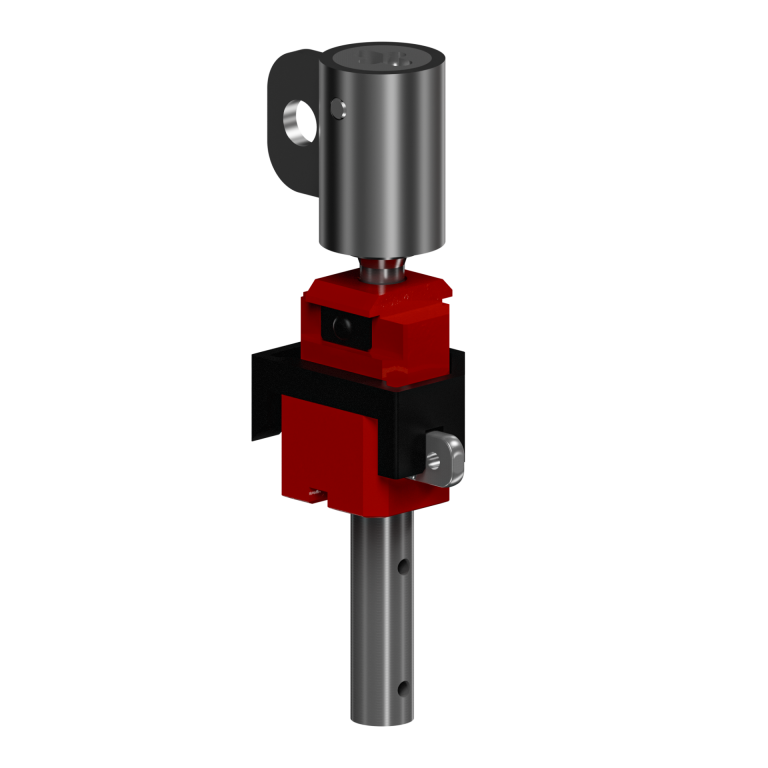

Quick Connect/Disconnect

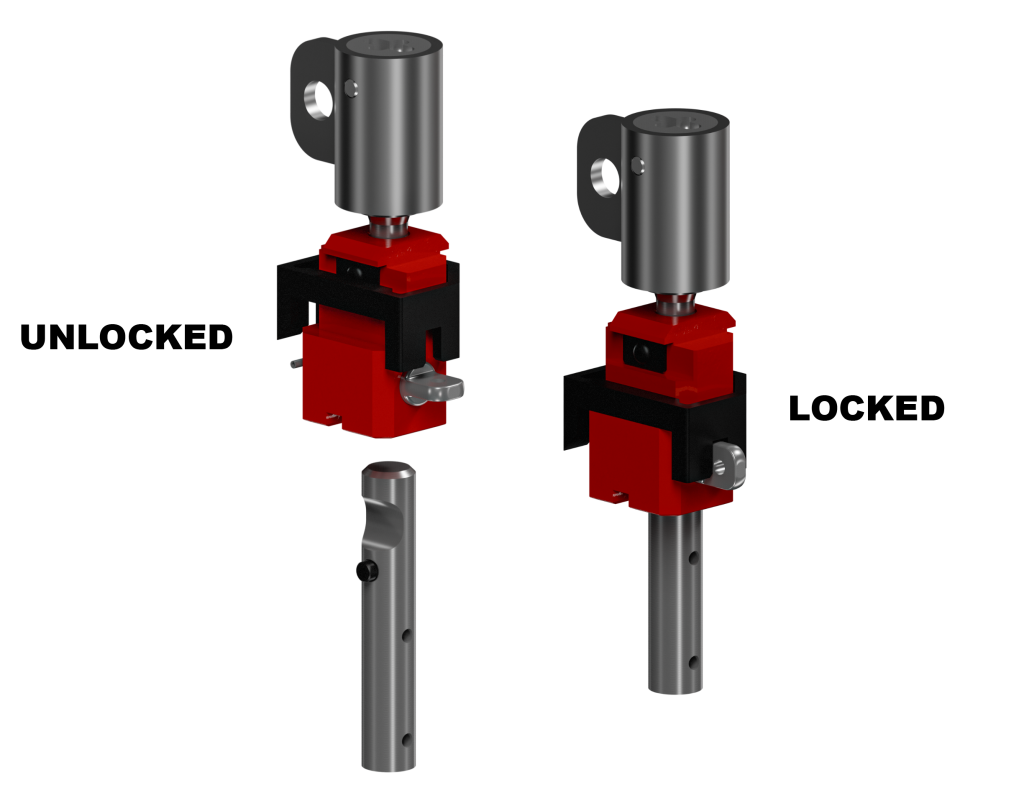

The BPA2035 Quick Connect/Disconnect allows for fast connections and disconnections of fixtures and end effectors. Easily disengages by the simple push and twist of the release pin. Each quick disconnect comes with two pins, and can be quickly connected to the load chain.

part number

BPA2035

features

  • 360 degree rotation.
  • Forged Alloy Steel – Quenched and Tempered.
  • Connection for Safety Chain.
  • Nylon Safety Cover.
  • Quick and Secure Connection.

max capacity

700 lbs [318 kgs]

weight

4.8 lbs. [2.22kg].

Resources

CAD Drawings

+

BPA2035 Download BPA2035

Spec Sheet

+

BPA2035 Quick Connect/Disconnect Download BPA2035 Quick Connect/Disconnect
