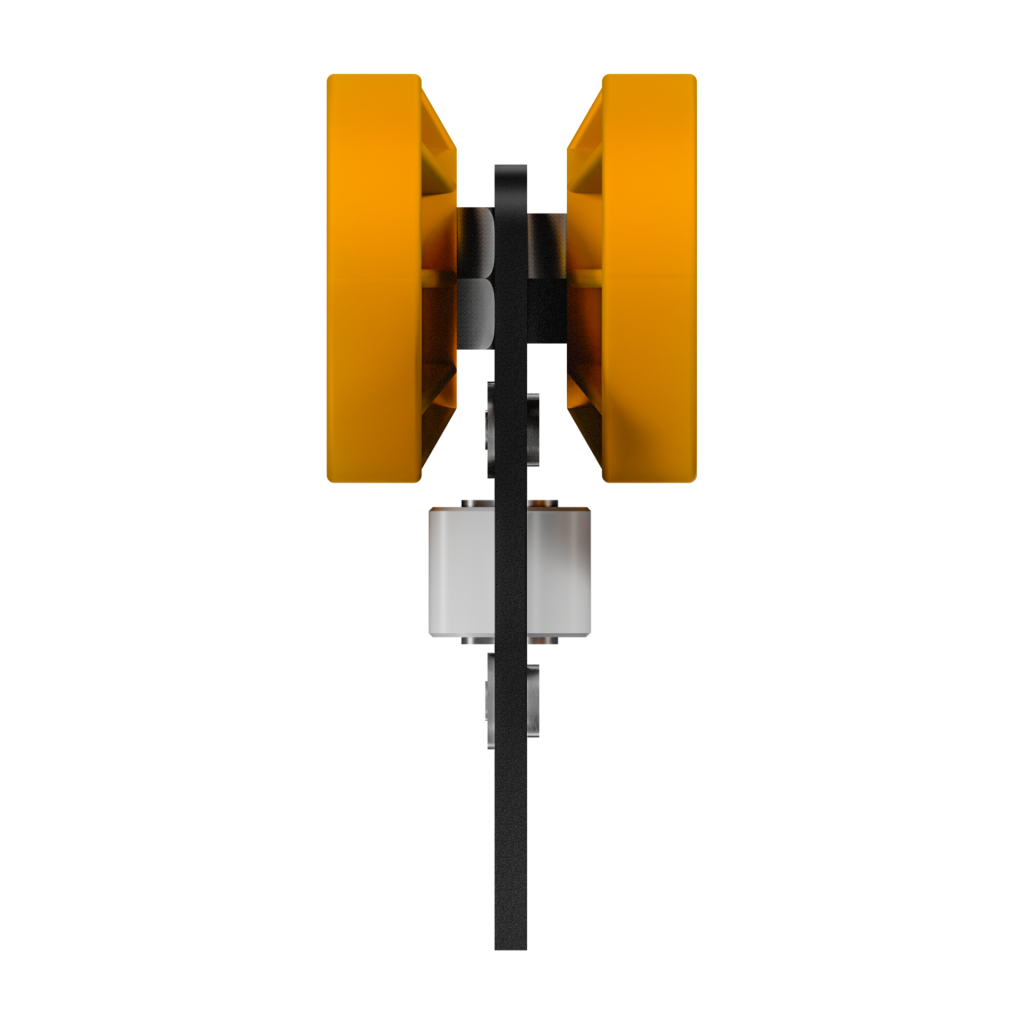

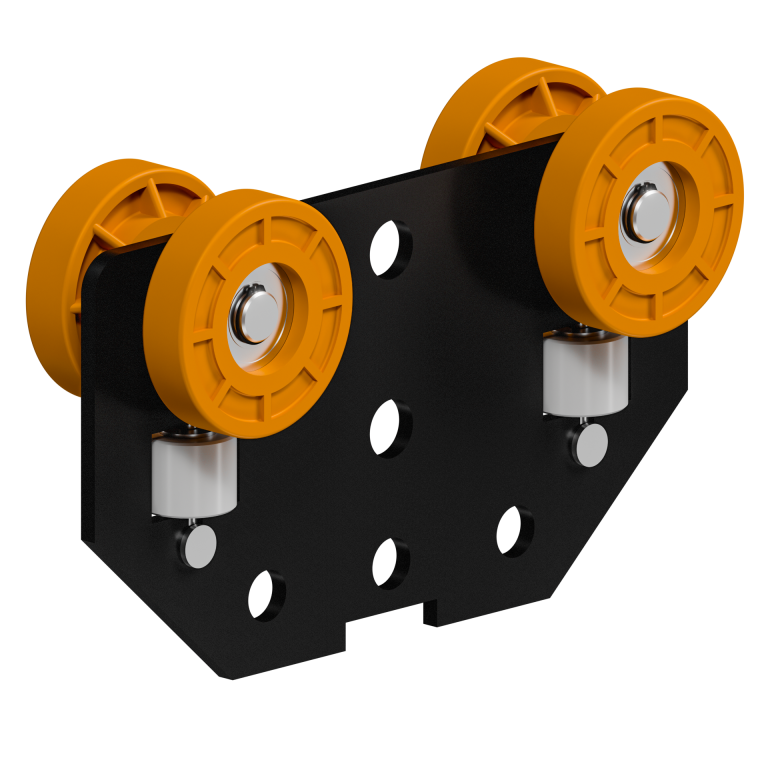

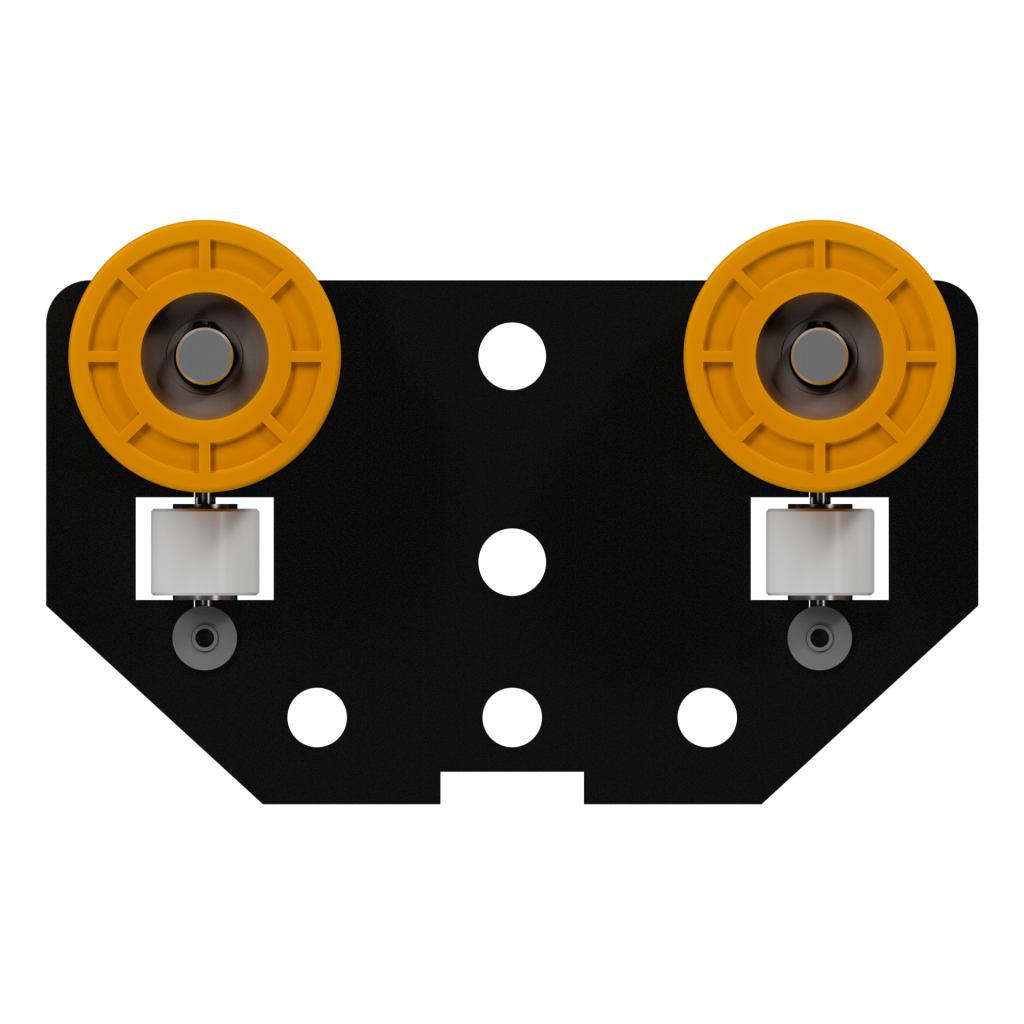

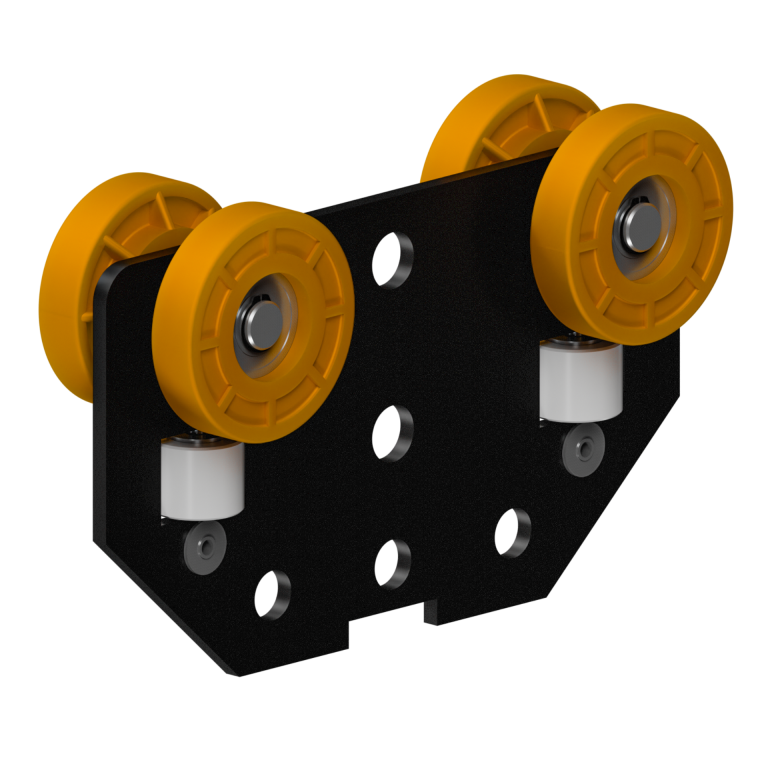

Load Trolley

The MRTA6106 Load Trolley suspends Knight pneumatic balancers and fixtures from RAD6110 series aluminum rail systems.

part number

MRTA6106

features

  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

max capacity

1,600 lbs. [725kg]

weight

6 lbs. [2.72kg]

Resources

CAD Drawings

+

MRTA6106 Download MRTA6106

Spec Sheet

+

MRTA6106 Load Trolley Download MRTA6106 Load Trolley
