Low Profile Jib Cranes

Knight’s Low Profile Jib Cranes are ergonomically designed to accommodate workstations where ceiling heights are inconvenient for an overhead crane system. This series offers a large tool coverage area with a single rotating rail on a floor-mounted pedestal.

Knight’s Jib Cranes can also be designed with the new Air Glide Hose Management system. See the page here for additional information.

The MJBA2050 is typically used in applications that require light duty tools to be suspended.

The MJBA2300 and MJBA2600 Low Profile Jib Cranes have an adjustable hard stop and a level adjustment screw used to adjust the pitch of the rail. They are considered Medium Duty Jib Cranes.

The MJBA2700 Heavy Duty Low Profile Jib Crane is designed to accommodate heavier loads.

To see examples of custom Jib Cranes designed by Knight, visit our Gallery.

MJBA2050

+

Features

  • For low headroom clearance applications.
  • Level Adjustment End Bracket used to adjust horizontal boom on rail.
  • TR2000 Series Rail Only.
  • Timken® Precision thrust bearing.
  • Max. Jib Length: Up to 10 ft. [3m].
  • Max. Under Rail Clearance Height: Up to 12 ft. [3.7m].
  • Max. Capacity: Up to 50 lbs. [23kg].

Benefits

  • Eliminates need for overhead system.
  • Easy (2) Two Piece Installation.
  • Thrust Bearing design Eases Rotational Effort.

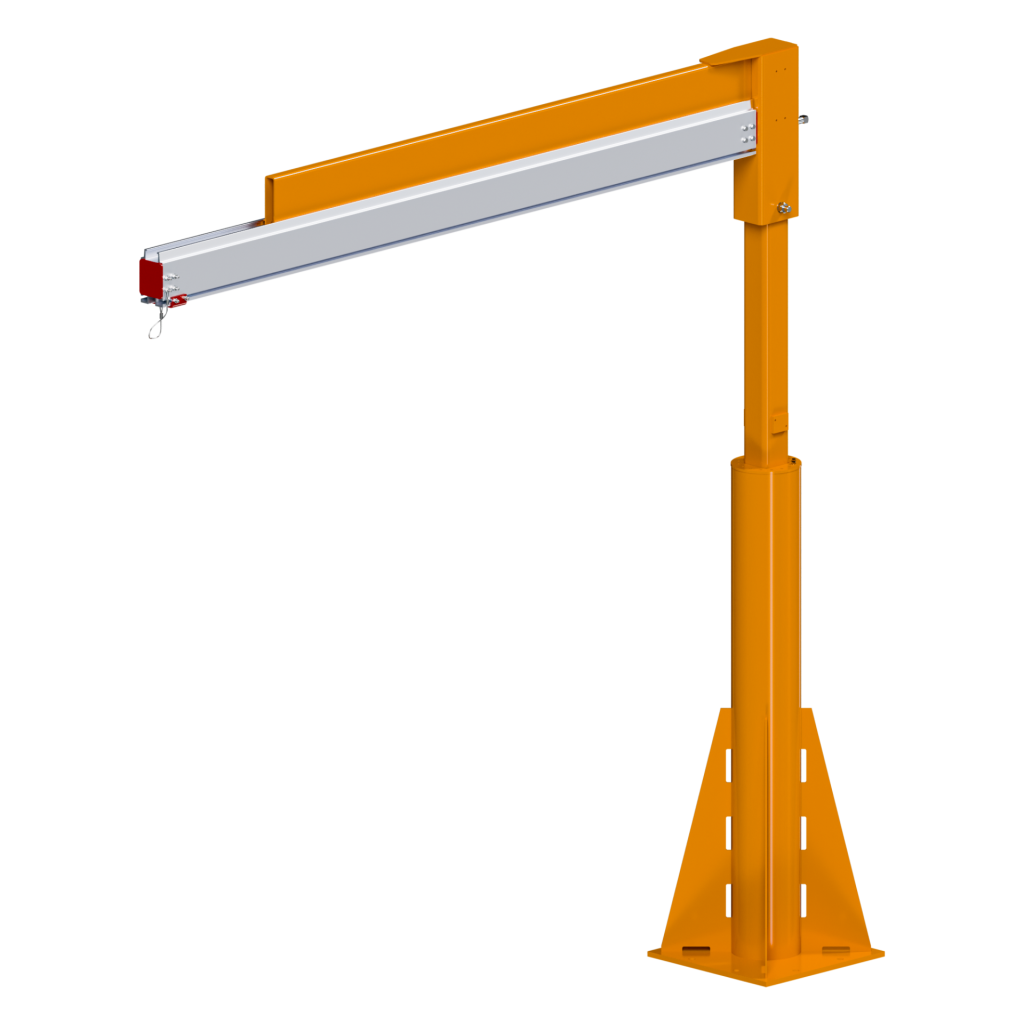

MJBA2300 and MJBA2600

+

Features

  • For low headroom clearance applications.
  • Level Adjustment End Bracket used to adjust pitch of rail.
  • RAD7510 Series Rail Only.
  • Adjustable Hard Stop.
  • Max. Jib Length: Up to 12 ft. [3.7m].
  • Max. Under Rail Clearance Height: Up to 12 ft. [3.7m].
  • Max. Capacity: Up to 865 lbs. [392kg].

Benefits

  • Eliminates need for overhead system.
  • Timken® Tapered Roller Bearing.
  • McGill® Cam Yoke Roller Bearing.
  • Optional MRES7522 Telescoping Rail.
  • Round post allows for 360° rotation.

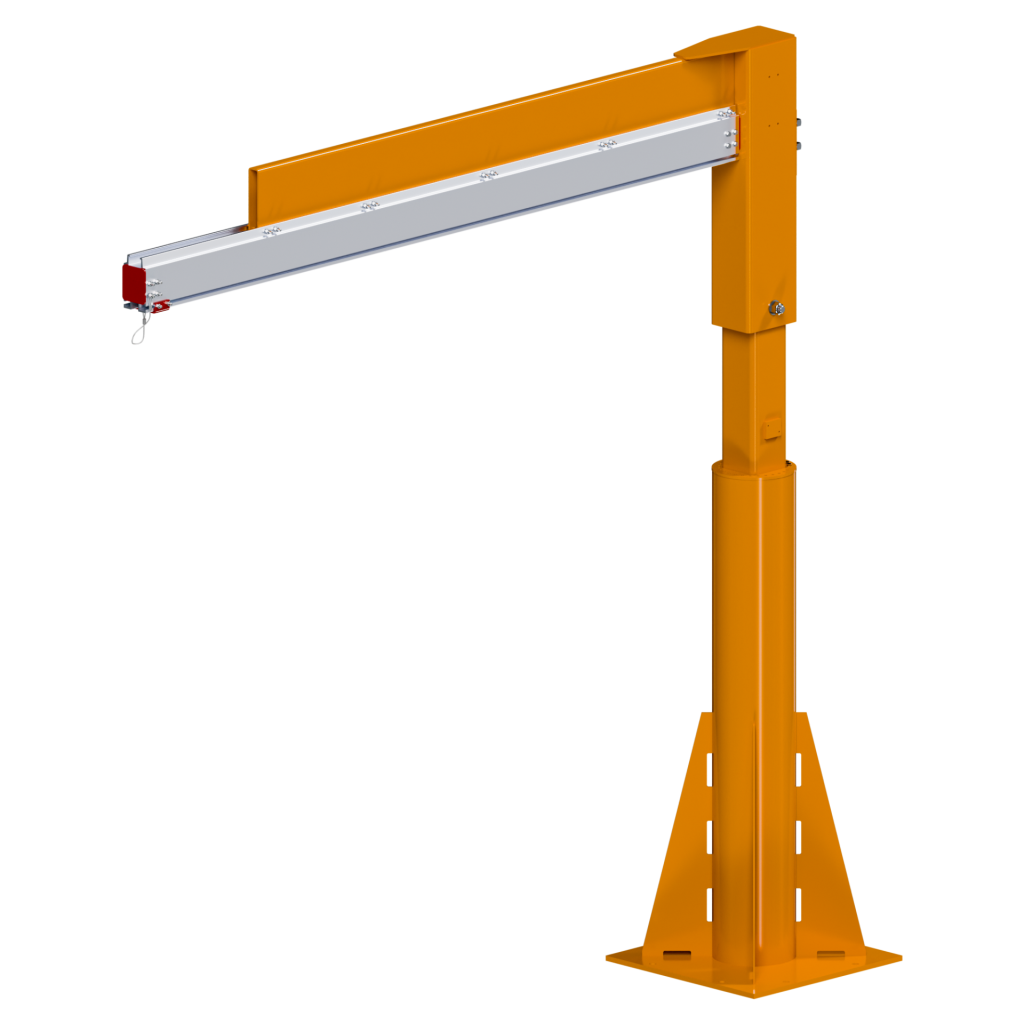

MJBA2700

+

Features

  • For low headroom clearance applications.
  • Level Adjustment End Bracket used to adjust pitch of rail.
  • RAD7510 Series Rail Only.
  • Adjustable Hard Stop.
  • Max. Jib Length: Up to 15 ft. [4.5m].
  • Max. Under Rail Clearance Height: Up to 15 ft. [4.5m].
  • Max. Capacity: Up to 2030 lbs. [920kg].
    For capacities greater than 2030 lbs, please contact a Knight representative.

Benefits

  • Eliminates need for overhead system.
  • Timken® Tapered Roller Bearing.
  • McGill® Cam Yoke Roller Bearing.
  • Optional MRES7522 Telescoping Rail.
  • Round post allows for 360° rotation.

Capacity Charts

+



MJBA2300 JIB BOOM CAPACITY CHART
Based on L/225 Deflection Criteria

Jib Boom
Length

Jib Boom Under Rail Clearance
8ft.
[2.44m]
9ft.
[2.74m]
10ft.
[3.05m]
11ft.
[3.35m]
12ft.
[3.66m]
ft.
m.
lbs
kg
lbs
kg
lbs
kg
lbs
kg
lbs
kg
6
1.83
615
279
540
245
485
220
440
199
405
184
7
2.13
495
224
440
199
395
179
360
163
330
149
8
2.44
410
186
365
165
330
149
300
136
275
125
9
2.74
345
156
310
140
280
127
255
115
235
106
10
3.05
300
136
270
122
245
111
220
100
205
93
11
3.35
260
118
235
106
215
97
195
88
180
81
12
3.66
230
104
205
93
190
86
175
79
160
72
NOTE: Capacities over 1,000 lbs [454 kg] require a Dual Load Trolley in applications that use chain or cable.
Custom Lengths Available Upon Request.
MJBA2600 JIB BOOM CAPACITY CHART
Based on L/225 Defection Criteria

Jib Boom
Length

Jib Boom Under Rail Clearance
8ft.
[2.44m]
9ft.
[2.74m]
10ft.
[3.05m]
11ft.
[3.35m]
12ft.
[3.66m]
ft.
m.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
6
1.83
865
392
730
331
630
286
555
252
500
227
7
2.13
685
311
585
265
510
231
450
204
405
184
8
2.44
560
254
480
217
420
190
375
170
340
154
9
2.74
470
213
405
184
355
161
320
145
285
129
10
3.05
400
181
345
156
305
138
275
125
250
113
11
3.35
345
156
300
136
265
120
240
109
220
100
12
3.66
300
136
265
120
235
106
210
95
195
88
NOTE: Capacities over 1,000 lbs [454 kg] require a Dual Load Trolley.
Custom Lengths Available Upon Request.



MJBA2700 JIB BOOM CAPACITY CHART
Based on L/225 Defection Criteria

Jib Boom
Length

Jib Boom Under Rail Clearance
8ft.
[2.44m]
9ft.
[2.74m]
10ft.
[3.05m]
11ft.
[3.35m]
12ft.
[3.66m]
13ft.
[3.96m]
14ft.
[4.27m]
15ft.
[4.57m]
ft.
m.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
lbs.
kg.
6
1.83
2030
920
1965
891
1770
803
1605
728
1470
667
1355
615
1255
569
1170
531
7
2.13
1680
762
1520
689
1370
621
1250
567
1150
522
1065
483
985
447
920
417
8
2.44
1410
639
1215
551
1105
501
1010
458
930
422
865
392
805
365
755
342
9
2.74
1140
517
1000
454
915
415
835
379
775
351
720
326
675
306
630
286
10
3.05
930
422
840
381
770
349
710
322
660
299
615
279
575
261
540
245
11
3.35
800
363
715
324
660
299
610
277
565
256
530
240
495
224
470
213
12
3.66
680
308
620
281
570
258
530
240
495
224
465
211
435
197
410
186
13
3.96
590
268
540
245
500
227
465
211
435
197
410
186
385
175
365

165

14
4.27
520
236
475
215
445
202
415
188
390
177
365
165
345
156
325
147
15
4.57
460
209
425
193
395
179
370
168
345
156
325
147
310
141
295
134
NOTE: Capacities over 1,000 lbs [454 kg] require a Dual Load Trolley.
Custom Lengths Available Upon Request.
