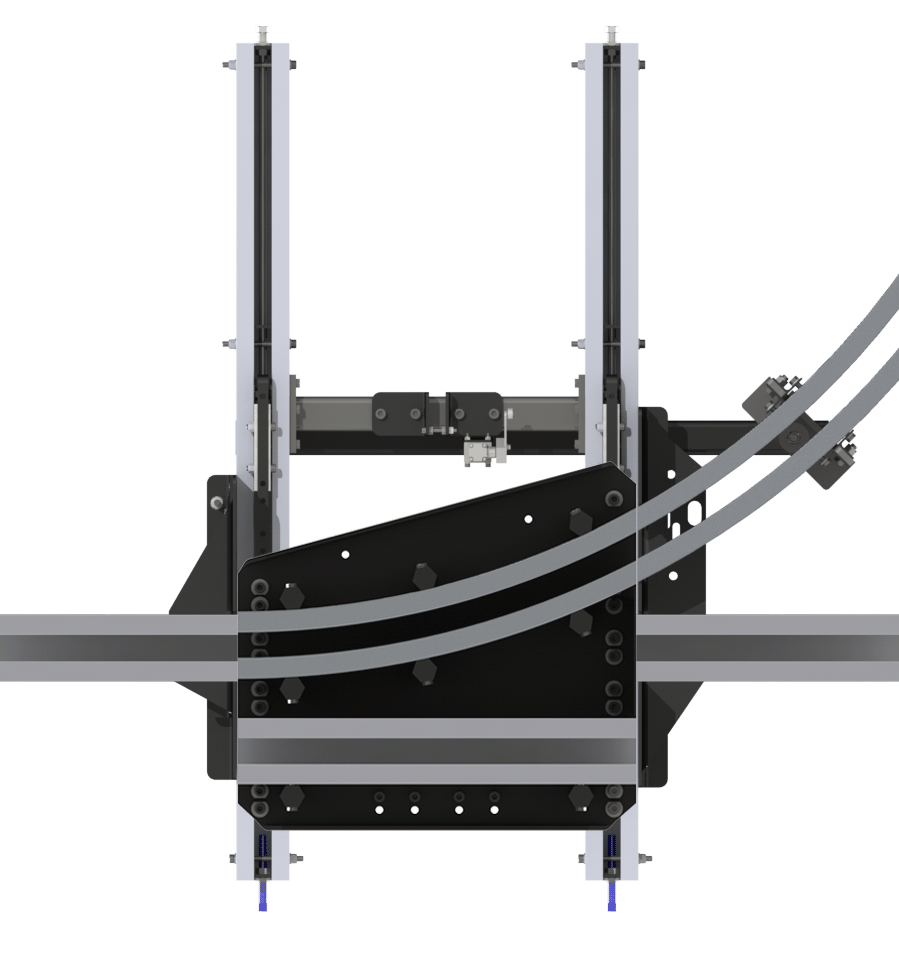

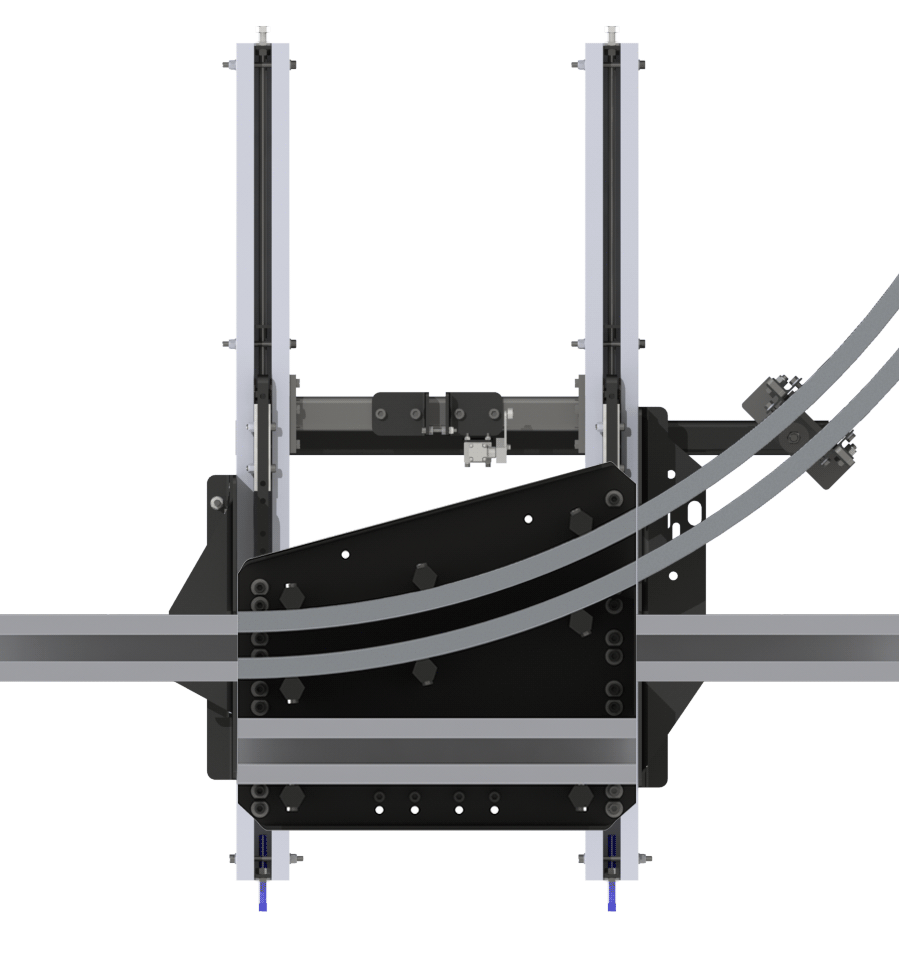

RAD Series Switch Track Rail
Knight’s RAD Series Switch Track Rail allows for fixtures to be transferred between work zones without cranes, fork trucks, or disassembling the system. It is a pneumatically operated track system that can be controlled from a fixture control handle or from a pendant switch that hangs below the switch track. This track is available in RAD6110 series rail.
Each RAD Series Switch Track Rail is custom designed specifically for the needed application. For more information, please contact a Knight Representative.
Resources
General Information
+Features
- Transfers fixtures between workstations.
- Pneumatically Operated.
- RAD6110 applications.
- Fixture Control Handle or Pendant Switch Operated.
Benefits
- All Knight Trolleys are capable of traveling inside of the Switch Track.
- No special End Trucks are required.
Videos
+*Switch Track Rail Systems
RAD Series Switch Track Rail
Accessories
Hangers
+Filter by Rail Type
Features
- Suspends Knight’s RAD4110, RAD6110, or RAD7510 Series Rail.
- For Direct Loads Only.
- Adjustable Height Hanger.
- Structural Support Flange Size: 2 in. – 7 in. [51mm – 178mm].
- Max I-Beam Flange thickness: 7/16″ (Thicker flange beams will require modified hanger, available upon request).
- Includes 1 ft. [0.3m] Threaded Rod.
- Includes: (2) Jam Nuts and (2) Spring Clips.
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional Threaded Rod: Up to 12 ft. [3.6m] (Each additional 1 ft. [0.6m] of rod adds .905 lbs. [0.41kg] to overall weight.)
- Optional RWA4133 Safety Cable.
Features
- Suspends Knight’s RAD4110, RAD6110, or RAD7510 Series Rail.
- For Direct Loads Only.
- Adjustable Height Hanger.
- Structural Support Flange Size: 7 in. – 11 in. [178mm – 279mm].
- Max I-Beam Flange thickness: 7/16″ (Thicker flange beams will require modified hanger, available upon request).
- Includes 1 ft. [0.3m] Threaded Rod.
- Includes: (2) Jam Nuts and (2) Spring Clips.
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional Threaded Rod: Up to 12 ft. [3.6m] (Each additional 1 ft. [0.6m] of rod adds .905 lbs. [0.41kg] to overall weight.)
- Optional RWA4133 Safety Cable.
Features
- Suspends Knight’s RAD4110, RAD6110, or RAD7510 Series Rail.
- For Direct Loads Only.
- Adjustable Height Hanger.
- Structural Support Flange Size: 2 in. – 7 in. [51mm – 178mm].
- Max I-Beam Flange thickness: 7/16″ (Thicker flange beams will require modified hanger, available upon request).
- Includes: (1) Jam Nuts and (1) Spring Clips.
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional RWA4133 Safety Cable.
Features
- Suspends Knight’s RAD4110, RAD6110, or RAD7510 Series Rail.
- For Direct Loads Only.
- Adjustable Height Hanger.
- Structural Support Flange Size: 7 in. – 11 in. [178mm – 279mm].
- Max I-Beam Flange thickness: 7/16″ (Thicker flange beams will require modified hanger, available upon request).
- Includes: (1) Jam Nuts and (1) Spring Clips.
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional RWA4133 Safety Cable.
Features
- For Direct or Offset Loads Only.
- Vertical Adjustability: Up to 2.0 in. [50.8mm]. (Adj. in .25 in. [6.35mm] increments).
- Structural Support Flange Size: 2 in. – 7 in. [51mm – 178mm].
- Max I-Beam Flange thickness: 5/8″ (Thicker flange beams will require modified hanger, available upon request).
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional RWA4133 Safety Cable.
CAD Drawings
Spec Sheet
Features
- For Direct or Offset Loads Only.
- Vertical Adjustability: Up to 2.0 in. [50.8mm]. (Adj. in .25 in. [6.35mm] increments).
- Structural Support Flange Size: 2 in. – 7 in. [51mm – 178mm].
- Max I-Beam Flange thickness: 5/8″ (Thicker flange beams will require modified hanger, available upon request).
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional RWA4133 Safety Cable.
CAD Drawings
Spec Sheet
Features
- For Direct or Offset Loads.
- Redundant Structural Support Flange Sizes: 2 in. – 7 in. [51mm – 178mm].
- Max I-Beam Flange thickness: 7/16″ (Thicker flange beams will require modified hanger, available upon request).
- Fixed Height Hanger.
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional RWA4133 Safety Cable.
CAD Drawings
Installation Guides
Spec Sheet
Features
- For Direct or Offset Loads.
- Redundant Structural Support Flange Size: 7 in. – 11 in. [178mm – 279mm].
- Max I-Beam Flange thickness: 7/16″ (Thicker flange beams will require modified hanger, available upon request).
- Fixed Height Hanger.
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional RWA4133 Safety Cable.
CAD Drawings
Installation Guides
Spec Sheet
Features
- For Direct or Offset Loads.
- Structural Support Flange Size: 2 in. – 7 in. [51mm – 178mm].
- Max I-Beam Flange thickness: 7/16″ (Thicker flange beams will require modified hanger, available upon request).
- Fixed Height Hanger.
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional RWA4133 Safety Cable.
Features
- For Direct or Offset Loads Only.
- Vertical Adjustability: Up to 1.5 in. [38mm]. (Adj. in .25 in. [6.35mm) increments)
- Structural Support Flange Size: 7 in. – 11 in. [178mm – 279mm].
- Max I-Beam Flange thickness: 5/8″ (Thicker flange beams will require modified hanger, available upon request).
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional RWA4133 Safety Cable.
Features
- For Direct or Offset Loads Only.
- Vertical Adjustability: Up to 2.0 in. [50.8mm]. (Adj. in .25 in. [6.35mm] increments).
- Structural Support Flange Size: 7 in. – 11 in. [178mm – 279mm].
- Max I-Beam Flange thickness: 5/8″ (Thicker flange beams will require modified hanger, available upon request).
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional RWA4133 Safety Cable.
CAD Drawings
Spec Sheet
Features
- For Direct or Offset Loads Only.
- Vertical Adjustability: Up to 2.0 in. [50.8mm]. (Adj. in .25 in. [6.35mm] increments)
- Structural Support Flange Size: 7 in. – 11 in. [178mm – 279mm].
- Max I-Beam Flange thickness: 5/8″ (Thicker flange beams will require modified hanger, available upon request).
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
- Optional RWA4133 Safety Cable.
CAD Drawings
Spec Sheet
Features
- Structural Support Flange Size: 2 in. – 7 in. [51mm – 178mm].
- Used when Hangers Threaded Rod Length is 2 ft. [0.6m] or Greater.
- Max I-Beam Flange thickness: 7/16″ (Thicker flange beams will require modified hanger, available upon request).
- Includes: (6) Jam Nuts.
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®)
- Optional Threaded Rod: Up to 12 ft. [3.6m] (Each additional 1 ft. [0.6m] of rod adds .905 lbs. [0.41kg] to overall weight.)
CAD Drawings
Spec Sheet
Features
- Structural Support Flange Size: 7 in. – 11 in. [178mm – 279mm].
- Used when Hangers Threaded Rod Length is 2 ft. [0.6m] or Greater.
- Max I-Beam Flange thickness: 7/16″ (Thicker flange beams will require modified hanger, available upon request).
- Includes: (6) Jam Nuts.
- Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®)
- Optional Threaded Rod: Up to 12 ft. [3.6m] (Each additional 1 ft. [0.6m] of rod adds .905 lbs. [0.41kg] to overall weight.)
CAD Drawings
Spec Sheet
