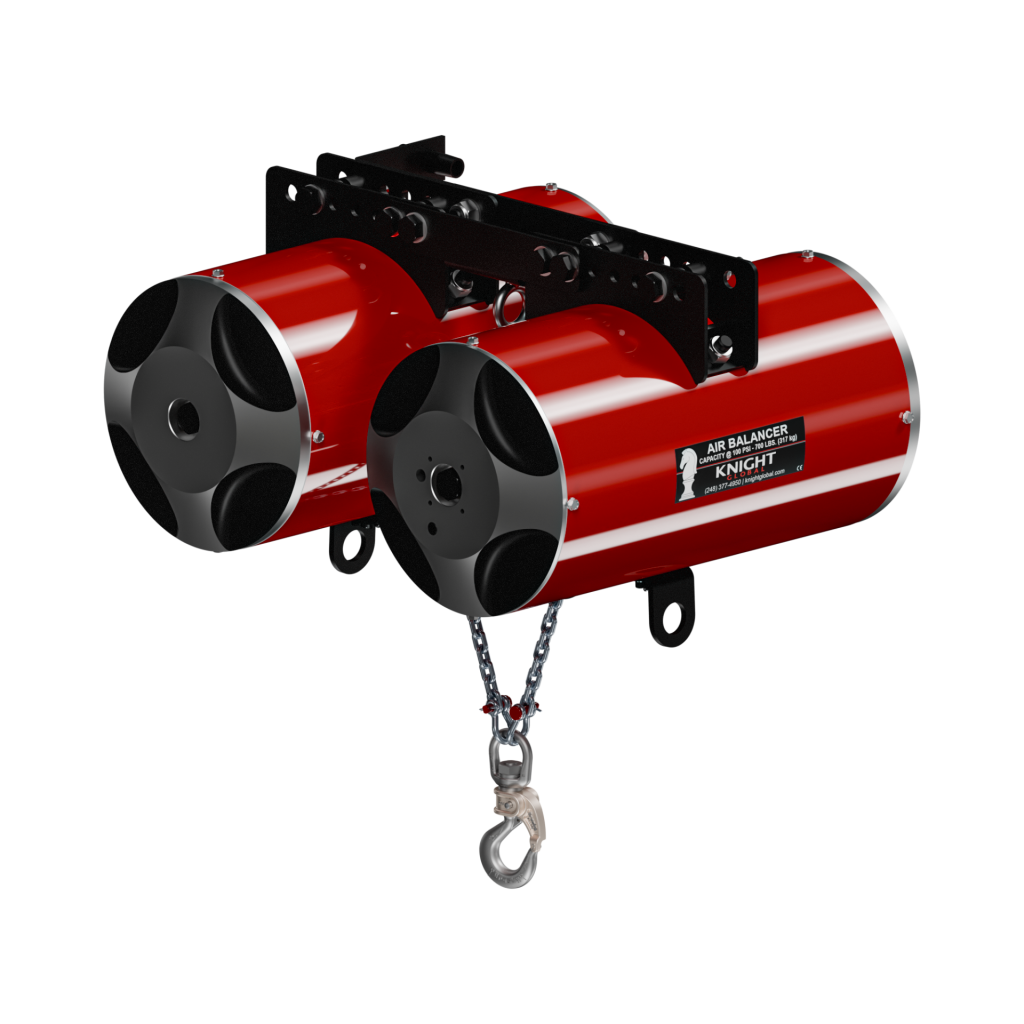

Tandem Cable/Chain Pneumatic Balancer Series

Knight’s Tandem Pneumatic Balancer Series is primarily designed for weights exceeding 700 lbs. [318kg]. Tandem pneumatic balancers are designed to provide the weight capacities of a reeved air balancer application, while simultaneously incorporating the extended travel benefits of a single pneumatic balancer.

Our tandem chain balancers use a custom grade 80 lifting chain specially treated to increase the life of the chain by up to 300% over standard grade 80 lifting chain.

When specifying a pneumatic balancer, it is recommended for working loads to use 80% of the operating capacity for lifting applications. This approach compensates for the normal fluctuations within the plant compressed air supply. Working loads include part weight and handling device weight. Balancers are rated at 100 psi [6.8bar] therefore use the following example to calculate exact operating capability.

Formula for pneumatic balancer sizing:

Example: plant air 60 psi, 350 air balancer, 80% load capability (0.60 air supply x 350 lbs. = 210 x .80 = 168 lbs. operating capability).

Tandem Cable Series Model Numbers:
TKBA700-073, TKBA1000-080 & TKBA1400-054

Tandem Chain Series Model Numbers:
TKBC700-067, TKBC1000-080 & TKBC1400-052

To see examples of custom Balancer applications designed by Knight, visit our Gallery.

General Information

+

Features

  • CE Compliant.
  • Cable or Chain.
  • Hands-Free Operation.
  • Standard “Float” Mode.
  • Internal Centrifugal Retract Control.
  • Requires Non-Lubricated Clean/Dry Air.
  • Max. Balancing Capacity: Up to 1400 lbs. [635kg].
  • Standard Travel: Up to 80 in. [2032mm].

Benefits

  • Optional External Retract Controls.
  • Optional Limit Switches.
  • Multiple Suspension Kits Available.

Tandem Cable/Chain Series Specifications

+

Tandem Cable Pneumatic Balancers

Model Number Rated Capacity lbs. [kg] Maximum Travel in. [mm]
TKBA700-073 700 lbs [318kg] 73 in [1854mm]
TKBA1000-080 1000 lbs [454kg] 80 in [2032mm]
TKBA1400-054 1400 lbs [635kg] 54 in [1371mm]

Tandem Chain Pneumatic Balancers

Model Number Rated Capacity lbs. [kg] Maximum Travel in. [mm]
TKBC700-067 700 lbs [318kg] 67 in [1701mm]
TKBC1000-080 1000 lbs [454kg] 80 in [2032mm]
TKBC1400-052 1400 lbs [635kg] 52 in [1320mm]

Videos

+

*Applications Compilation

*BPA2113 Hook – Setting Pin into Chain Link

*Pneumatic Rotary Union for Air Balancers

*Standard Balancer VS. External Retract Balancer

Air Balancer Cable Hook Installation

Air Balancer Manifold & Control Handle Installation

Air Balancer Safety Cable Kit Installation

Air Balancer to Rail Installation

Air Balancer Trolley Installation

Accessories

General

+
Features
  • Steel Construction
  • Measures Knight 4mm & 5mm Galvanized Chain Wear.

max capacity
n/a
weight
0.87 lbs [0.39kg]






Features
  • 360 degree rotation.
  • Steel Construction.
  • Connection for Safety Chain.
  • Quick and Secure Connection.

max capacity
n/a
weight
2.7 lbs. [1.23kg]
CAD Drawings






Features
  • (Carbon Steel) Crosby® Bullard Hook w/ Self Closing Gate.
  • Quick and Secure Connection
  • 360 degree rotation.

max capacity
n/a
weight
2.4 lbs. [1.08kg]
CAD Drawings






Features
  • 360 degree rotation.
  • Forged Alloy Steel – Quenched and Tempered.
  • Connection for Safety Chain.
  • Nylon Safety Cover.
  • Quick and Secure Connection.

max capacity
700 lbs [318 kgs]
weight
4.8 lbs. [2.22kg].
CAD Drawings






Load Trolley

+
Load Trolley

MRTA7706
Features
  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

Rail Type
RAD7510

max capacity
3,000 lbs. [1,360kg]
weight
9 lbs. [4.08kg]
jib type
n/a
CAD Drawings






Load Trolley

MRTA6106
Features
  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

Rail Type
RAD6110

max capacity
1,600 lbs. [725kg]
weight
6 lbs. [2.72kg]
jib type
n/a
CAD Drawings






Load Trolley

MRTA4442
Features
  • Recommended for the optimum Balancer Load Trolley.
  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

Rail Type
RAD4110

max capacity
1,100 lbs. [499kg]
weight
5 lbs. [2.26kg]
jib type
n/a
CAD Drawings






Load Trolley

TRT2001
Features
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.
  • Prevents drag on the load trolley.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

Rail Type
TR2000

max capacity
550 lbs. [250kg]
weight
2 lbs. [0.90kg]
jib type

TR2000 series

CAD Drawings






Load Trolley

RTA2013
Features
  • Travels on a W-Beam, I-Beam and Patented Track.
  • Steel Wheels.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.

Rail Type
I-Beam
Patented Track
W-Beam

max capacity
3,000 lbs. [1,360kg]
weight
23 lbs. [10.4kg]
jib type
n/a
CAD Drawings






Load Trolley

RTA2014
Features
  • Travels on a S-Beam.
  • Steel Wheels.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.

Rail Type
S-Beam

max capacity
3,000 lbs. [1,360kg]
weight
22.1 lbs. [10.2kg]
jib type
n/a
CAD Drawings






Safety Cables

+
Features
  • (4) Crosby® Saddle Clamps
  • (2) Cable Thimbles
  • (2) Eye Bolts
  • (1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).

Rail Type
RAD4110
RAD6110
RAD7510
TR2000

weight
n/a
cable thickness
0.25 in. [6mm]
lengths
10 ft. [3.048m]






Features
  • (2) Copper Oval Sleeves
  • (2) Cable Thimbles
  • (1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).




Rail Type
RAD4110
RAD6110
RAD7510
TR2000

weight
2 lbs. [.91kg]
cable thickness
0.25 in. [6mm]
lengths
10 ft. [3m.]






Safety Cable Kit

RWA4133
Features
  • Used as Knight’s standard safety cable kit.
  • (4) Crosby® Saddle Clamps
  • (2) Cable Thimbles
  • (1) Safety Cable made of a carbon steel 7 (strand) x 19 (wires) Galvanized Wire Rope (GWR).

Rail Type
RAD4110
RAD6110
RAD7510
TR2000

weight
n/a
cable thickness
0.25 in. [6mm]
lengths
6 ft. [1.8m]






Pneumatic Controls

+
Features
  • Air logic box and bracket.
  • Logic box to balancer air bracket connection hose fitting

max capacity
n/a
weight
n/a
lengths
n/a
hose type
n/a
configuration
n/a
handle type
n/a






Features
  • Manifold to Balancer Air Bracket Connection to Hose Fitting.
  • Air Manifold and Control Handle.

max capacity
n/a
weight
n/a
lengths
n/a
hose type
n/a
configuration
n/a
handle type
n/a






Features
  • Supports a constant weight at zero gravity.
  • Ideal for balancing fastening tools.
  • Balances a single object without requiring the need for a separate pendant control.
  • Allows for a hands free operation.

max capacity
150 lbs. [68kg].
weight
2.2 lbs. [0.99kg]
lengths
n/a
hose type
n/a
configuration
n/a
handle type
n/a
CAD Drawings






Features
  • Does not allow for variances in weights.
  • Assists in increasing the air volume.
  • Exhausts the air in a more efficient manner.
  • BCS2090 – Loads under 250 lbs. [113kg].
  • BCS2322 – Loads UP TO 500 lbs. [227kg].

max capacity
n/a
weight
n/a
lengths
10 ft. [3m]
hose type

Straight

configuration
n/a
handle type
n/a
CAD Drawings






Features
  • Eliminates the need for a separate pendant.
  • Allows the operator to control the up and down movements close to the part.
  • Horizontal handle (BCS2213)
  • Vertical handle (BCS2214)

max capacity
100 lbs. [45kg] at 80 psi
weight
12.4 lbs. [5.64kg].
lengths
10 ft. [3m]
hose type

Straight Hose Only

configuration

Horizontal or Vertical

handle type
n/a
CAD Drawings






Features
  • Controls (2) different weights at zero gravity.
  • Pendant buttons control which balance the operator desires.
  • Primarily used in hands free applications where the operator picks up a part and sets it down.
  • Dual balance creates a zero gravity for the end effector with or without a part.
  • Ergonomic Handle Grip.
  • Thumb Lever Guards to protect for inadvertent depressing of control levers.

max capacity
n/a
weight
10.2 lbs. [4.63kg].
lengths
10 ft. [3m]
hose type

BCS2323: Straight Hose
BCS2215: Coiled Hose

configuration

(2) Button

handle type
n/a
CAD Drawings






Features
  • (1) BPA9050B Pneumatic Block.
  • 2-way valves used for a single acting air balancer or lift assist that is used for up/ down movement.
  • Ergonomic Handle Grip.
  • Thumb Lever Guards to protect for inadvertent depressing of control levers.

max capacity
n/a
weight
n/a
lengths
10 ft. [3m]
hose type

BCS3330: Straight
BCS2326: Coiled

configuration

(2) Button

handle type
BPA9300
CAD Drawings






Features
  • (1) BPA9050B Pneumatic Block.
  • 2-way valves for up/ down movement.
  • Ergonomic Handle Grip.
  • Thumb Lever Guards.
  • Manifold kit included.

max capacity
n/a
weight
n/a
lengths
10 ft. [3m]
hose type

BCS3017: Straight
BCS3320: Coiled

configuration

(2) Button

handle type
BPA9300
CAD Drawings
