Vertical Roller Servo Arms

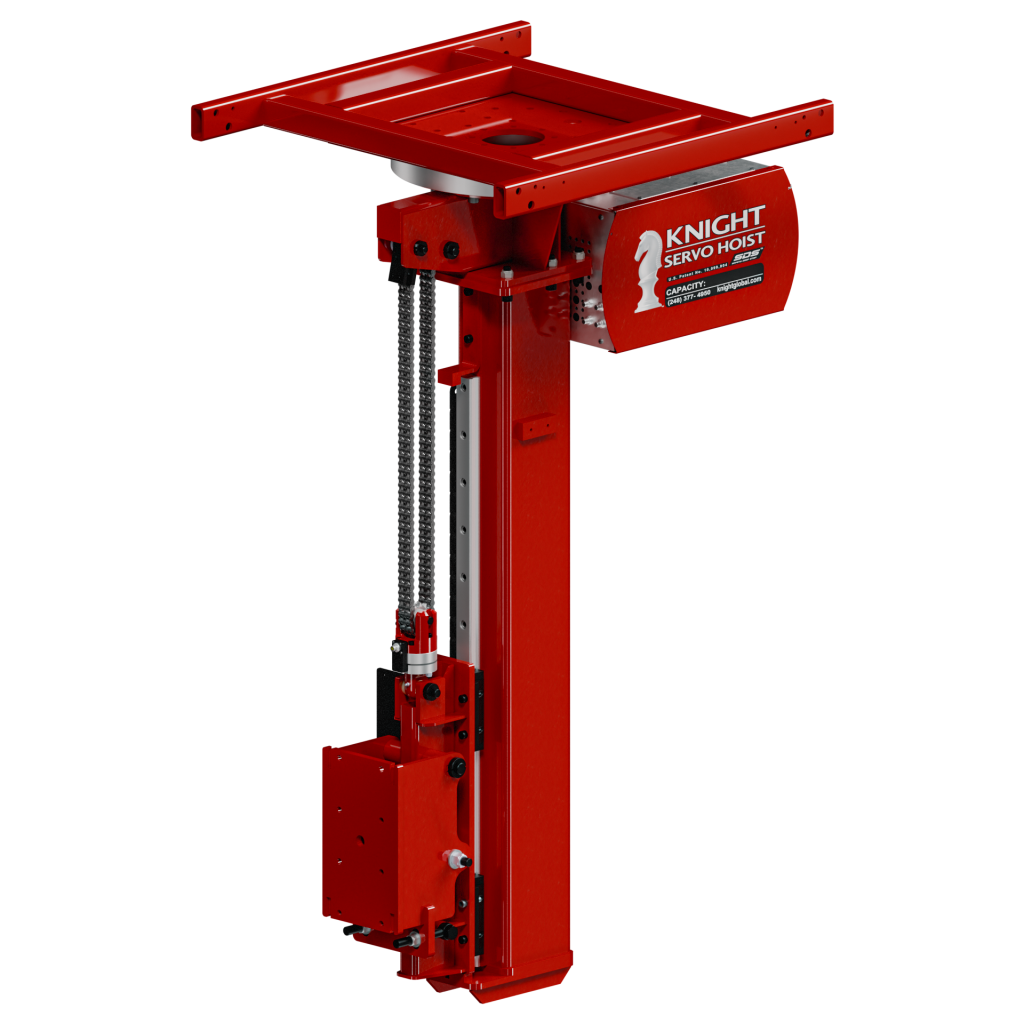

Knight KSHVAR Overhead Carriage Mounted and KSHVAAR Floor Mounted Vertical Roller Servo Arms are Intelligent Assist Device (IAD) that enable an operator to reach outside the area directly below a rail system and to precisely locate or float loads in the “Z” direction (vertical axis) with speed and reliability. The vertical roller servo arms allow for a non-linear overhead varied reach within a work cell or station.

Knight’s Servo Hoist technology becomes an extension of an operator’s natural movements and greatly improves accuracy, responsiveness and repeatability; which increases overall safety, productivity and quality. The inherent benefits include: eliminating wasted motions, reduced reaction times, and minimal effects of inertia with heavy loads.

Product does not come as shown. Overhead carriage sold separately. Contact a Knight representative for more information.

General Information

+

Mechanical

  • Speeds: Up to 131 ft. per min. [40mpm].
  • Floor Mounted Pedestal Heights: 8 ft. [2.4m] – 10 ft. [3.0m].
  • Safety Rating of 125%.
  • Fail Safe Brake.
  • Heavy Duty Roller Chain.
  • Chain Length: 12 ft. [365cm] – 20ft. [609cm].
  • Sealed Worm Style Gearbox.
  • H5 Rated (Continuous Duty Cycle).

Software

  • Programming and Diagnostic Communication Ports.
  • Virtual Travel Limits.
  • Speed Reduction Zones.
  • Impact Limiting.
  • Active Dampening.
  • Standard Float Mode.
  • Programmable Overload Capability.

Electrical

  • Industry Standard 24 VDC, 2 AMP power is available for custom tooling such as: Clamps, Vacuum Cups, Switches, Proximity Limits, Lights, etc.
  • Illuminated Run/ Stop Button.
  • 240 VAC, Single Phase 50/60 Hz.
  • Load Sensing, Pay Load and Handle Load.
  • I/O Capabilities:
    • (16) Inputs/ (8) Outputs
    • (8) Inputs/ (4) Outputs are free for interface controls.
  • LED Status Indicators, Green and Blue Lighted Push buttons.
  • LED Fault Indicators, Illuminated Run/ Stop Button, Twist to Release.

Specifications

+

KSHVAR OVERHEAD CARRIAGE MOUNTED SERVO HOIST ARM

Model Number Capacity lbs. [kg] Max. Speed [fpm/mpm] Voltage / Phase
KSHVAR750-2301 750 lbs. [340kg] 131.24 fpm. [40.0mpm] 240 / 1 Phase
KSHVAR1000-2301 1,000 lbs. [453kg] 65.62 fpm. [20.0mpm] 240 / 1 Phase

KSHVAAR FLOOR MOUNTED SERVO HOIST ARM

Model Number Capacity lbs. [kg] Max. Speed [fpm/mpm] Voltage / Phase
KSHVAAR750-2301 750 lbs. [340kg] 131.24 fpm. [40.0mpm] 240 / 1 Phase
KSHVAAR1000-2301 1,000 lbs. [453kg] 65.62 fpm. [20.0mpm] 240 / 1 Phase
