Single Cable/ Chain Pneumatic Balancer Series

Knight’s Single Pneumatic Balancer is used in applications where a “float” condition is beneficial. Float allows for the hands-free final positioning of an object. The up/down speed of a pneumatic balancer is quicker when compared to a hoist and allows for a “feathering” operation when locating the load. The pendant controls are ergonomically designed and incorporate color-coded thumb levers.

When specifying a pneumatic balancer, it is recommended for working loads to use 80% of the operating capacity for lifting applications. This approach compensates for the normal fluctuations within the plant compressed air supply. Working loads include part weight and handling device weight. Balancers are rated at 100 psi [6.8bar] therefore use the following example to calculate exact operating capability.

Formula for pneumatic balancer sizing:

Example: plant air 60 psi, 350 air balancer, 80% load capability (0.60 air supply x 350 lbs. = 210 x .80 = 168 lbs. operating capability).

General Information

+

Features

  • CE Compliant.

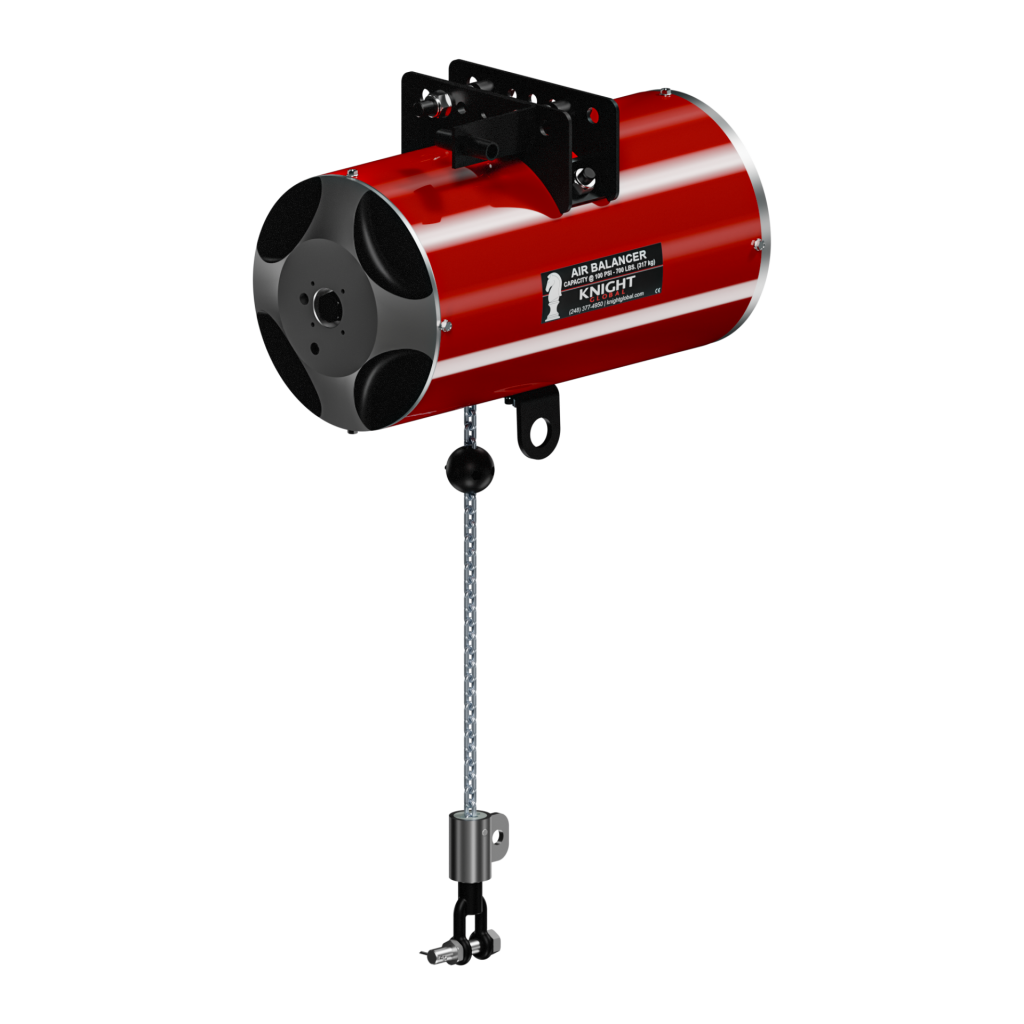

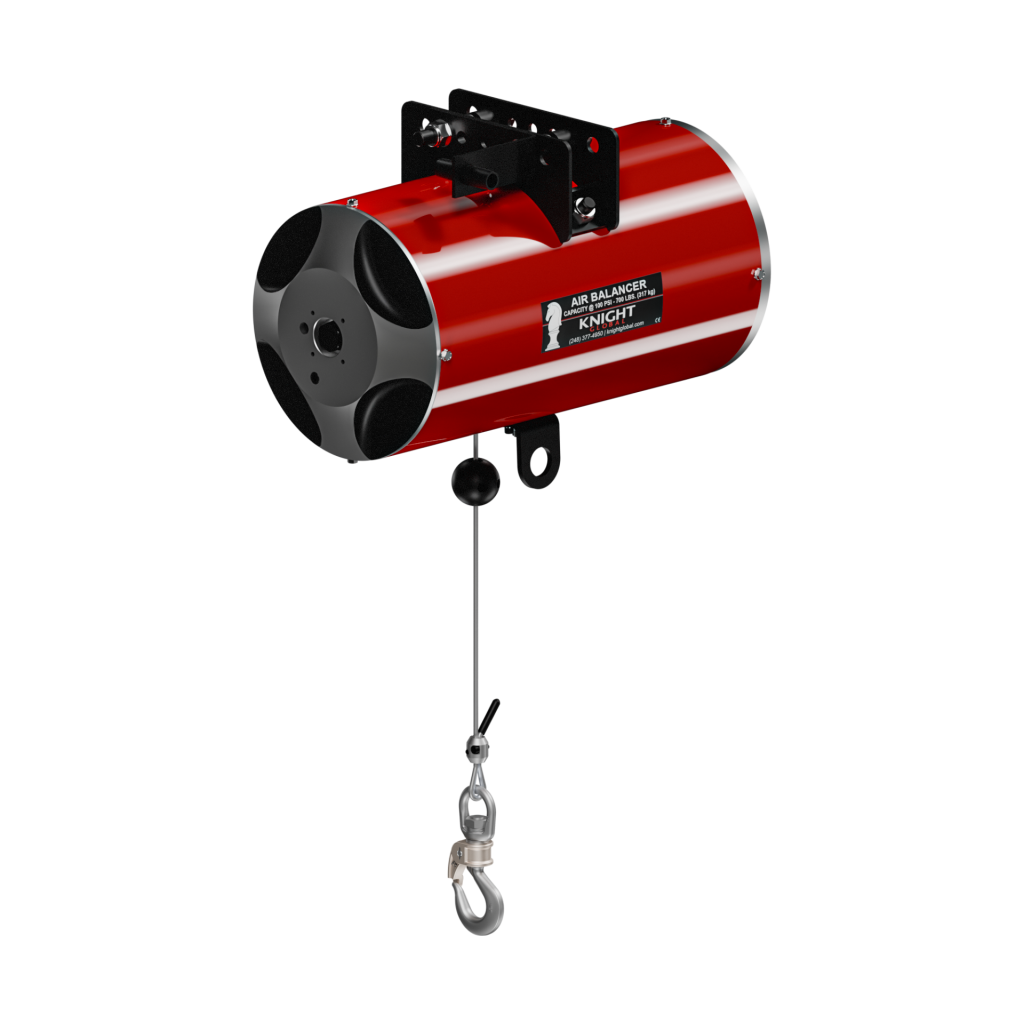

  • Cable or Chain.
  • Hands-Free Operation.
  • Standard “Float” Mode.
  • Internal Centrifugal Retract Control.
  • Requires Non-Lubricated Clean/Dry Air.
  • Max. Balancing Capacity: Up to 700 lbs. [317kg].
  • Standard Travel: Up to 110 in. [2794mm].

Note: Knight recommends the use of high performance, extreme pressure, anti-wear food grade penetrating oil (Lubriplate® 1241 Recommended) that penetrates and lubricates cable. For chain (SAE 50 to 90 EP oil or equivalent machine/gear oil) is Recommended.

Benefits

  • Stroke is longer (Certain Models).
  • Optional External Retract Controls.
  • Optional Limit Switches.
  • Optional High Relieving and Feathertouch Controls.
  • Optional Reeved and Tandem Series.
  • Tool-Bench sized applications.
  • Multiple Suspension Kits Available.

Specifications

+

Cable Pneumatic Balancers

Model Number Rated Capacity lbs. [kg] Maximum Travel in. [mm]
KBA100-028 100 lbs [45kg] 28 in [711mm]
KBA150-076 150 lbs [68kg] 76 in [1930mm]
KBA225-0730 225 lbs [102kg] 73 in [1854mm]
KBA225-110 225 lbs [102kg] 110 in [2794mm]
KBA350-073 350 lbs [159kg] 73 in [1854mm]
KBA500-080 500 lbs [227kg] 80 in [2032mm]
KBA700-054 700 lbs [317kg] 54 in [1371mm]

Chain Pneumatic Balancers

Model Number Rated Capacity lbs. [kg] Maximum Travel in. [mm]
KBC150-070 150 lbs [68kg] 70 in [1778mm]
KBC200-110 200 lbs [91kg] 110 in [2794mm]
KBC225-067 225 lbs [102kg] 67 in [1701mm]
KBC350-067 350 lbs [159kg] 67 in [1701mm]
KBC500-080 500 lbs [227kg] 80 in [2032mm]
KBC700-052 700 lbs [317kg] 52 in [1320mm]
