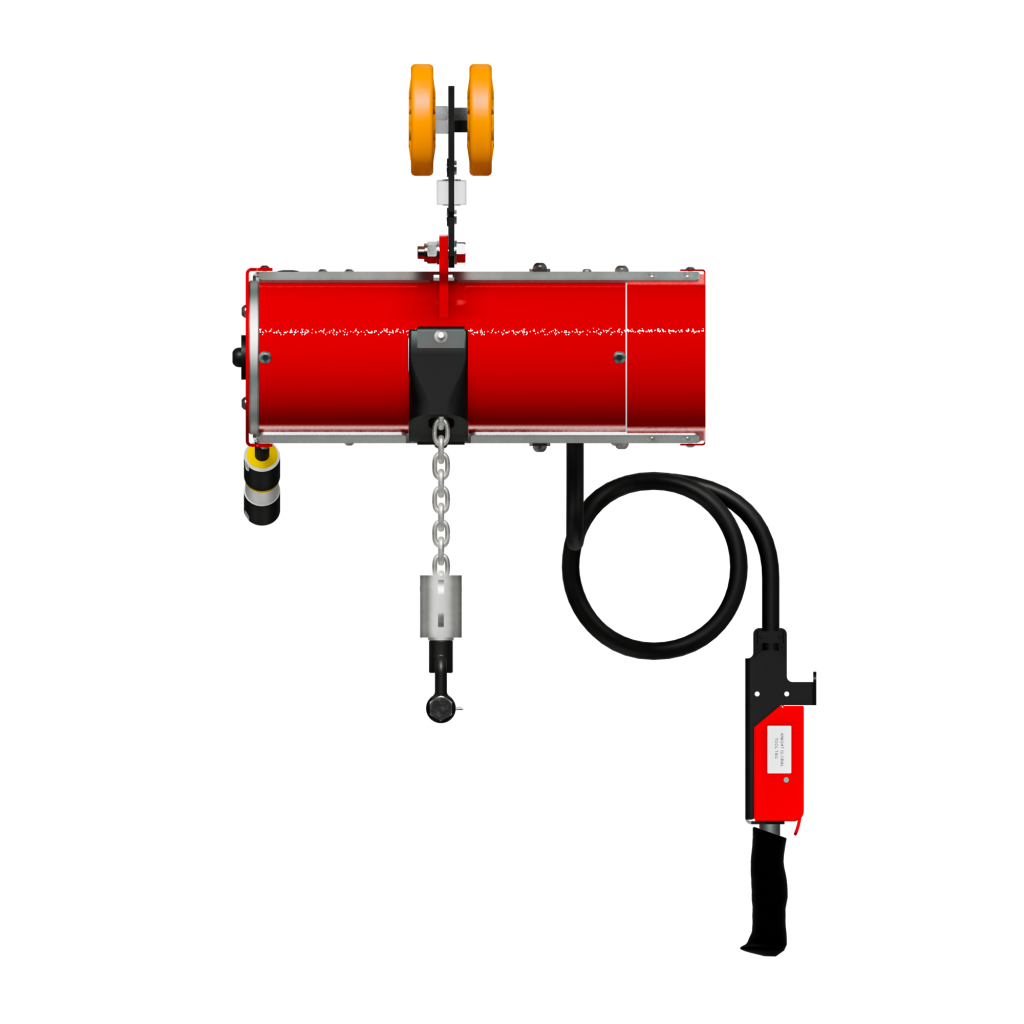

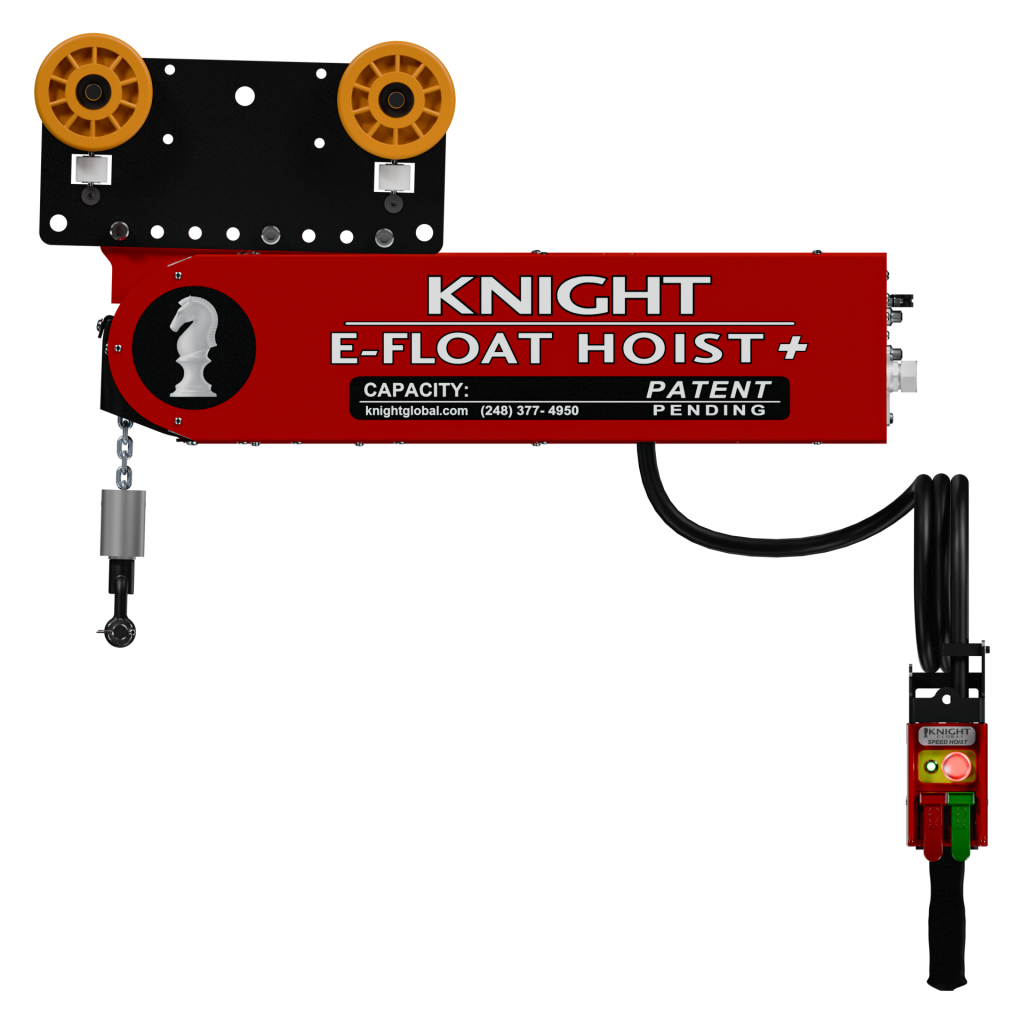

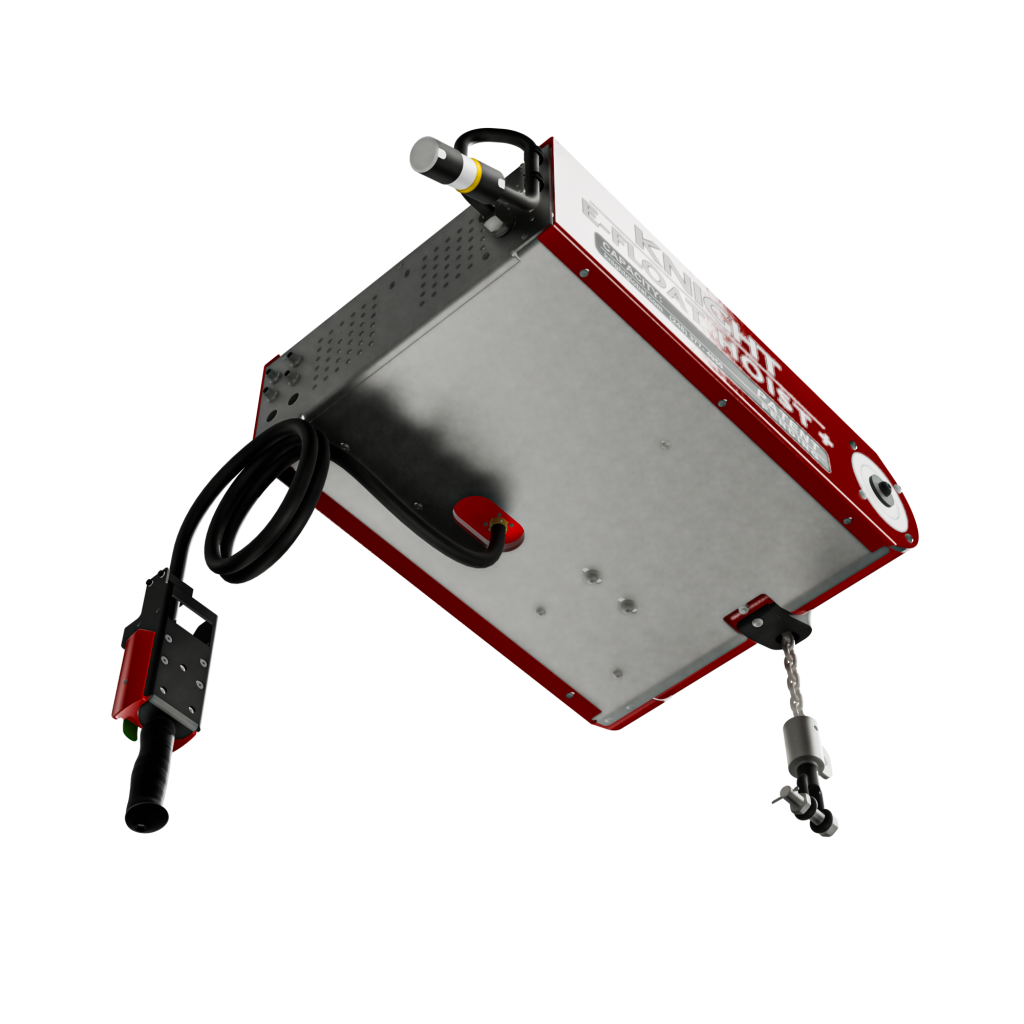

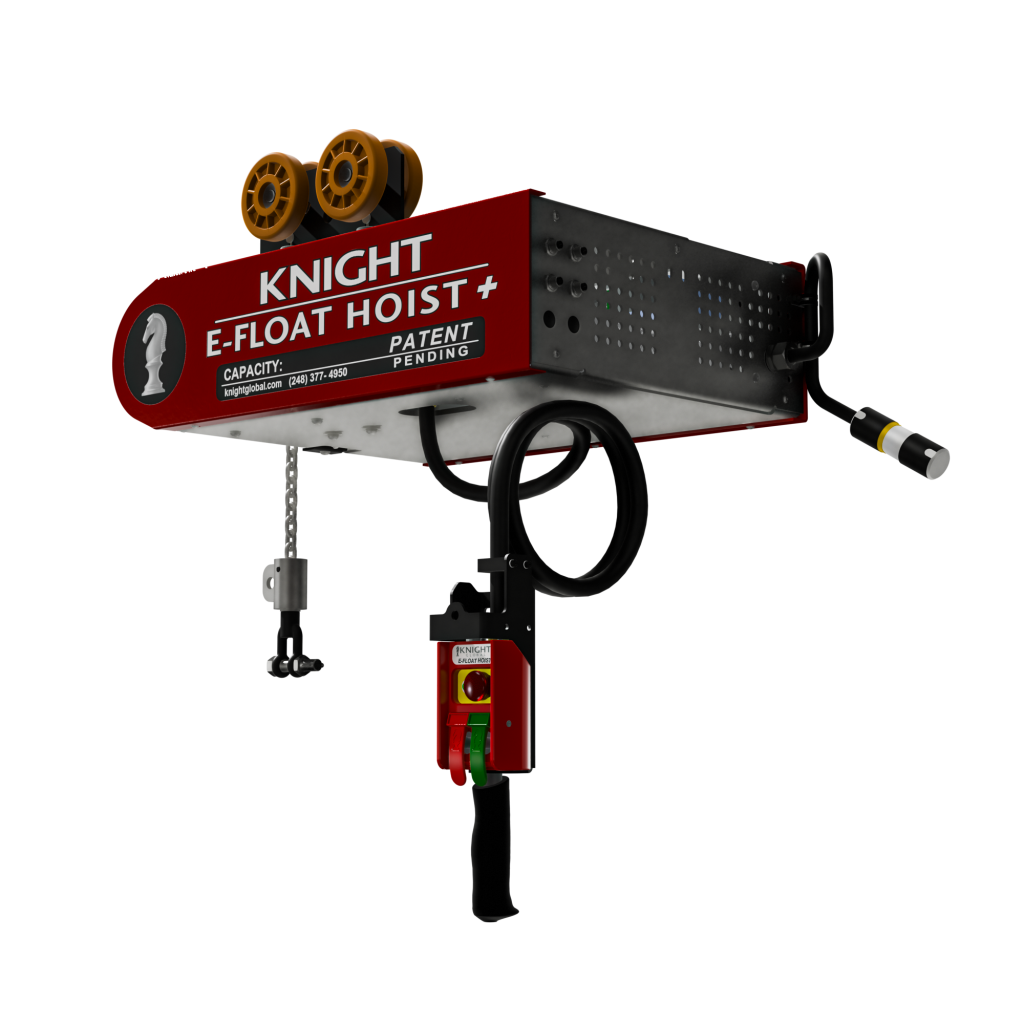

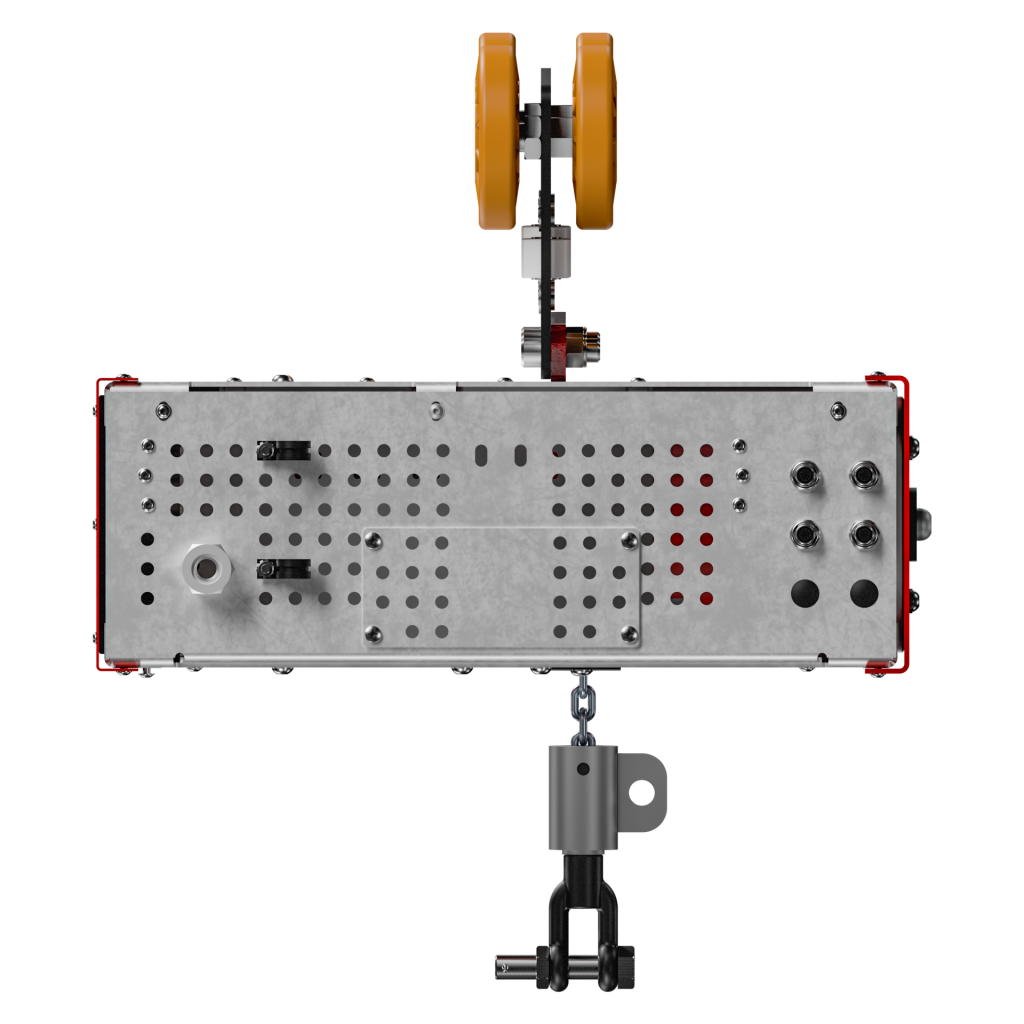

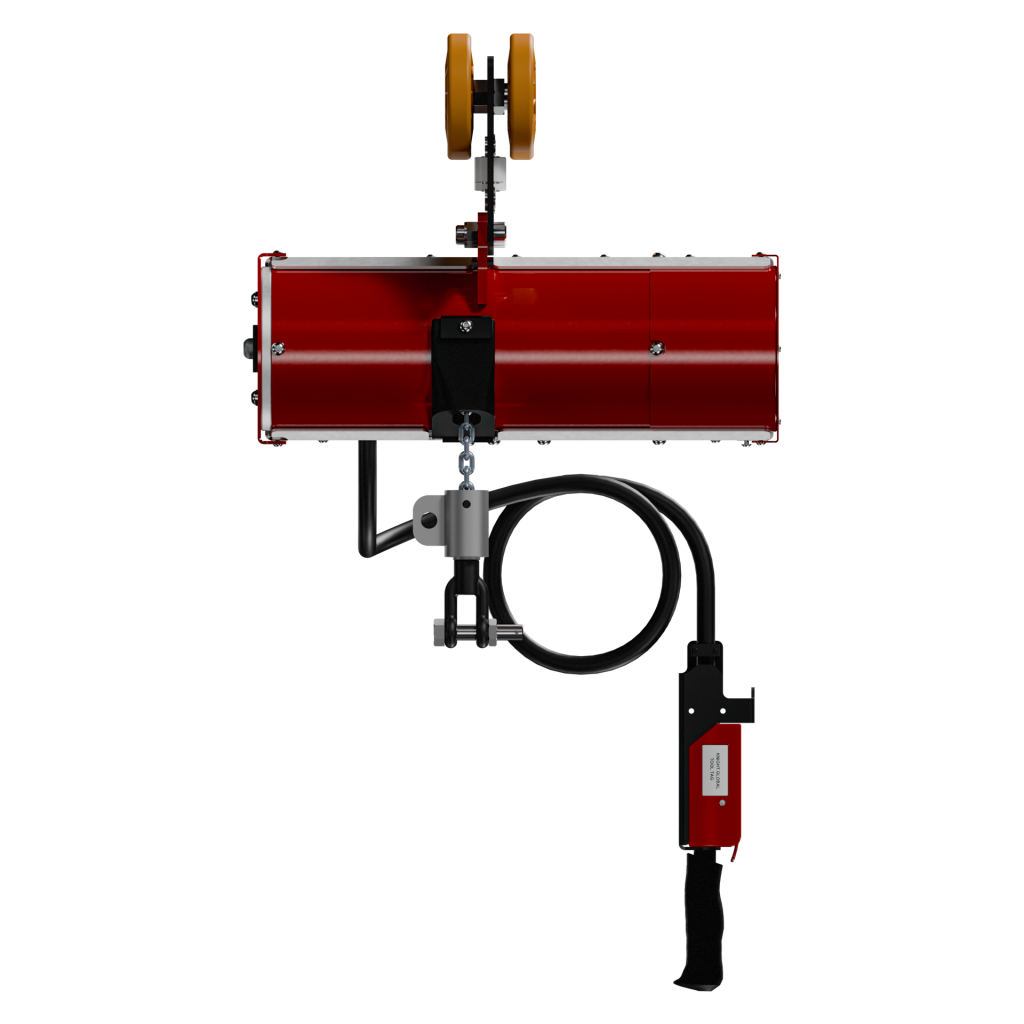

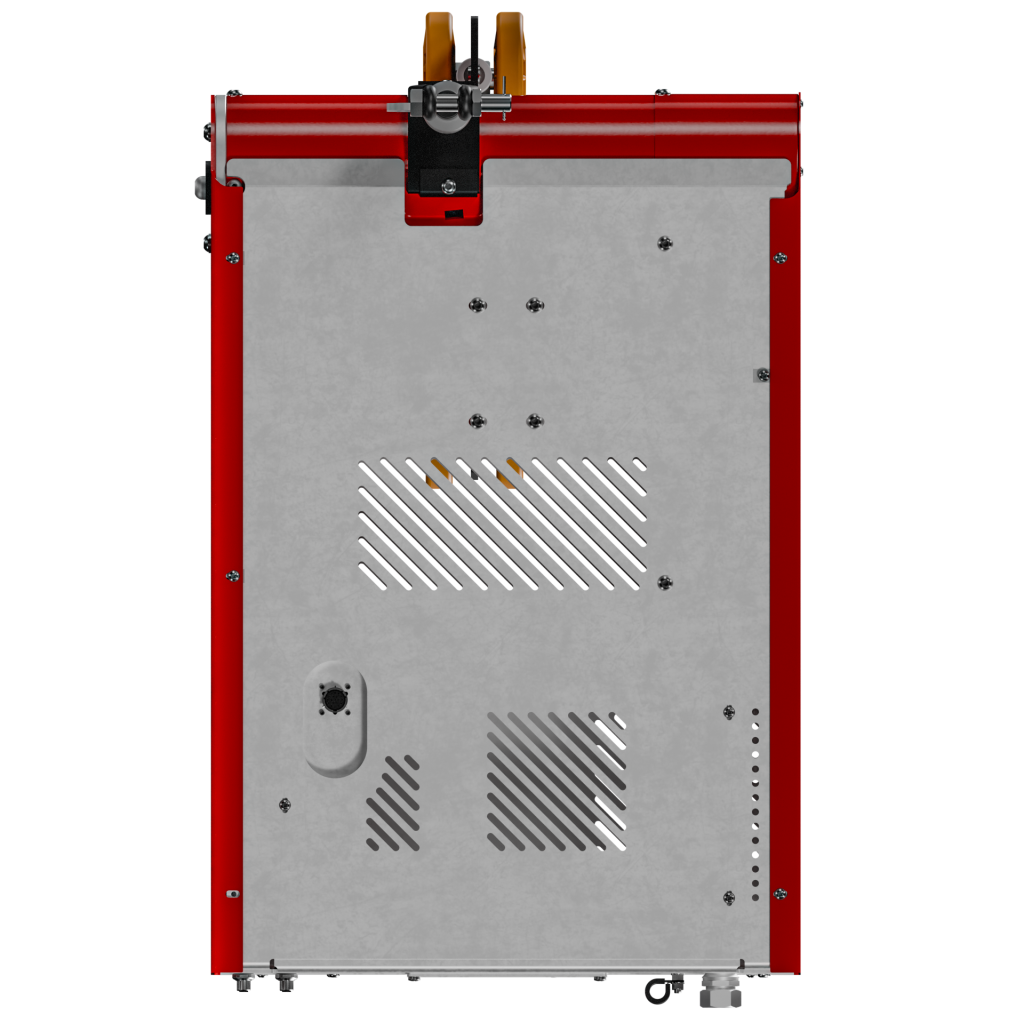

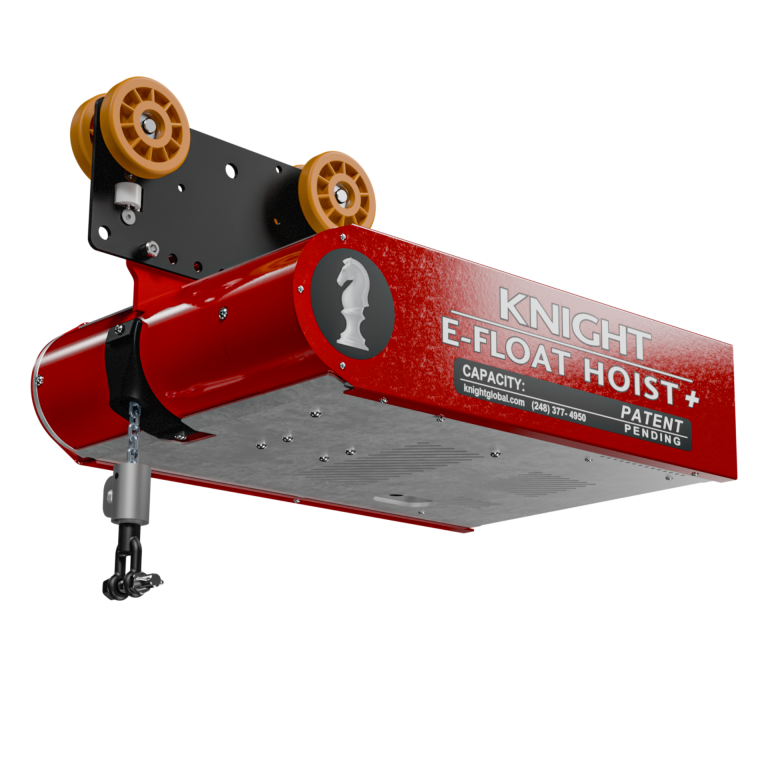

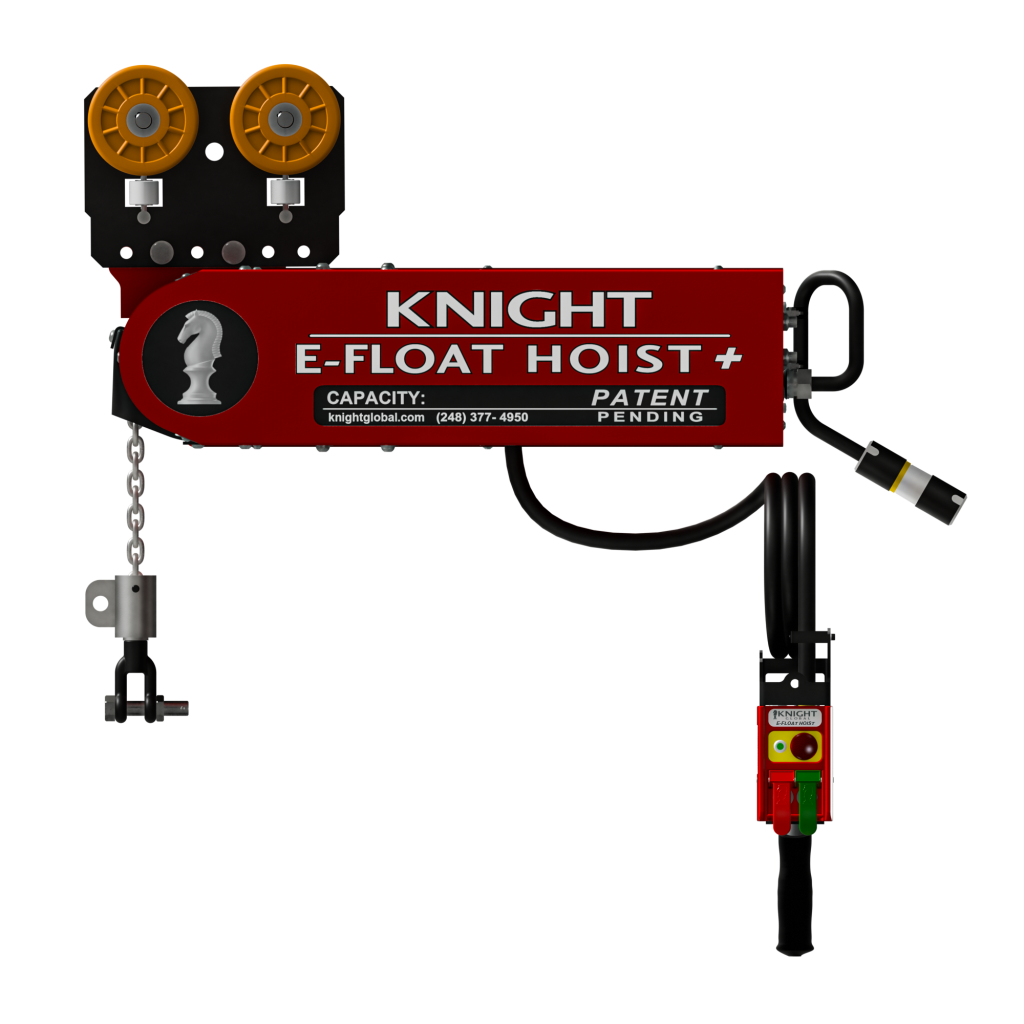

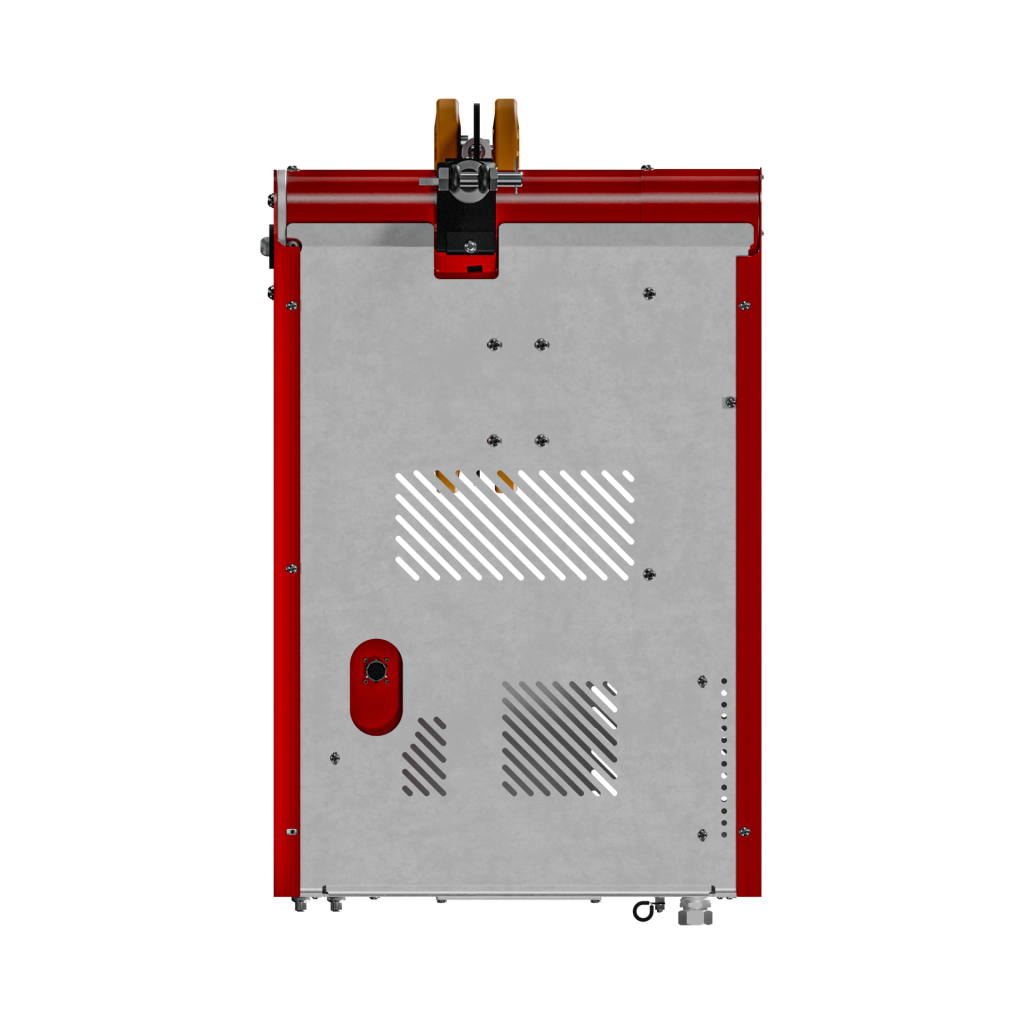

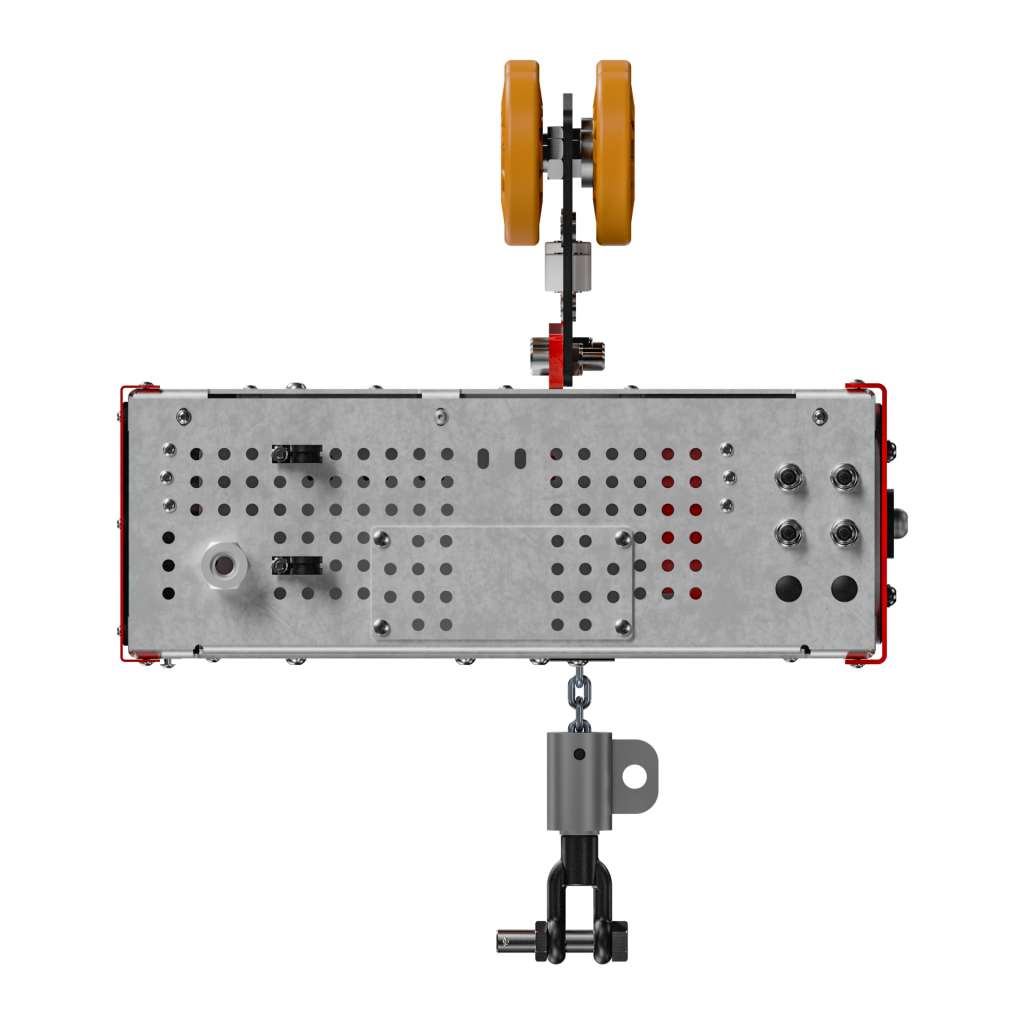

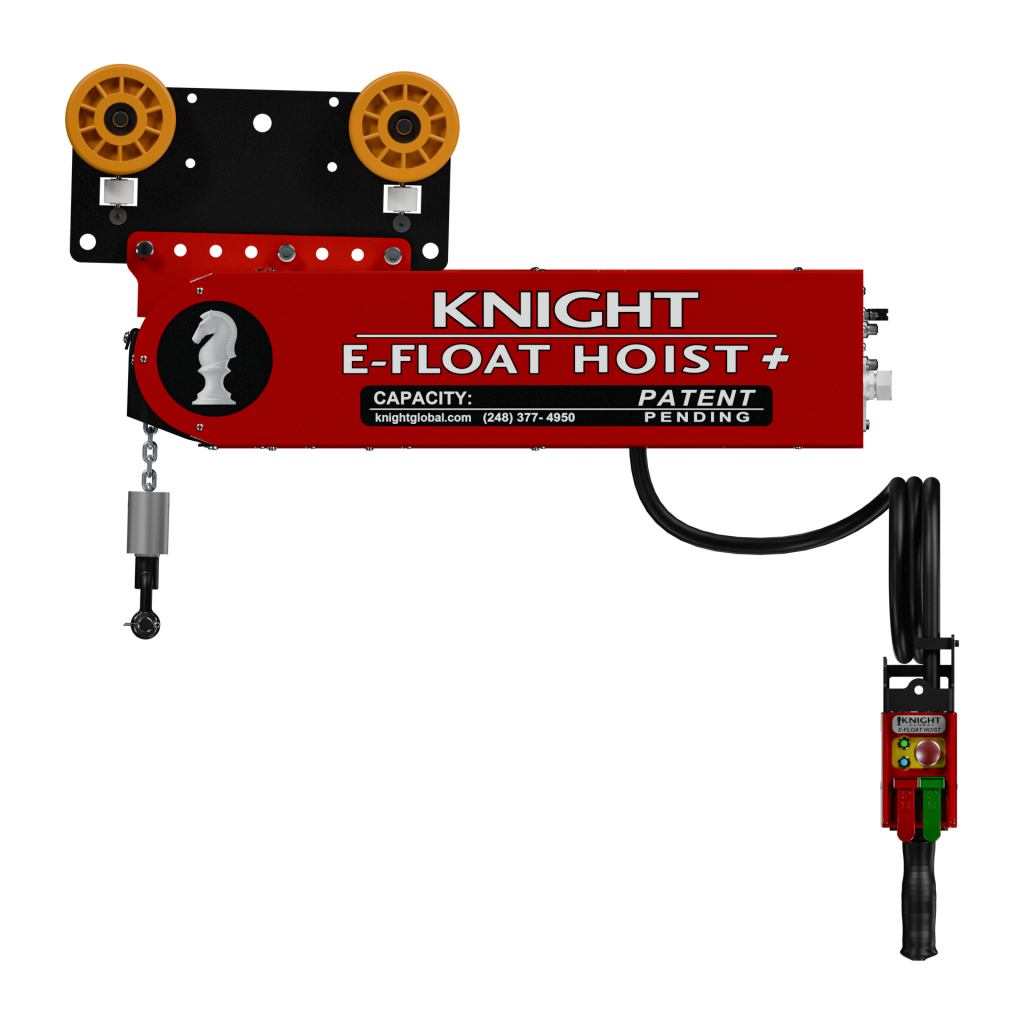

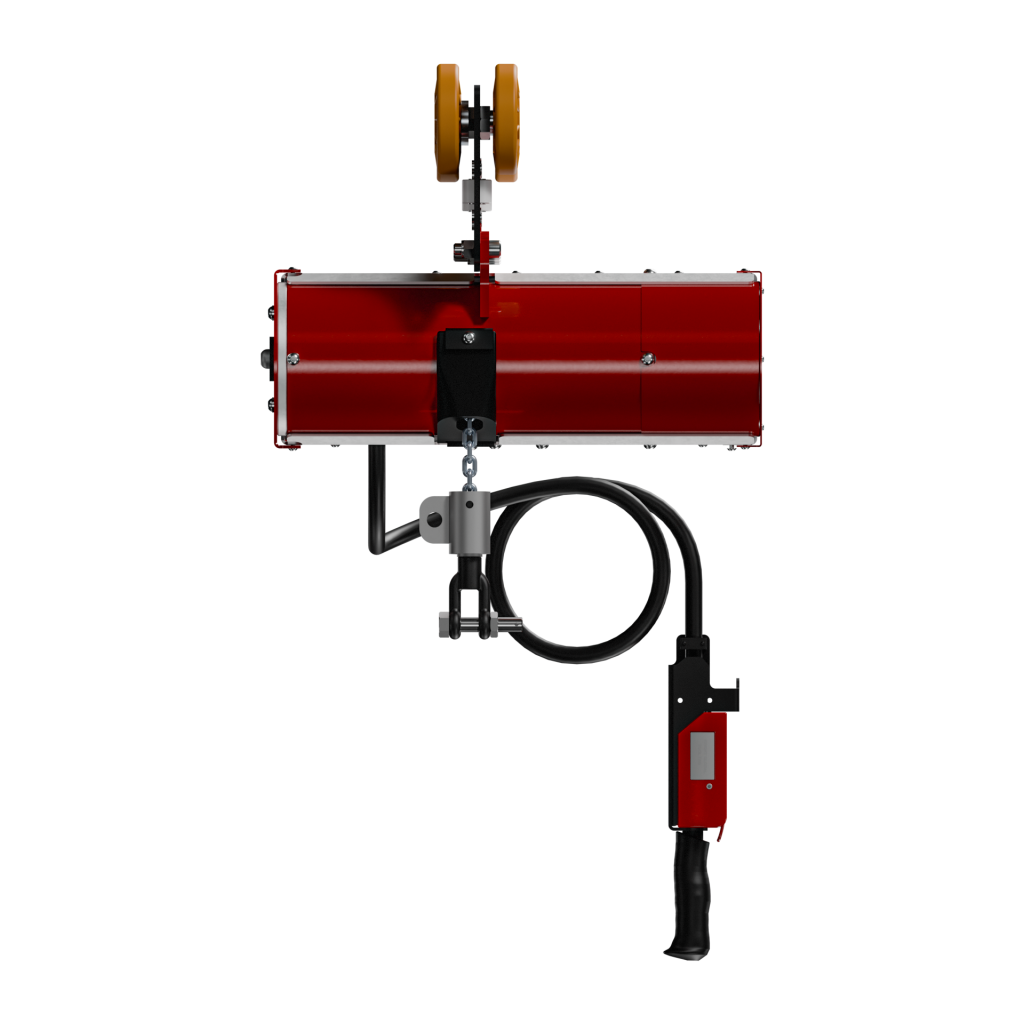

E-Float Hoist™
Knight’s E-Float Hoist™ is a high-performance servo hoist designed for flexible and efficient material handling. It includes Knight’s intuitive Float Mode without requiring an inline load cell. Its design is very low-profile, reducing stack-up and making it an ideal solution for environments where space is limited. The hoist supports a maximum lifting capacity of up to 300 lbs.
The hoist features a sealed gearbox that ensures durability and smooth operation. Its structure is modular, allowing for quick and easy access during inspections or maintenance, should it ever be required.
E-Float Hoists are available in multiple configurations, offering the choice to lift with link chain or wire rope, controlling the lift in float mode, or one of the several pendant handle options. Additionally, there is an option to order an E-Float Hoist+, which offers added features such as custom tooling integration, custom programming, and I/O capabilities.
Designed with both performance and user experience in mind, the E-Float Hoist’s advanced diagnostics and fault monitoring system ensure reliability and easy troubleshooting, making it a robust solution for demanding industrial applications.
E-Float Hoist™ Model Numbers:
KSBAS150-80-2401-002, KSBAP150-80-2401-002, KSBCS150-80-2401-002, KSBCP150-80-2401-002, KSBCS300-80-2401-002, KSBCP300-80-2401-002
To see examples of custom Servo applications designed by Knight, visit our Gallery.
General Information
+E-Float Hoist Includes:
Mechanical
- Low Profile – reduced stack-up height.
- Available with Cable or Chain.
- Standard Cable: includes Hook with Bail and Locking Gate attachment (BPA2020).
- Standard Chain: includes Safety Chain Shackle attachment (BPA2410).
- Holding Brake.
- Chain / Cable Travel Length – 80 in. Standard.
- Sealed Gearbox.
- Meets and exceeds industry standards.
- H5 Rated (Continuous Duty Cycle).
- Modular design for quick maintenance (including cable / chain replacement).
- CE and UL compliant.
- Speed – up to 241 fpm. [73.5 mpm] or 50 ips. [1.27 m/s].
- Maximum Lifting Capacity – up to 300 lbs. [136 kg.]
Software
- Auto-Balance Mode up to 300 lbs.
- STO – Safe Torque Off.
- Enhanced User Interface (UI).
- Ethernet Connection.
- Programming / Diagnostic Communication port.
- Speed Reduction Zones.
- Impact Limiting.
- Active Damping.
- Knight’s Unique “Float” Mode.
- Programmable Overload Capability.
- Advanced Diagnostics and Fault Monitoring.
Electrical
- Load Sensing.
- 240-Volt operation.
- LED Status Indicators: Green and Blue Lighted Push Buttons.
- LED Fault Indicators: Illuminated Run / Stop.
- Standard Pendants:
- Rocker-Style Pendant.
- Dual-Speed Pendant.
- Standard Electrical Cable: Electrical Straight Cable (KCA1041-10).
Optional Features
- Wireless Remote Pendant.
- Fixture Handle.
- Inline Handle.
- Balancer Chain Hook (BPA2113).
- Custom Programming for End Users’ Specific Needs.**
- Industry Standard 24 VDC, 2 AMP power available for custom tooling:**
- Clamps, Vacuum Cups, Switches, Proximity Lights, etc.
- I/O Capabilities:**
- (4) Analog Inputs / (4) Analog Outputs.
- (24) Sourcing Inputs or Outputs, configurable.
- (8) Dedicated Inputs / Outputs.
- Expansion I/O: Ethernet, unlimited.
**Features available with E-FLOAT HOIST+ only
*NOTE – Load Trolley NOT included, see below*
E-Float Hoist Specifications
+E-FLOAT HOIST
| Model Number* | Max. Capacity lbs. [kg] | Max. Speed fpm. [mpm] | |
| CABLE | KSBAS150-80-2401-002 | 150 lbs. [68 kg] | 241 fpm. [73.5 mpm] |
| KSBAP150-80-2401-002 | 150 lbs. [68 kg] | 241 fpm. [73.5 mpm] | |
| CHAIN | KSBCS150-80-2401-002 | 150 lbs. [68 kg] | 241 fpm. [73.5 mpm] |
| KSBCP150-80-2401-002 | 150 lbs. [68 kg] | 241 fpm. [73.5 mpm] | |
| KSBCS300-80-2401-002 | 300 lbs. [136 kg] | 241 fpm. [73.5 mpm] | |
| KSBCP300-80-2401-002 | 300 lbs. [136 kg] | 241 fpm. [73.5 mpm] |
