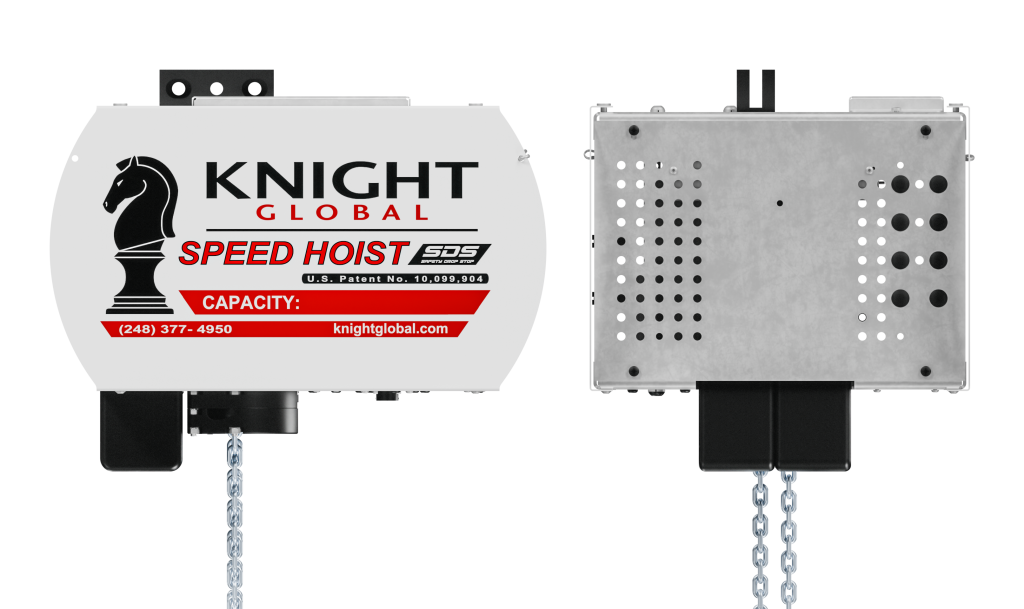

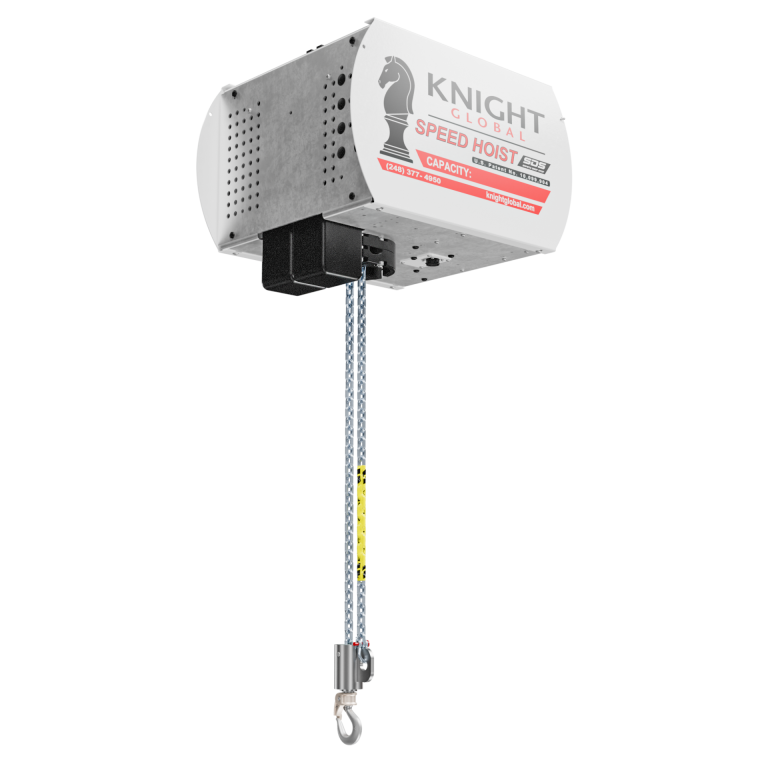

SDS Speed Hoist
Knight’s new SDS SPEED HOIST is an electric hoist containing many of the same features as the D-Series Servo Hoist including the patented “safety drop stop” dual chain system. Additionally, it utilizes a simple analog handle with an UP/DOWN thumb switch, ensuring that the hoist can be operated with minimal training. The handle provides the user with the ability to control graduated movement as well as acceleration and deceleration of the hoist.
An ethernet port on the handle allows for the use of the Knight Servo Studio software. With this, many user parameters can be setup for easy customization of height, slow down zones, and speed control of the hoist.
Additionally, the SPEED HOIST includes a drop-in graphite stick inside of the gear tower to ensure lubrication of the chains. Replacement sticks can be ordered separately.
The SPEED HOIST has capacities up to 1,000 lbs [453kg] and can travel as fast as 50 inches per second (unloaded). Combined with the “SDS” feature, Knight’s SPEED HOIST is the safest AND most efficient hoist in the industry.
*Specifications: “XXXX” = either 2401 or 4803 for 240VAC or 480VAC, respectively.
SDS Speed Hoist Series Model Numbers:
KSH200SS-2401-006, KSH400SS-2401-006, KSH750SS-2401-006, KSH1000SS-2401-006
KSH200SS-4803-006, KSH400SS-4803-006, KSH750SS-4803-006, KSH1000SS-4803-006
100 lbs Speed Hoist Model Number:
KSH100LS-1201-006
General Information
+Mechanical

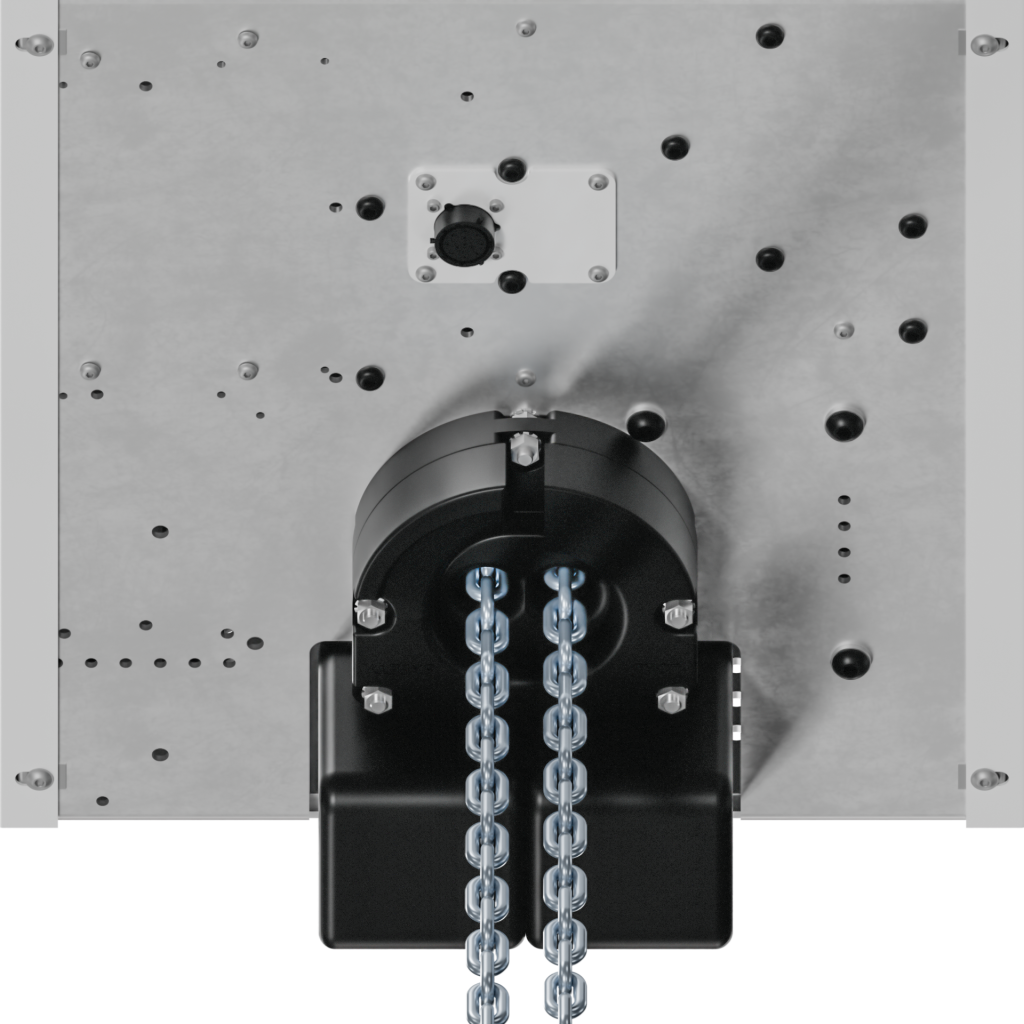

- Redundant chain design for safe operation:
- Load Chain: Carries the load.
- Safety Chain: Rides along for redundancy and safety.
- Knight’s Patented Chains, for longer life.
- Two buckets to keep chains separated.
- Chain Length, Unlimited (12-18 ft. Standard).
- Sealed Worm Style Gearbox.
- Speeds: Up to 241 ft. per min. [60mpm].
- Maximum Lifting Capacity: Up to 1000 lbs. [453kg]
- Lube Stick
Software
- Knight Servo Studio provides user optimization of hoist parameters.
- Custom setup of height, slow down zones, and speed control.
- Analog switch provides graduated movement and acceleration/deceleration.
- Ethernet Connection.
- Full analog speed control.
- Multi-step digital control.
Electrical
- Analog UP/DOWN thumb switch.
- 240VAC, Single Phase or 480VAC, 3 Phase input power.
- LED Fault Indicators: Run-Stop Button, Twist to Release functionality.
- Ethernet Port allows access to Knight Servo Studio for programming and diagnostics.

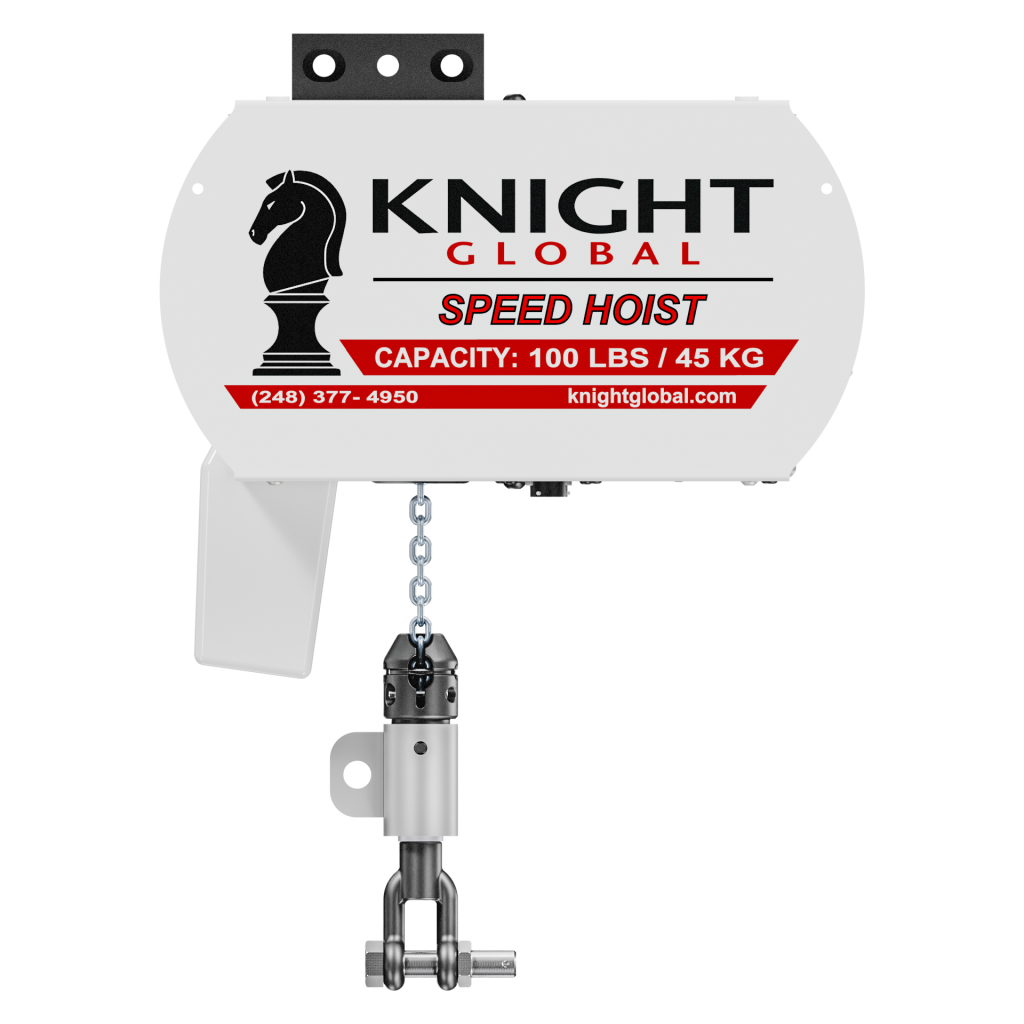

100 LBS Capacity Speed Hoist Information
+Mechanical
- Single Chain design.
- Knight’s Patented Chain, for longer life.
- Chain bucket.
- Chain Length: 12 ft. Standard.
- Sealed Worm Style Gearbox.
- Speeds: Up to 23 in. / sec
- Maximum Lifting Capacity: Up to 100 lbs. [45kg]
- Lube Stick
Software
- Knight Servo Studio provides user optimization of hoist parameters.
- Custom virtual limits and speed control.
- Analog switch provides graduated movement and acceleration/deceleration.
- Ethernet Connection.
- Full analog speed control.
- Multi-step digital control.
Electrical
- Analog UP/DOWN thumb switch.
- 120VAC, 15amp, 120V dedicated circuit.
- LED Fault Indicators: Run-Stop Button, Twist to Release functionality.
- Ethernet Port allows access to Knight Servo Studio for programming and diagnostics.
SDS Speed Hoist Specifications*
+SDS Speed Hoist Series
| Model Number* | Capacity lbs. [kg] | Max Speed fpm. [mpm] | Hoist Weight lbs. [kg] |
|---|---|---|---|
| KSH200SS-XXXX-006 | 200 lbs. [90kg] | 241 fpm. [73.5mpm] | 96 lbs. [43kg] |
| KSH400SS-XXXX-006 | 400 lbs. [181kg] | 120 fpm. [36.5mpm] | 96 lbs. [43kg] |
| KSH750SS-XXXX-006 | 750 lbs. [340kg] | 150 fpm. [45.7mpm] | 126 lbs. [57kg] |
| KSH1000SS-XXXX-006 | 1000 lbs. [453kg] | 105 fpm. [32mpm] | 126 lbs. [57kg] |
100 LBS Speed Hoist Specifications
+100 LBS Capacity Speed Hoist
| Model Number | Capacity lbs. [kg] | Max Speed | Voltage | Hoist Weight lbs. [kg] |
|---|---|---|---|---|
| KSH100LS-1201-006 | 100 lbs. [45kg] | 23 in./sec | 120VAC | 55 lbs. [25kg] |
Controls
+
Features

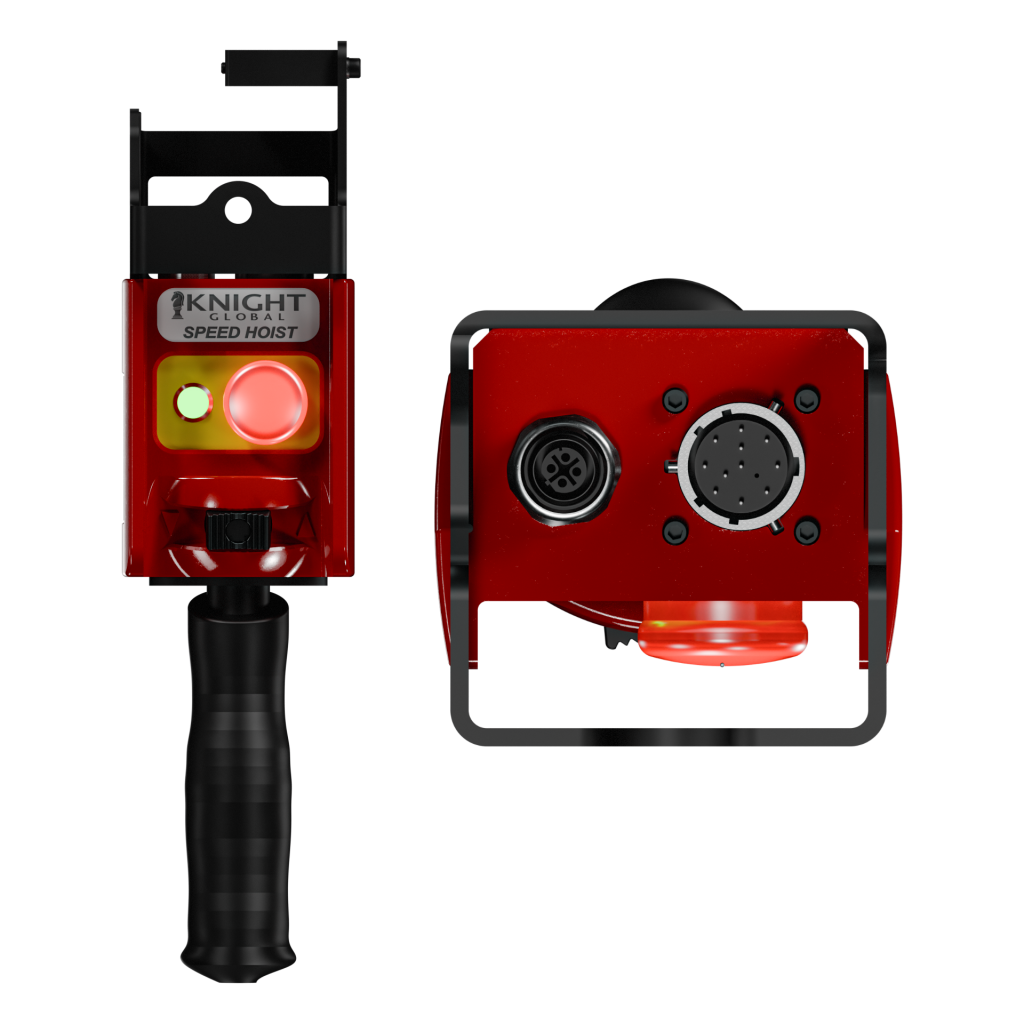

- Standard Analog Remote Handle for the SDS Speed Hoist.
- UP/DOWN rocker switch.
- Run/Stop button
- Indicator light
- Lightweight, 3D printed casing
- Ethernet port for easy setup of parameters
Features
- Optional Lever Style Analog Remote Handle for the SDS Speed Hoist.
- UP/DOWN thumb levers.
- Run/Stop button
- Indicator light
- Lightweight, 3D printed casing
- Ethernet port for easy setup of parameters
Features
- Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
- Used with the KSAA1110 or KSAA1119 Variable Speed Pendants.
- Operating Voltage: 24VDC up to 2 amps.
- Sealed packaging to protect wiring, slip ring and rotate assembly.
- Capacities up to 400 lbs. [181.4kg]
- (1) 12-Pin M23 Male Receptacle
- (1) 12-Pin M23 Female Receptacle
- Includes KSAA1004 Shackle.
KSAA1068: - Up to (7) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands.
KSAA1069: - (1) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands.
Brochure
Features
- Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
- Used with the KSAA1110 or KSAA1119 Variable Speed Pendants.
- Operating Voltage: 24VDC up to 2 amps.
- Sealed packaging to protect wiring, slip ring and rotate assembly.
- Capacities up to 400 lbs. [181kg]
- (1) 12-Pin M23 Male Receptacle
- (1) 12-Pin M23 Female Receptacle
- Includes KSAA1004 Shackle.
Brochure
Features
- Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
- Used with the KSAA1110 or KSAA1119 Variable Speed Pendants.
- Operating Voltage: 24VDC up to 2 amps.
- Sealed packaging to protect wiring, slip ring and rotate assembly.
- Capacities up to 1000 lbs. [453kg]
- (1) 12-Pin M23 Male Receptacle
- (1) 12-Pin M23 Female Receptacle
- Includes KSAA1004 Shackle.
KSAA1070: - Up to (7) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands.
KSAA1071: - (1) pneumatic passages (1/8″ NPT ports) to accommodate a variety of function commands.
Brochure
Features
- Can prevent airlines, electrical cables and SDS chains from winding or tangling up which greatly minimizes downtime and equipment damage.
- Used with the KSAA1110 or KSAA1119 Variable Speed Pendants.
- Operating Voltage: 24VDC up to 2 amps.
- Sealed packaging to protect wiring, slip ring and rotate assembly.
- Capacities up to 1000 lbs. [181kg]
- (1) 12-Pin M23 Male Receptacle
- (1) 12-Pin M23 Female Receptacle
- Includes KSAA1004 Shackle.
Brochure
Videos
+*Knight Rotary Union – Electric / Pneumatic
*KSAA1003 Chain Wear Gauge
*SDS Speed Hoist
Accessories
General
+
Features
- Connects 4mm chain to the SDS Speed Hoist
- (Carbon Steel) Crosby® Bullard Hook w/ Self Closing Gate.
- Quick and Secure Connection
- 360 degree rotation.
Features
- Connects 4mm chain to the SDS Speed Hoist
- (Carbon Steel) Crosby® Bullard Hook w/ Self Closing Gate.
- Quick and Secure Connection
- 360 degree rotation.
Features
- KDSA1010 (4mm) for 200 lbs-500 lbs capacity SDS Hoists.
- KDSA1011 (5mm) for 350 lbs-1000 lbs capacity SDS Hoists.
- (2) Chain End Stop Assemblies.
- (2) Interface Links to assist in installing the chain.
KDSA1010
- Servo Hoist Model: KSH250S – 500S Series, Speed Hoist & D-Series 200-400lbs.
- (2) 4mm Steel Grade (80), Carburized, Heat Treated chain and electro galvanized blue chromated.
- 12mm Pitch Chains.
- 4mm Chain Pull Cord.
- Chain Length: 18 ft. [548.6cm] standard.
- Maximum Working Load: 500 lbs. [226kg].
KDSA1011
- Servo Hoist Model: KSH350S, 750S, 1000S Series, Speed Hoist & D-series 750-1000lbs.
- (2) 5mm Steel Grade (8), Carburized, Heat Treated chain and electro galvanized blue chromated.
- 15mm Pitch Chains.
- 5mm Chain Pull Cord.
- Chain Length: 12 ft. [365.7cm] standard.
- Maximum Working Load: 1,000 lbs [453kg].
Features
- Steel Construction
- Measures Knight 4mm & 5mm Galvanized Chain Wear.
Spec Sheet
Features
- 4140 Steel Shackle Housing.
- Secures fixtures or loads in-line with chain.
- Shackle attaches to 16mm 4140 steel shaft (Not Included).
- Shackle is secured with (2) steel dowels.
- 5/8 in. grade 8 shoulder bolt.
- Throat Opening: 7/8 in. X 2-1/8 in.
CAD Drawings
Spec Sheet
Features
- Fits models: KSH250S, KSH350S, KSH500S, KSH750S, and KSH1000S and Speed Hoists.
- Attaches to Knight Servo Hoist Load Trolleys.
- Pneumatic Servo Hoist to Rail Braking System.
- Stroke Size: 0.75 in. [19.1mm].
- Bore Pneumatic Cylinder: 2.00 in. [50.8kg].
- Parking brake is also a drag brake when regulator is attached.
- Replaceable Brake Pads.
- Mounts to front or rear of Servo Hoist.
CAD Drawings
Spec Sheet
Load Trolleys
+
Features
- Fiberglass filled High Impact Nylon Wheels.
- Side Guide Rollers with integrated bearings.
- Double-shielded wheel bearings keep dirt out, and do not require lubrication.
- Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.
CAD Drawings
Spec Sheet
Features
- Fiberglass filled High Impact Nylon Wheels.
- Side Guide Rollers with integrated bearings.
- Double-shielded wheel bearings keep dirt out, and do not require lubrication.
- Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.
CAD Drawings
Spec Sheet
Features
- Fiberglass filled High Impact Nylon Wheels.
- Side Guide Rollers with integrated bearings.
- Double-shielded wheel bearings keep dirt out, and do not require lubrication.
- Min/ Max Continuous Service Temp at 100% load: 20 degs. F to 248 degs. F.
CAD Drawings
Spec Sheet
Electrical Cables
+
Features
- Electrical Straight Cables are made exclusively for Knight Global.
- Connects a separate control handle pendant to Servo Hoists.
- 19-Pin Military Bayonet Style Connectors.
- 90 Degree Male to Female Connectors.
- Optional Coiled Cable configuration.
Features
- 8-Pin Micro DC Single Key.
- PVC Gray.
- 90° Male / Female Connectors.
- 22 AWG, 4A, 300V Cord.
- Available with Straight or Right Angle Connector Ends.
Features
- 4-Pin Micro DC Single Key.
- PVC Gray.
- Male-In-Line/ Female Connectors.
- 22 AWG, 4A, 300V Cord.
- Available with Straight or Right Angle Connector Ends.
Disconnects
+
Features
Features
- Used with: KSH250S, KSH350S, KSH500S, KSH750S and KSH1000S Servo Hoists.
- Flange disconnect.
- Transformer Disconnect, 3KVA.
- Enclosure Size: 21 in. X 20 in. X 10 in.
- 480VAC – 240VAC, FLA 6.25.
- 15A Primary Fusing.
- 15A Secondary Fusing.
- Enclosures are mounted at a ergonomically correct height.
- Optional Dual Enclosure Configuration. (Front and Back)
- Stand not included.
Features
- Used with: KSHXY, KSHXZ, KSHTCDM and KSHXYZ Servo Tractors and Hoists.
- Flange disconnect.
- Transformer Disconnect, 5KVA.
- Enclosure Size: 30 in. X 25 in. X 12 in.
- 480VAC – 240VAC, FLA 10.4.
- 25A Primary Fusing.
- 25A Secondary Fusing.
- Enclosures are mounted at a ergonomically correct height.
- Optional Dual Enclosure Configuration. (Front and Back)
- Stand not included.
Features
- Provides mounting surface for enclosures in open workstation environments.
- Stand allows for multiple adjustment heights.
- Electrical Disconnect Enclosure Box Not Included.
- Air Prep option for the back side.
- Floor Mounted.
- Bolted Construction M10X1.5 w/ Nylock nuts.
- Various enclosures mount to stand.
- Wall mounted enclosures mount to stand.
- Custom finishes are available. (Blue is Standard).
- Foot Print: 19x21x62.
- Optional Pneumatic Lockout Mounting Plate.
- Optional Dual Enclosure Configuration. (Front and Back).
Features
- Provides mounting surface for enclosures in open workstation environments.
- Stand allows for multiple adjustment heights.
- Electrical Disconnect Enclosure Box Not Included.
- Air Prep option for the back side.
- Floor Mounted.
- Bolted Construction M10X1.5 w/ Nylock nuts.
- Various enclosures mount to stand.
- Wall mounted enclosures mount to stand.
- Custom finishes are available. (Blue is Standard).
- Foot Print: 30x21x62.
- Floor Mounting Hole Pattern: 24×18.
- Optional Pneumatic Lockout Mounting Plate.
- Optional Dual Enclosure Configuration. (Front and Back).
Features
- Provides mounting surface for enclosures in open workstation environments.
- Stand allows for multiple adjustment heights.
- Power Distribution Panel (PDP) Not Included.
- Air Prep option for the back side.
- Floor Mounted.
- Bolted Construction M10X1.5 w/ Nylock nuts.
- Custom finishes are available. (Blue is Standard).
- Foot Print: 56x21x66
- Optional Pneumatic Lockout Mounting Plate.
- Optional Dual Enclosure Configuration. (Front and Back).
