Light Duty Articulating Pneumatic Arm

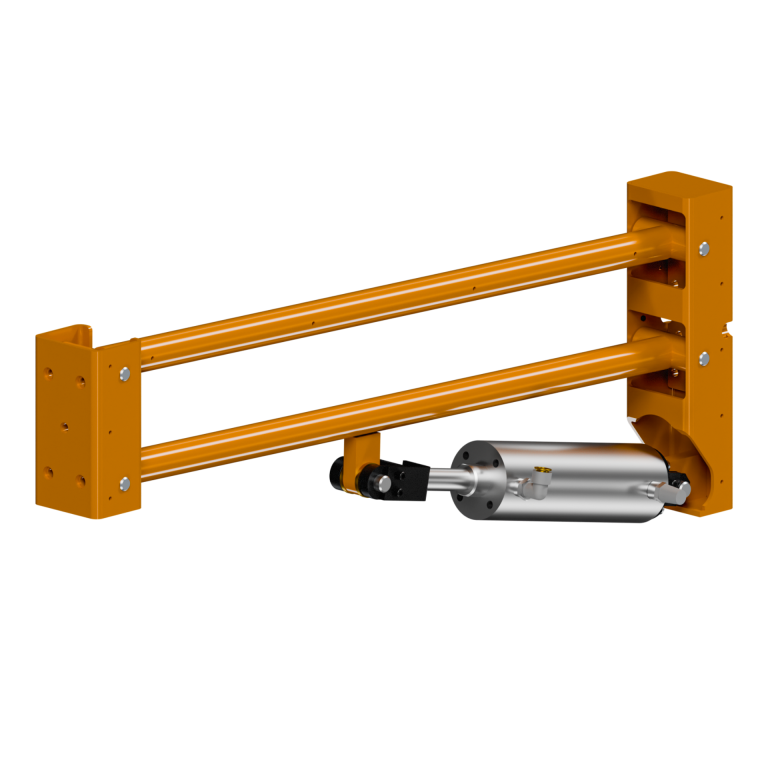

Knight’s AAA4000 Light Duty Articulating Pneumatic Arm is a parallelogram arm used to lift, rotate, balance, and move product from conveyors, dunnage, assembly lines and more. It uses a single cylinder in the rear of the arm to achieve greater lifting capacity, and therefore reduces fatigue by absorbing torque reaction and helping the operator lift and manipulate the product effortlessly.
The Light Duty Articulating Pneumatic Arm travels inside Knight’s RAD4110, RAD6110, or RAD7510 Aluminum Series Rail Systems on the “X”, “Y”, and “Z” axis and features a variety of control configurations. Linear Mounted Arms run in Knight’s LRD9500 Series Rail.
For more information on our Light Duty Articulating Arm contact a Knight Global representative.
To see examples of custom Pneumatic Arms designed by Knight, visit our Gallery.
General Information
+Features
- Travels inside Knight’s RAD4110, RAD6110, or RAD7510 Series Rail.
- Lifts, Rotates, Balances, and Manipulates product with minimal effort.
- Variety of Control Configurations.
- Overhead Carriage Sizes: 24 in. [609mm] or 36 in. [914mm].
- Max. Arm Length: Up to 36 in. [914mm].
- Max. Extension Boom Length: Up to 36in. [914mm].
- Max. Vertical Arm Travel: Up to 36 in. [914mm].
- Max. Vertical Mast Height: Up to 9 ft. [914mm].
- Max. Pedestal Height: Up to 6 ft. [1828mm].
- Max. Lifting/Balance Capacity:
– 24″ arm can lift 80 lbs [36kg] at a min. of 60 psi.
– 36″ arm can lift 65 lbs [29kg] at a min. of 60 psi.
Benefits
- Overhead Mounted, Floor Mounted, or Linear Rail Mounted.
- Floor mounted eliminates need for overhead system.
- Adjustable Arm Heights.
- Reduces Operator Fatigue.
- Absorbs Torque Reaction.
- Optional Pivot Brake.
- Optional Parking Brake.
- Optional Clutch Brake.
