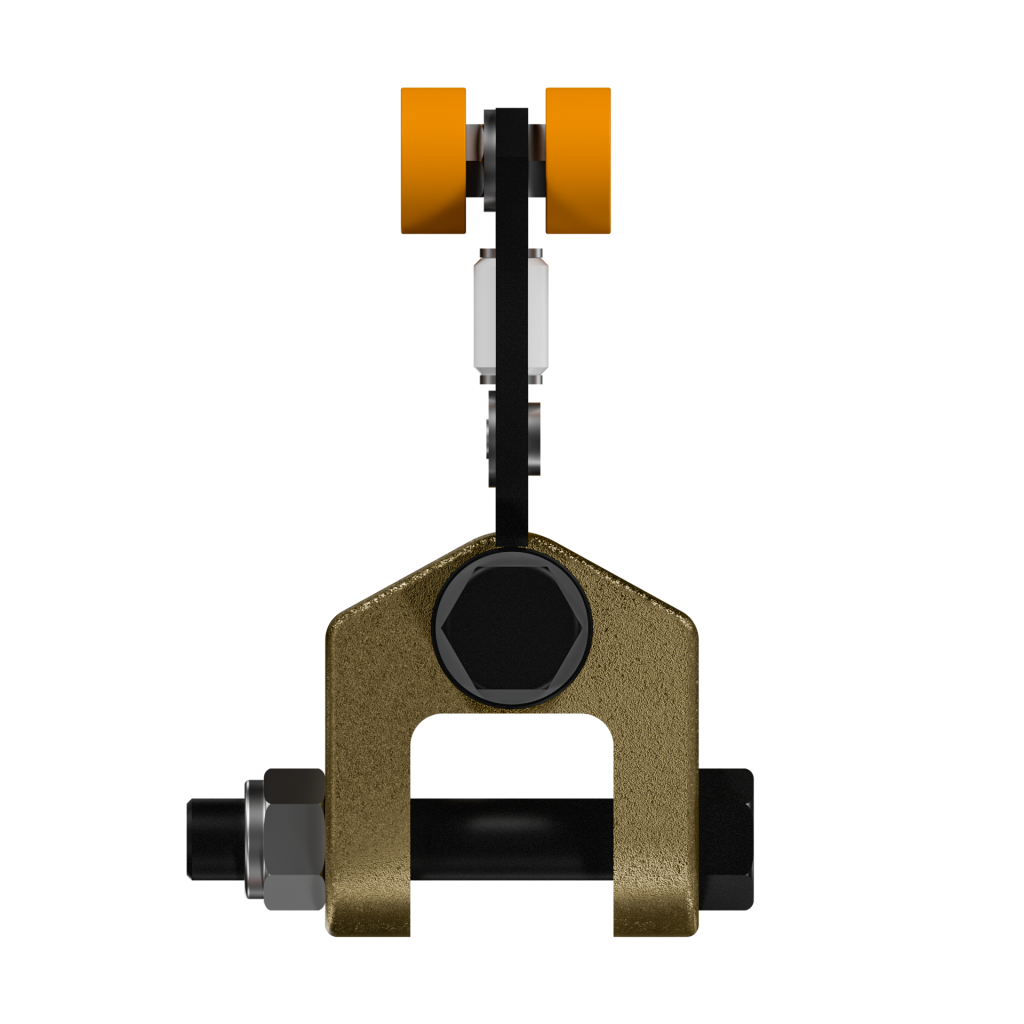

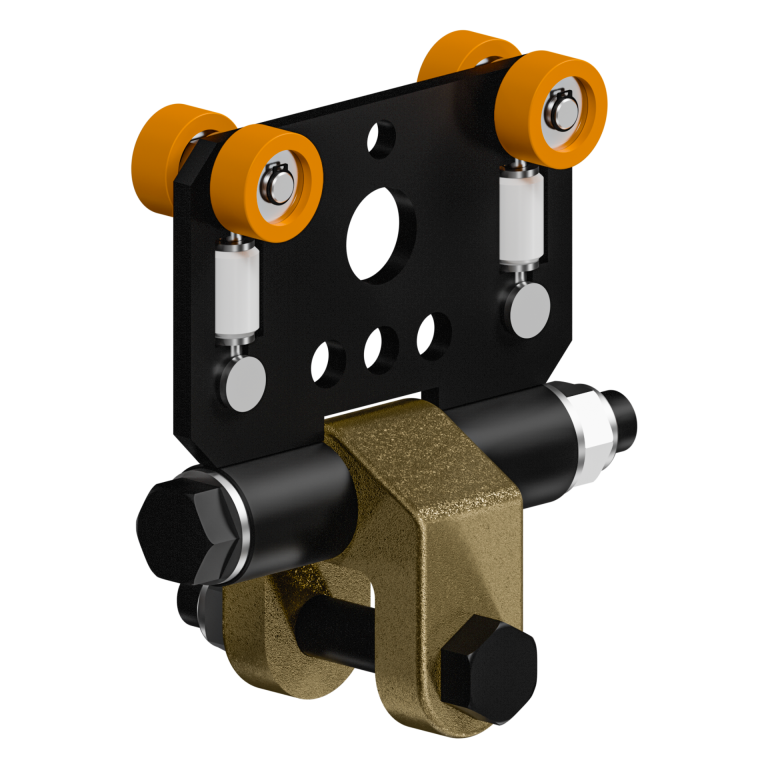

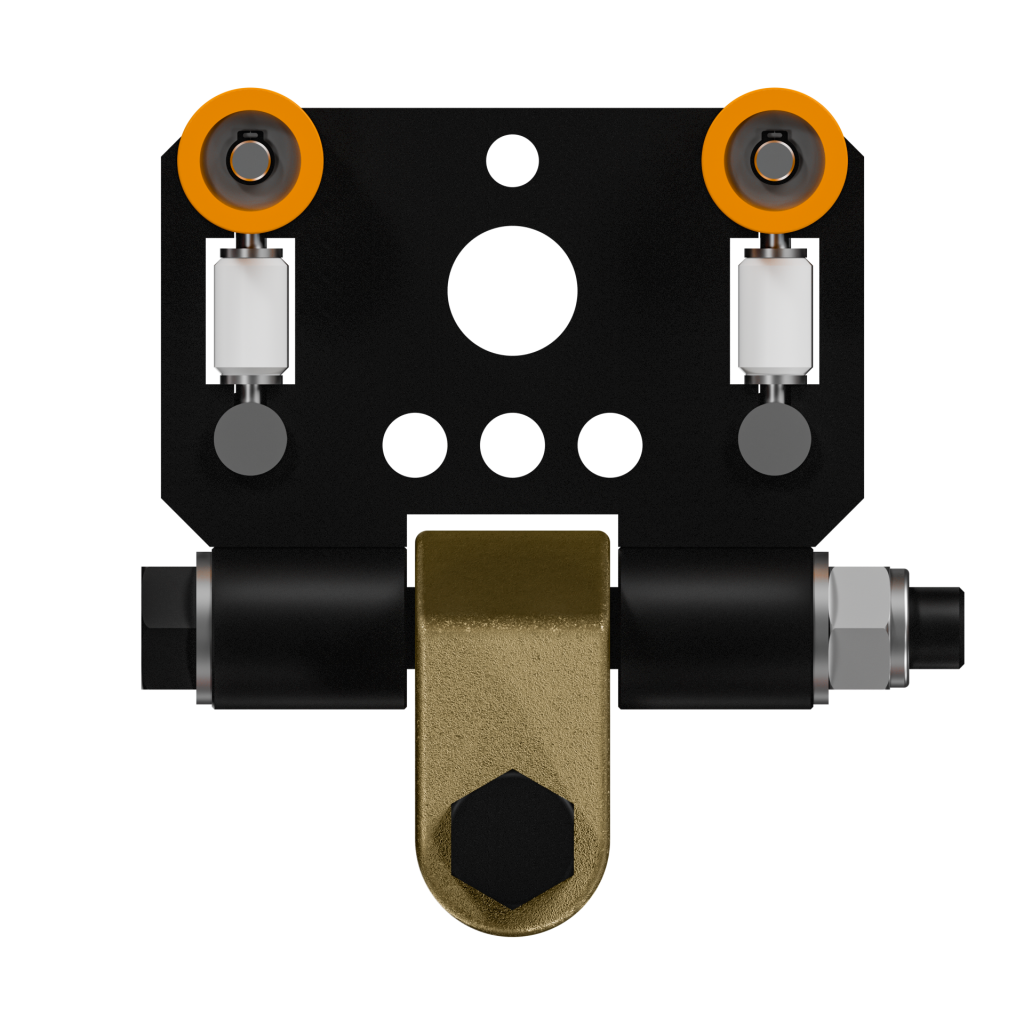

Load Trolley with Yoke

Knight Global’s TRT2009 transfers loads along the horizontal axis and suspends Knight Air Balancers and Fixtures and Festooning from Knight’s TR2000 Series Aluminum Rail Systems. Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

---

part number

TRT2009

features

• Fiberglass filled High Impact Nylon Wheels.
• Side Guide Rollers with integrated bearings.
• Double-Shielded bearings on the wheels keep dirt out, and does not require lubrication.
• Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

max capacity

550 lbs. [250kg]

weight

5.5 lbs [2.50kg]
