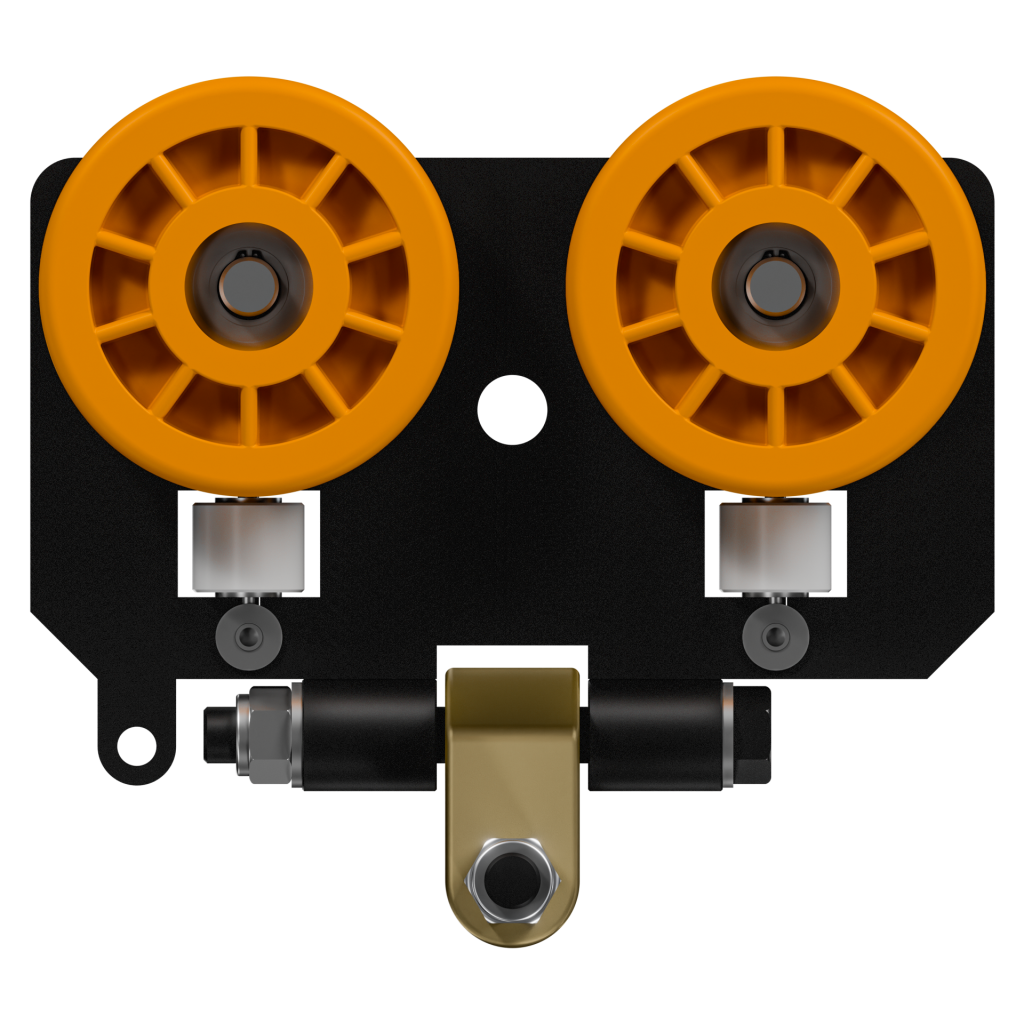

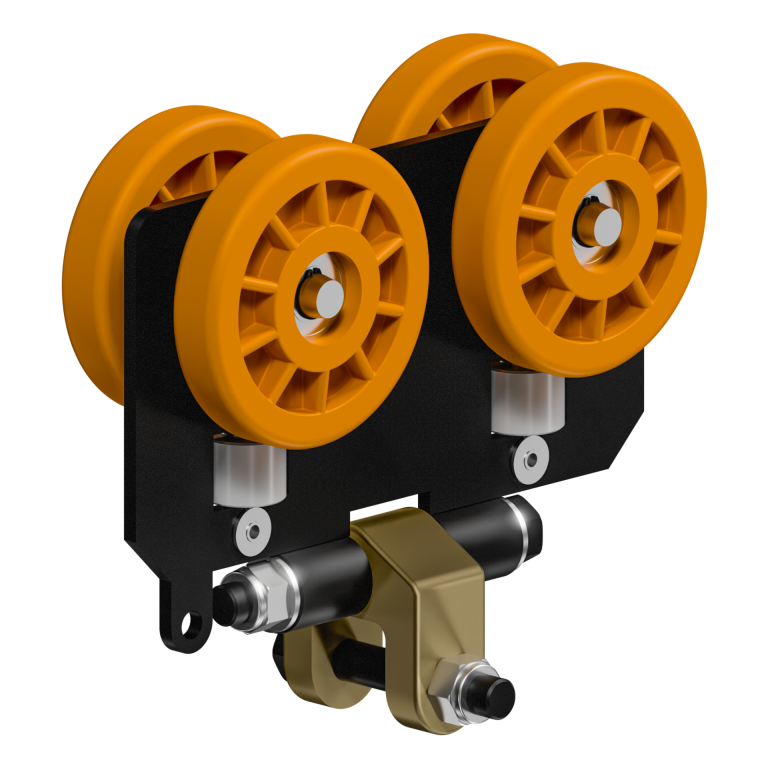

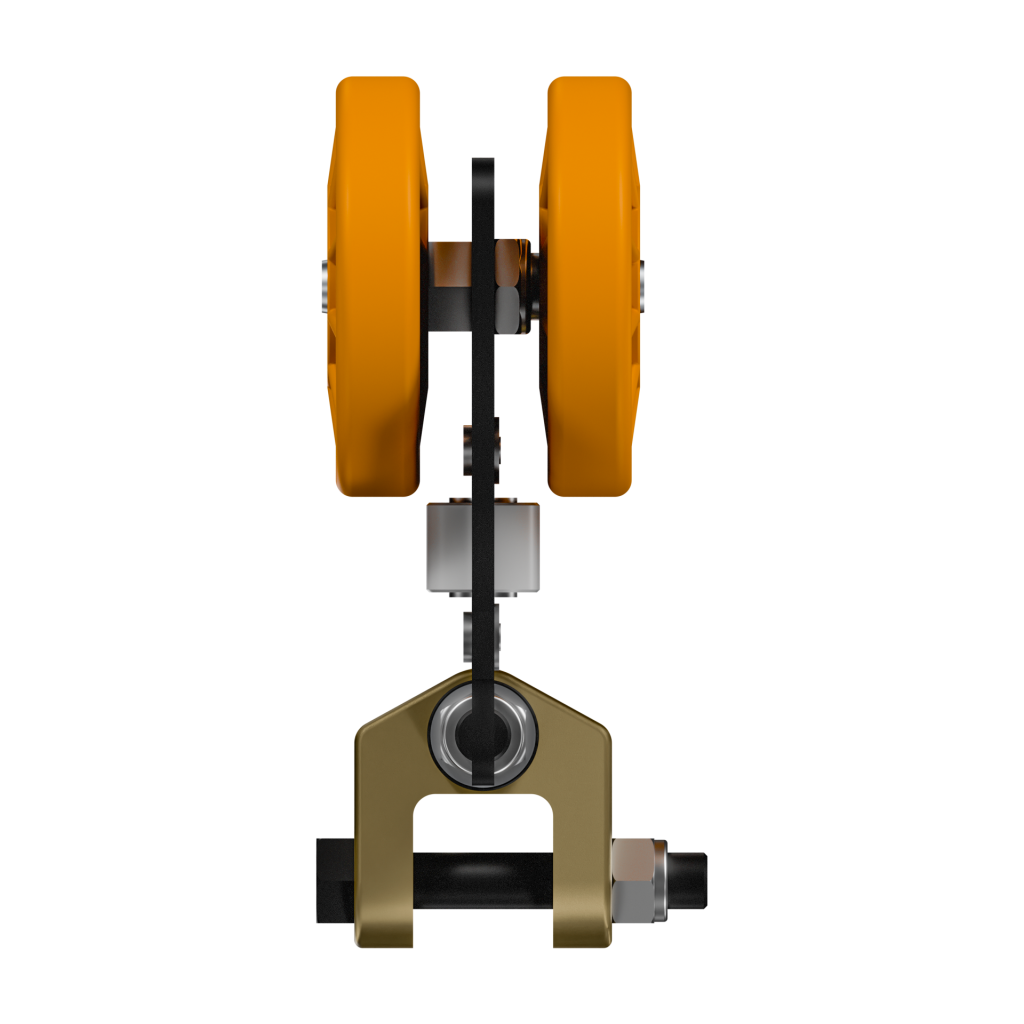

Low Profile Load Trolley with Yoke

Knight Global’s MRTA7786 transfers loads along the horizontal axis and suspends Knight’s Articulating Arm Carriages and Fixtures from Knight’s RAD7510 Series Aluminum Rail Systems.

---

part number

MRTA7786

features

• Fiberglass filled High Impact Nylon Wheels.
• Side Guide Rollers with integrated bearings.
• Double-shielded wheel bearings keep dirt out, and do not require lubrication.
• Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

max capacity

3000 lbs. [1360kg]

weight

10.5 lbs [4.76kg]

jib type

MJBA2300
MJBA2600
MJBA2700
