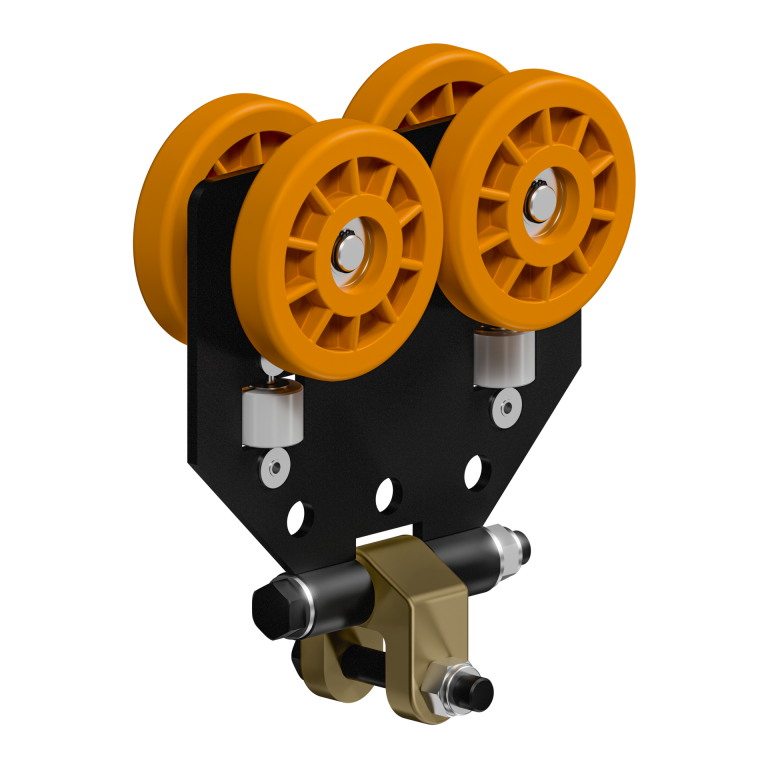

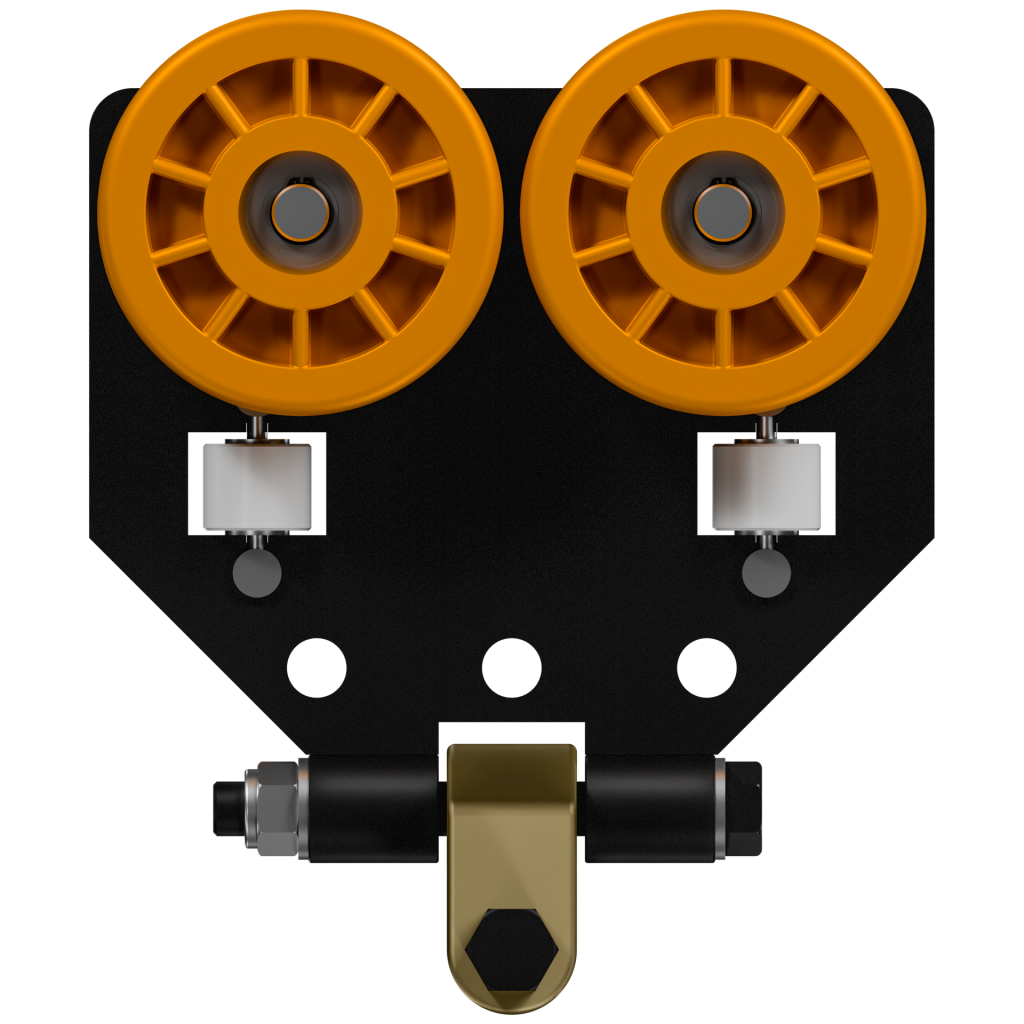

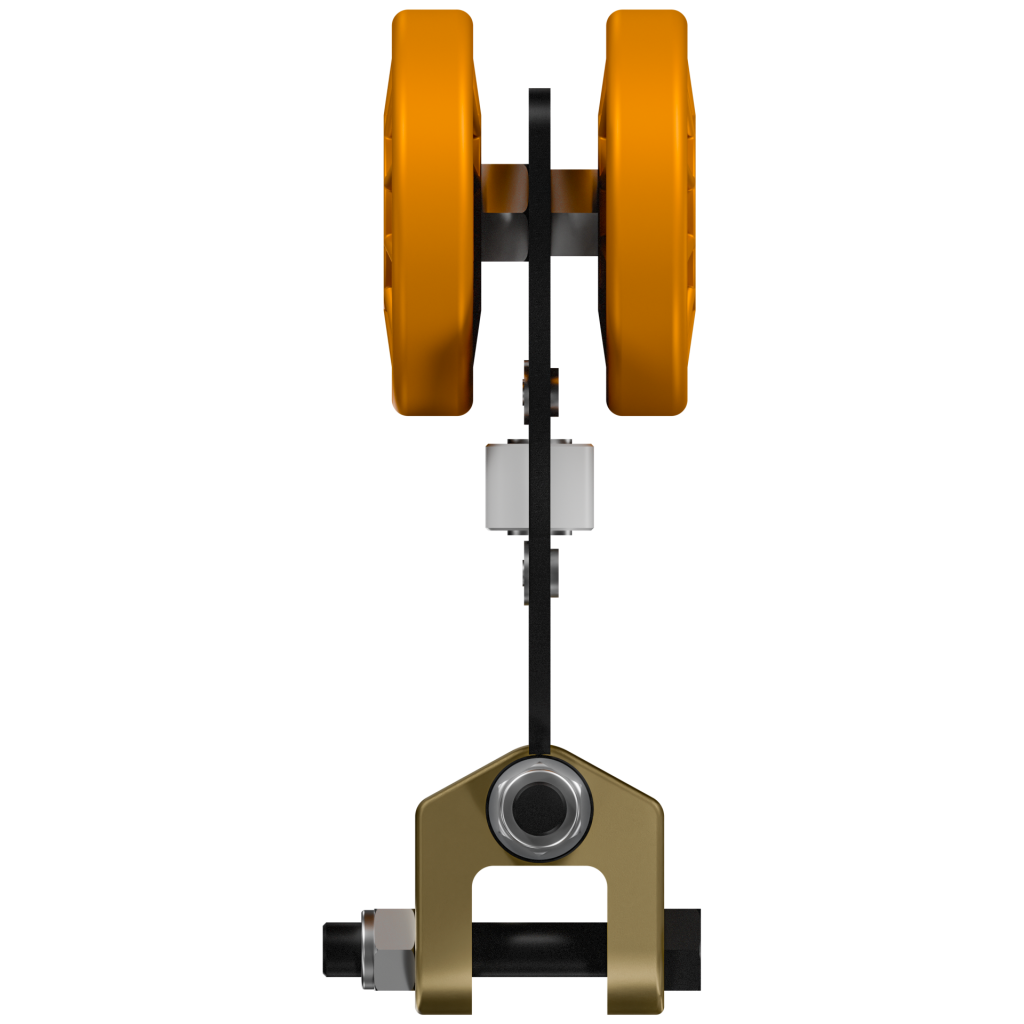

Load Trolley with Yoke

The MRTA7723 Load Trolley with Yoke transfers loads along the horizontal axis and suspends Knight arm carriages and fixtures from Knight’s RAD7510 series overhead aluminum rail systems.

part number

MRTA7723

features

  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.



max capacity

3,000 lbs. [1,360kg]

weight

12.1 lbs. [5.49kg]

Resources

CAD Drawings

+

MRTA7723 Download MRTA7723

Spec Sheet

+

MRTA7723 Load Trolley Download MRTA7723 Load Trolley
