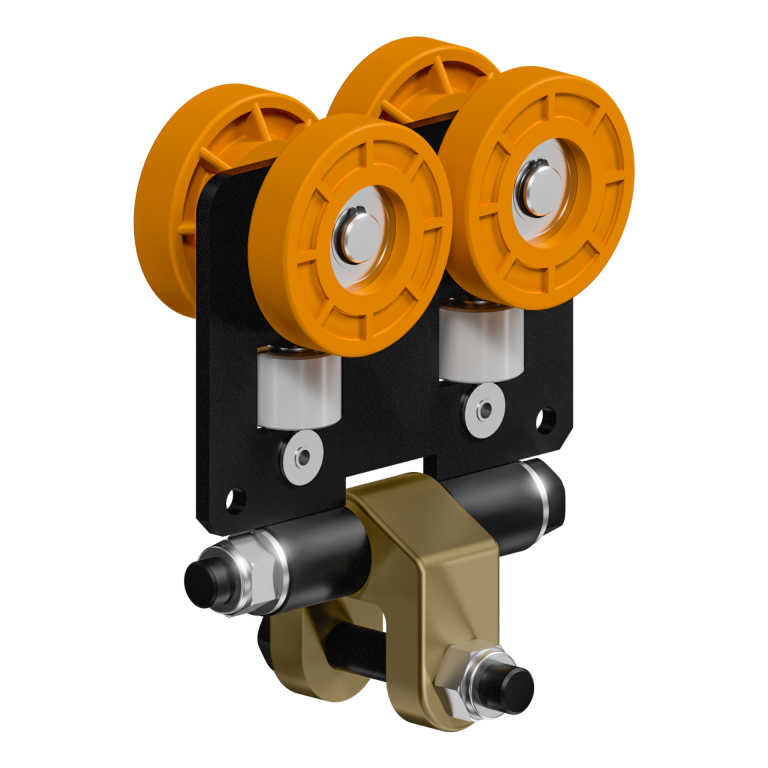

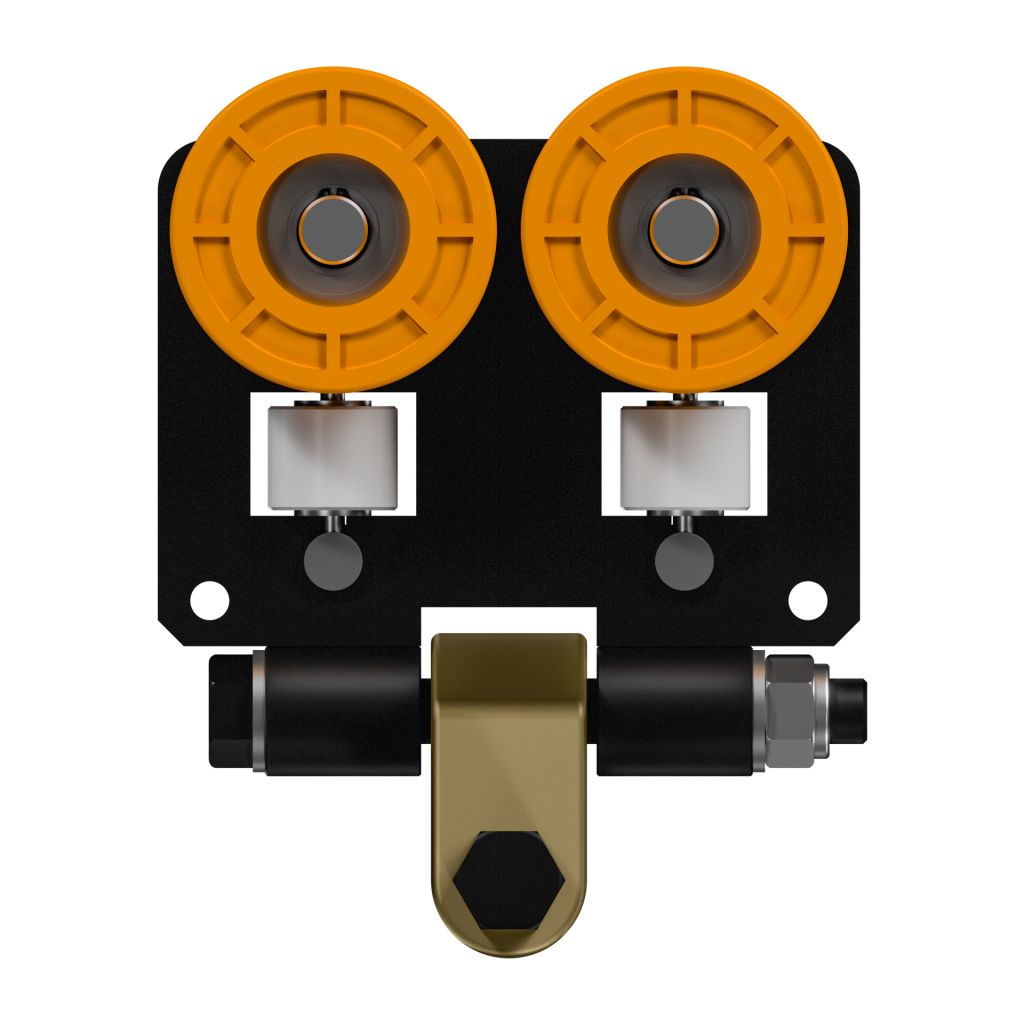

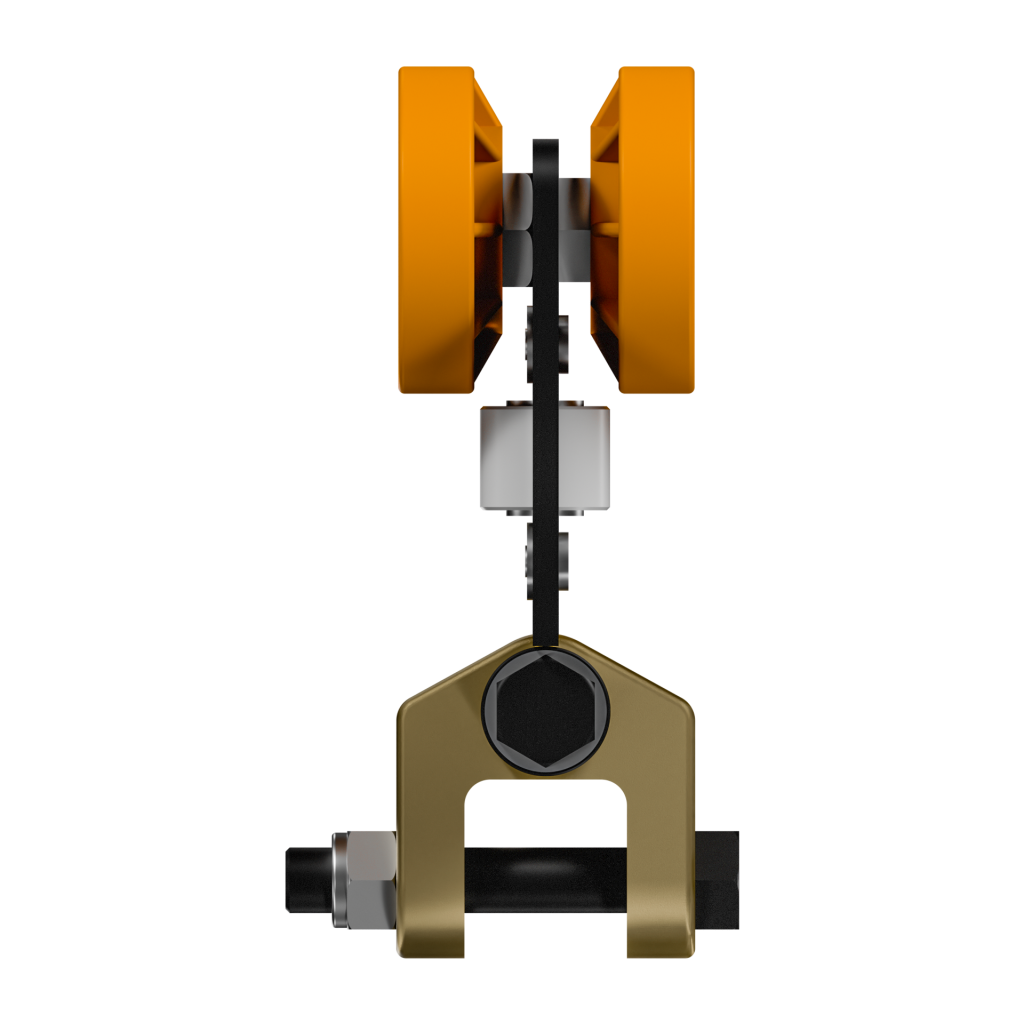

Low Profile Load Trolley with Yoke

The MRTA6123 Low Profile Load Trolley with Yoke transfers loads along the horizontal axis and suspends Knight arm carriages and fixtures from Knight’s RAD6110 Series Overhead Aluminum Rail Systems.


part number

MRTA6123

features

  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

max capacity

1,600 lbs. [725kg]

weight

8.3 lbs. [3.76kg]
