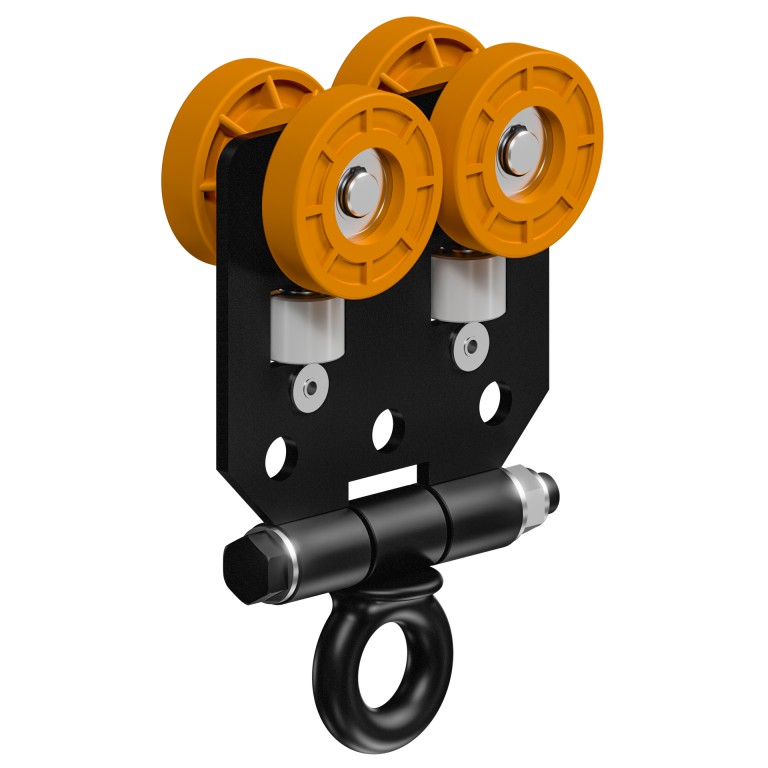

Load Trolley with Eye Hook

Knight Global’s MRTA6121 transfers loads along the horizontal axis and suspends Knight arm carriages from Knight’s RAD6110 series overhead aluminum rail systems. Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

part number

MRTA6121

features

Fiberglass filled High Impact Nylon Wheels.
Eye Hook Inside Diameter: 1.25 in.[31.8mm].
Eye Hook Outer Diameter: 1.97 in. [50mm].
Side Guide Rollers with integrated bearings.
Double-Shielded bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

max capacity

1,600 lbs. [725kg].

weight

6.9 lbs. [3.12kg].
