Wireless Remote Control

The KCA1004, KCA1005 and KCA1006 Wireless Remotes by Enrange FLEX® are used to control Knight Servo Systems where wireless control is preferred. They are set-up and programmed to simulate the control functionality of a remote pendant control handle. Each wireless system consists of (1) one transmitter handset and (1) one receiver unit. Other standard-equipped accessories include a transmitter belt, spare transmitter power key, clear vinyl pouch and “AA” alkaline batteries.

The Wireless Remotes are available with up to (8) eight programmable operation/ function push-buttons (As Shown). Float, Lift, UP and DOWN are standard push-button configurations. Wireless signal distance is good up to 900 ft. [300m].

Full Compliance: All systems are fully compliant with the FCC Part-15 Rules, European Directives (Safety, EMC, R&TTE, Machinery), and Industry Canada Specifications (IC).

(Previously EBA1054)

part number

KCA1004 / KCA1005 / KCA1006


  • Wireless Remote.
  • Wireless Signal: Up to 900 ft. [300m].
  • Ultra-Durable Nylon and Fiberglass Composite Enclosures.
  • Up to (8) Eight Function/ Operation Buttons.
  • (62) User-Programmable Channels.
  • Automatic Channel Scanning Receiver.
  • 32bit CRC and Hamming Codes.
  • Reliable Push-Buttons. – Rated for more than one million press cycles.
  • Power Consumption: (2) “AA” Batteries, 100 hours plus.
  • Durable Construction.
  • Compact and Lightweight.
  • Custom Push-Button Labels.
  • Improves Material Handling Operations.
  • Low Power Consumption.

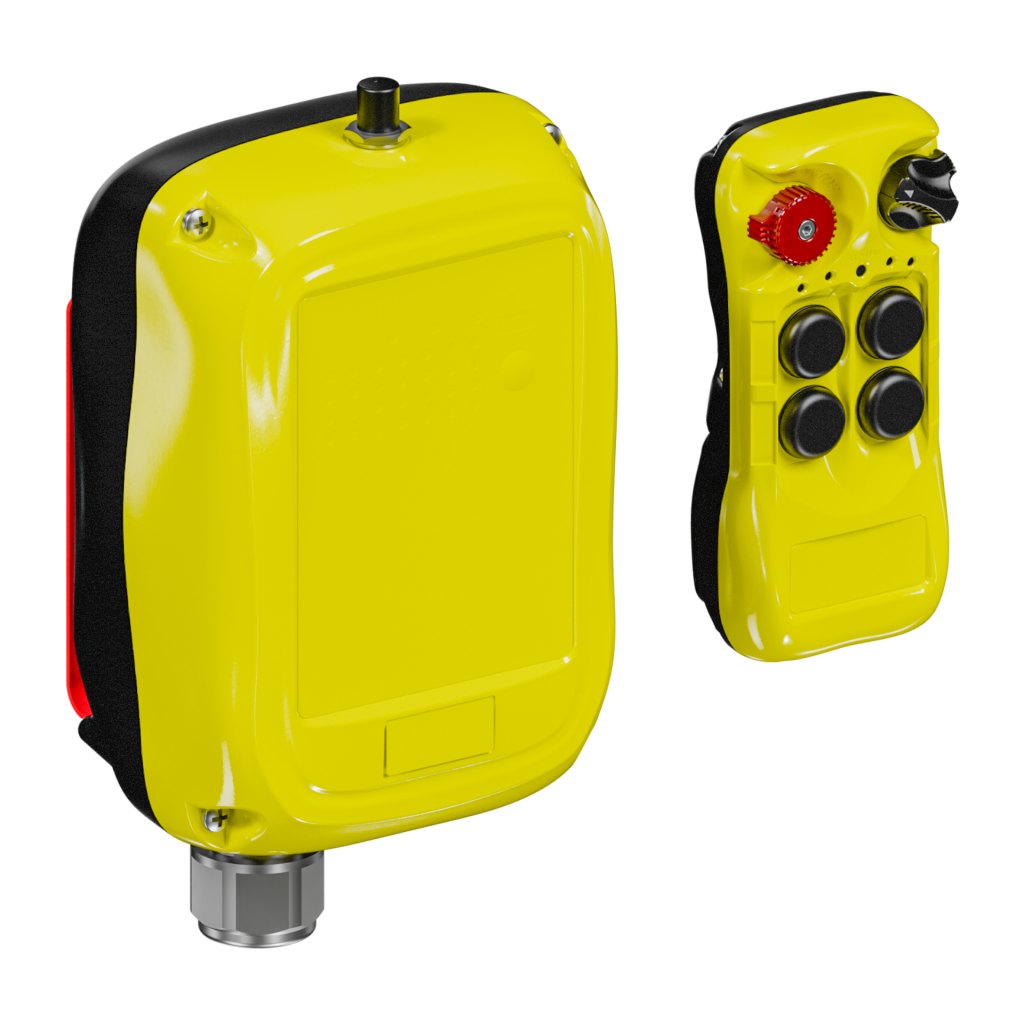

  • KCA1004 – (4) Button.

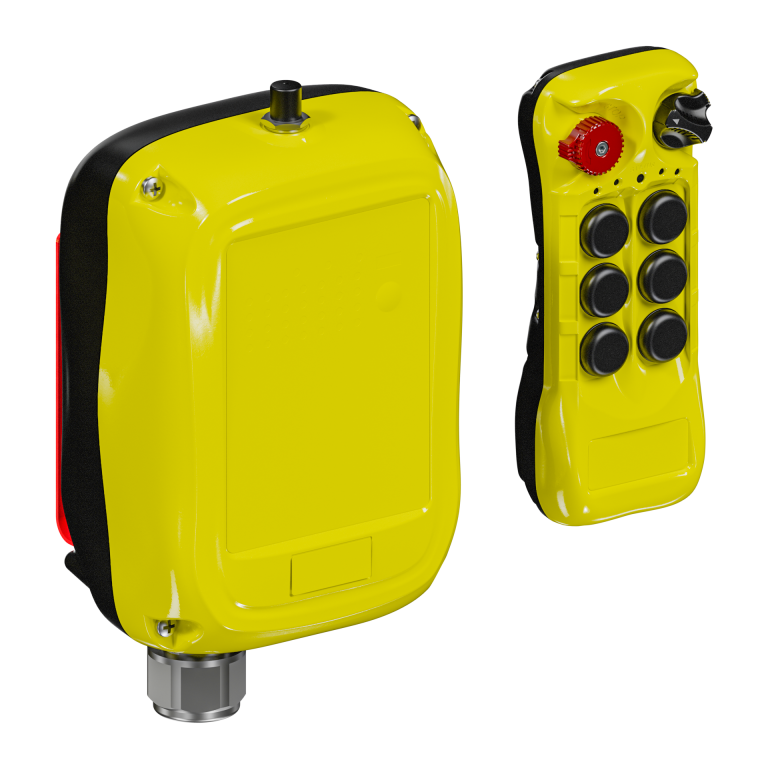

  • KCA1005 – (6) Button

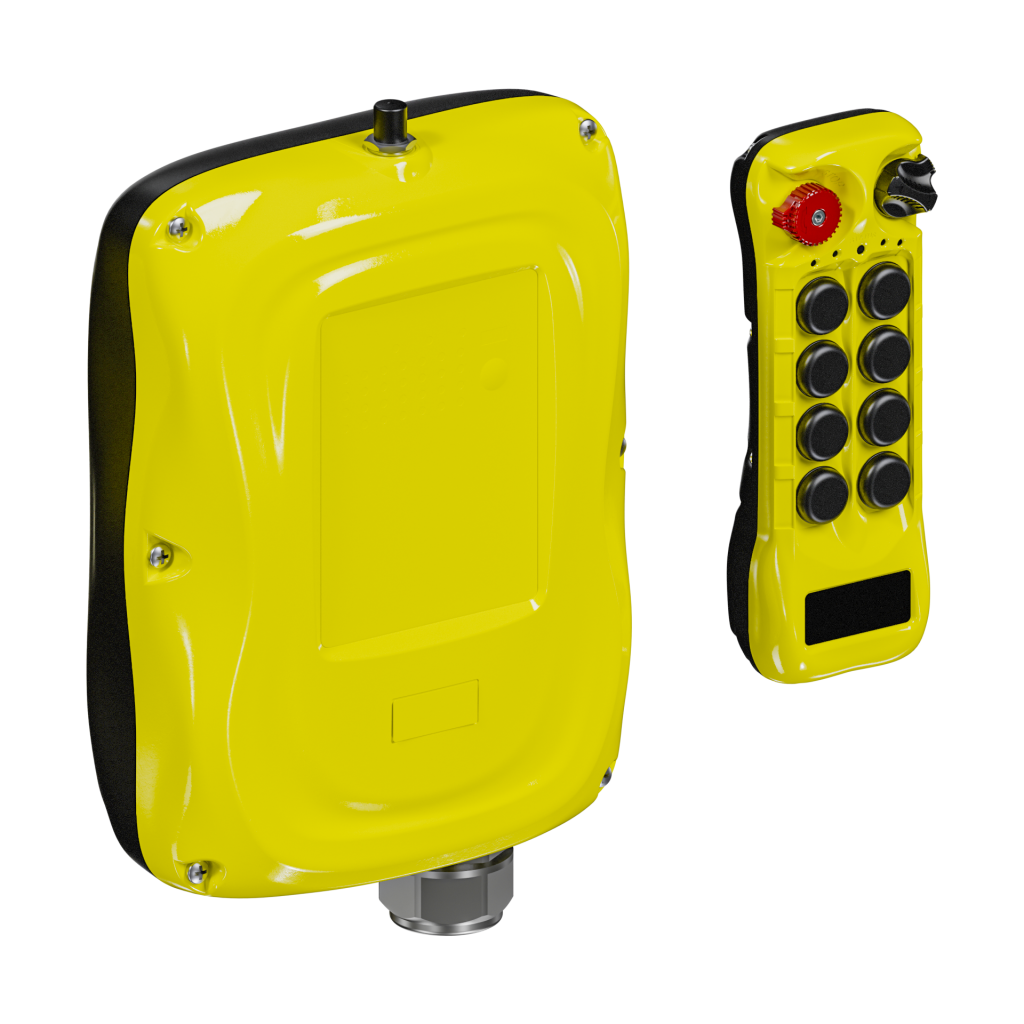

  • KCA1006 – (8) Button.
