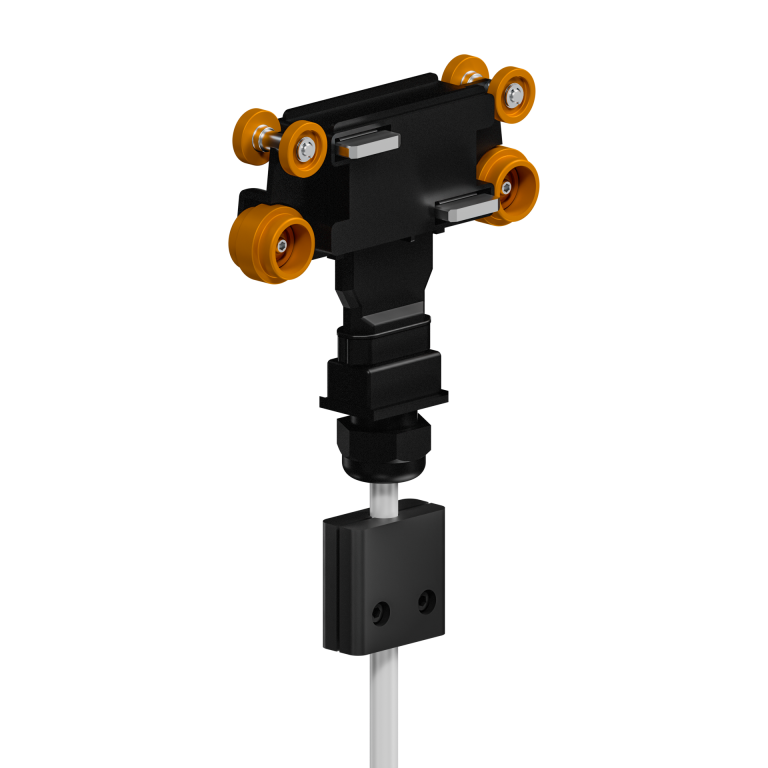

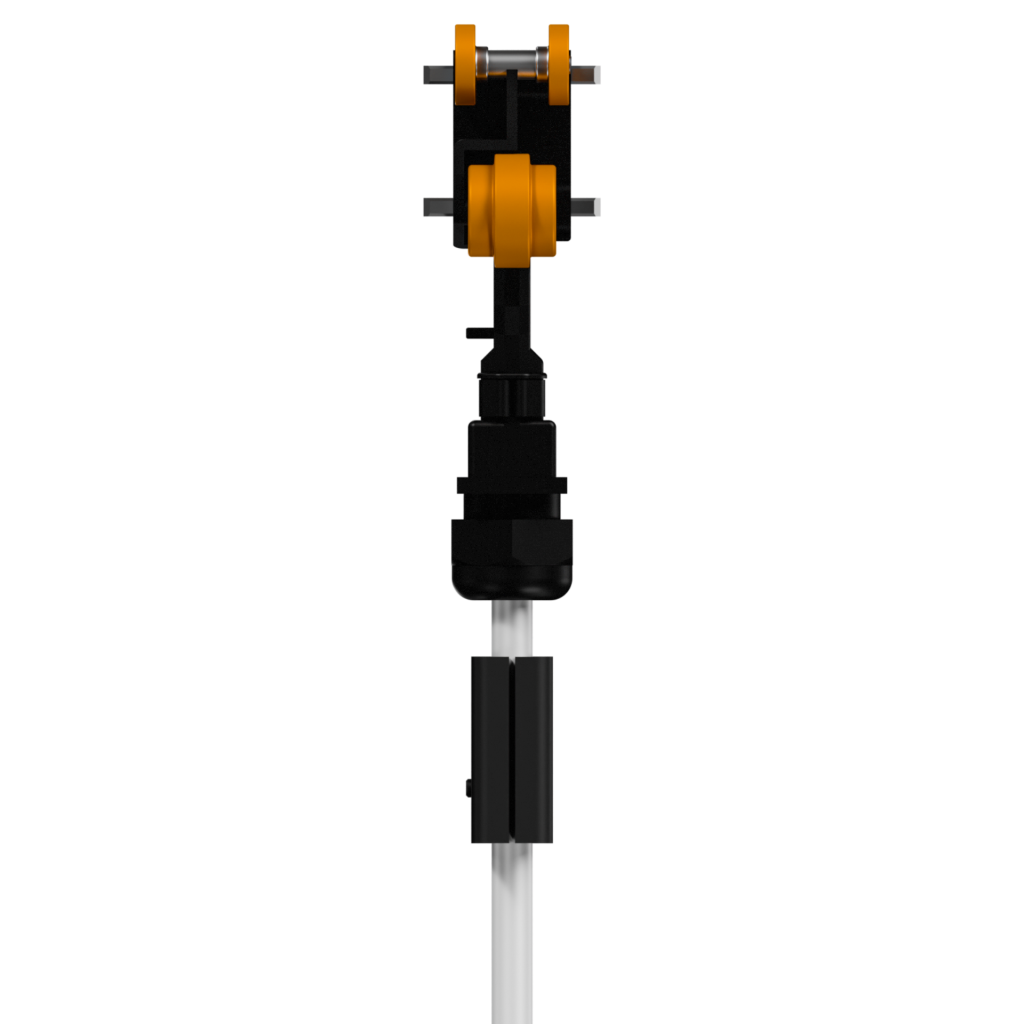

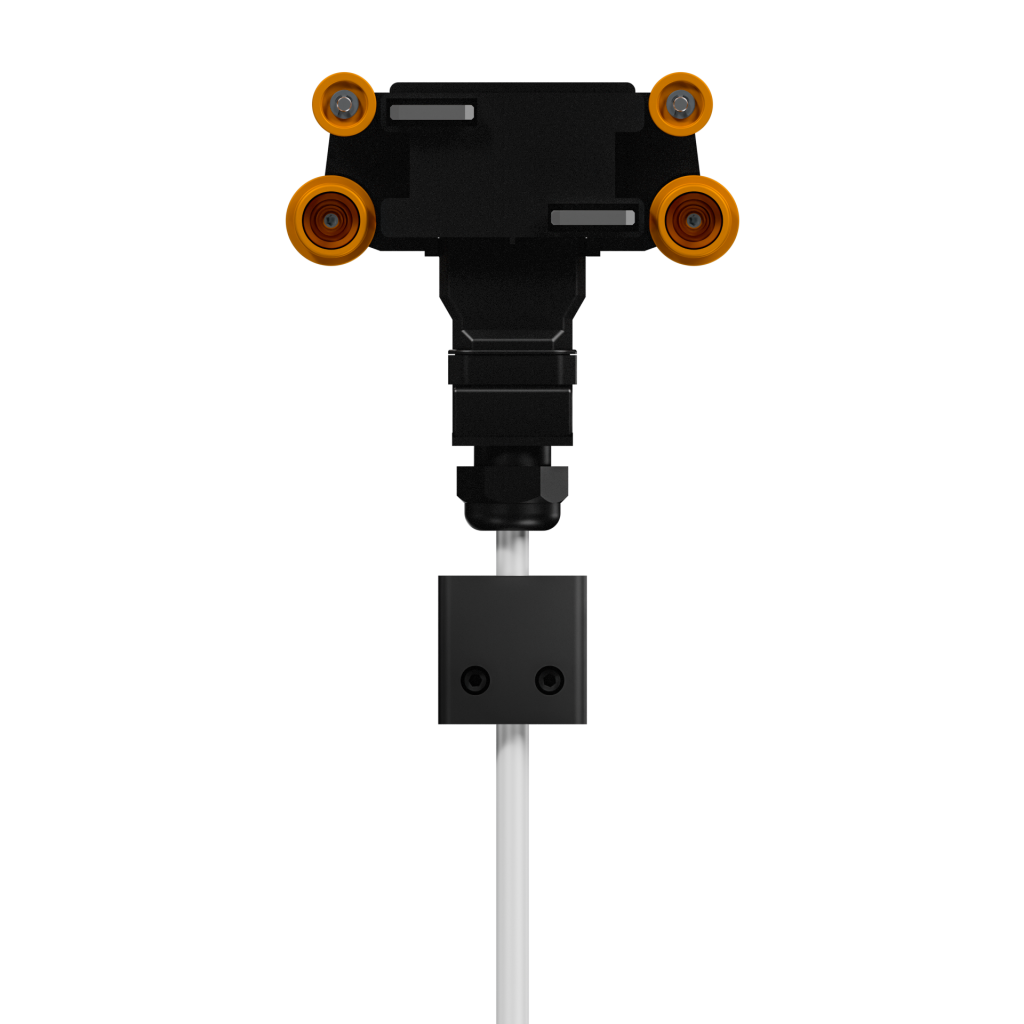

ERail Conductor Trolley

The EMRTA6196 Conductor Trolley travels inside of the red ERail and carries power to the electrical tools/fixtures on the rail system. It is combined with the Knight Load Trolley. Copper graphite shoes are used for energy and control voltages over 35 V.

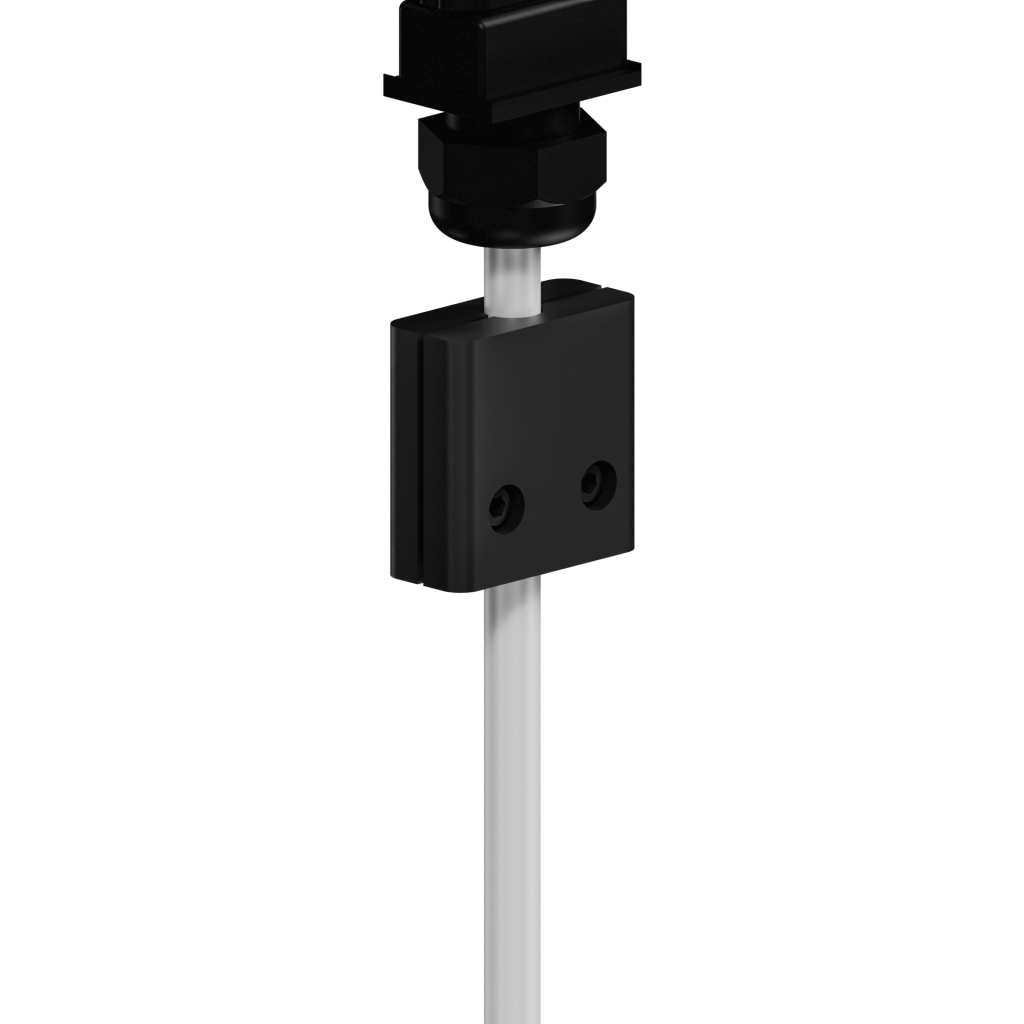

The ERail Conductor Trolley comes with a protective cord clamp (EMRMA6172) to help prevent damage to the electrical cable. Cable available in 1 or 3 meter lengths.

Available in 240VAC, single phase (15 or 20AMP) or 480VAC, three phase (20 or 30AMP) power.

When ordering, must specify with this format:
EMRTA6196-(240 or 480VAC)-(15, 20, or 30AMP)-(1 or 3 meter cable).

Part Numbers:
EMRTA6196-240-15-1, EMRTA6196-240-15-3, EMRTA6196-240-20-1, EMRTA6196-240-20-3
EMRTA6196-480-20-1, EMRTA6196-480-20-3, EMRTA6196-480-30-1, EMRTA6196-480-30-3


part number

EMRTA6196-XXX-X-X

features

  • Travels inside of the ERail.
  • Carries power to the electrical tools on the ERail System.
  • Copper graphite shoes are used for energy and control voltages over 35 V.
  • 240VAC, single phase or 480VAC, 3 phase power.
  • Includes the EMRMA6172 Cord Clamp.
  • 15AMP, 20AMP, or 30AMP
  • Includes 1 meter or 3 meter electrical cable.

weight

1.5 lbs. [0.68kg]

lengths

1 meter cable
3 meter cable

Resources
