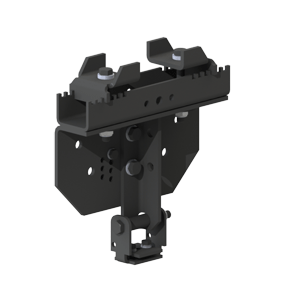

I-Beam Hanger

Used for Direct Loads, suspends Knight’s TR2000 Series Aluminum Rail Systems. When using the TRH20381 Hanger, structural steel can be run perpendicular or parallel to the Knight rail system. The TRH20381 Hanger is coated with an environmentally friendly corrosion protectant.

This hanger is no longer stocked and has been superseded by TRH20382.

---

part number

TRH20381

features

• For Direct Loads.
• Vertical Adjustability: Up to 1.5 in. [38mm]. (Adj. in .25 in. [6.35mm) increments)
• Structural Support Flange Size: 2 in.- 7 in. [51mm – 178mm].
• Coated with an environmentally friendly corrosion protection. ** (Autophoretic ACC 900®).
• Adjustable Height Hanger.
• Optional RWA2133 Safety Cable.

weight

14.5 lbs. [6.58kg].
