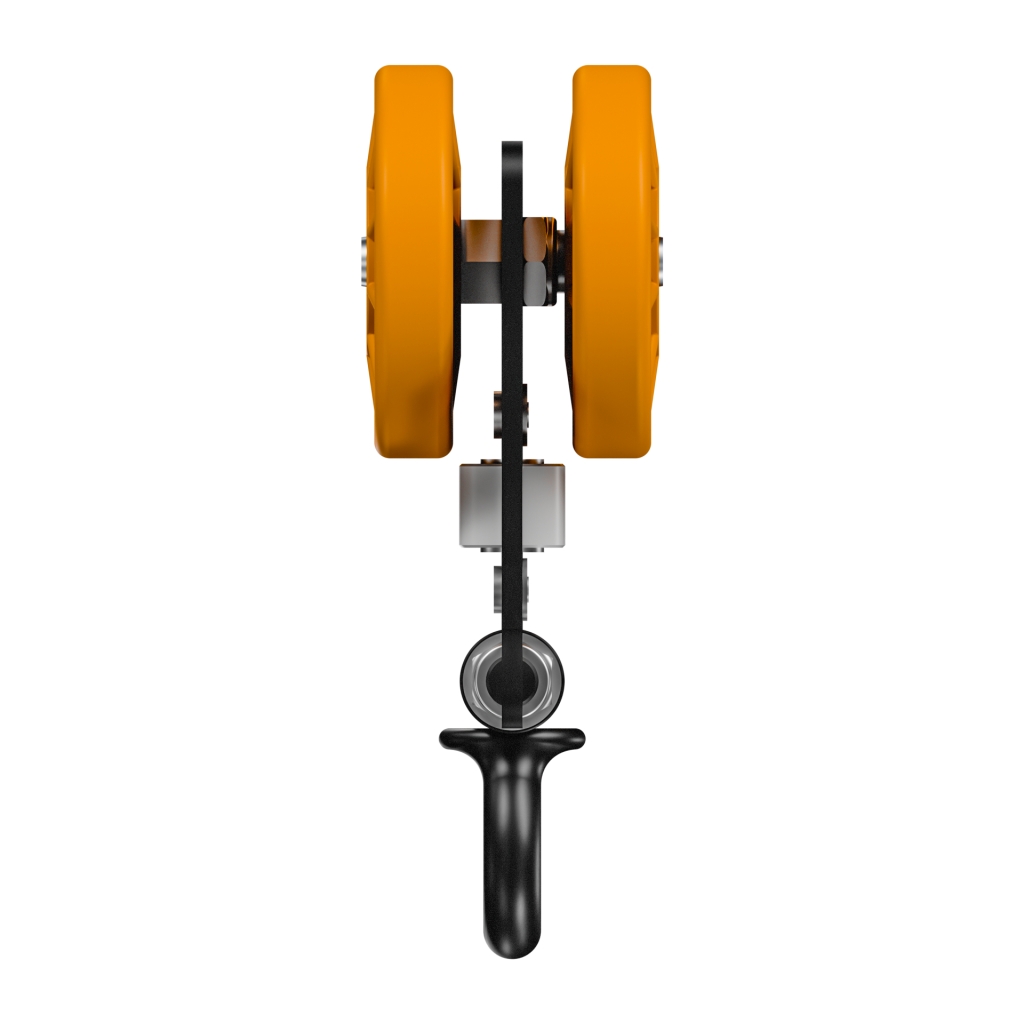

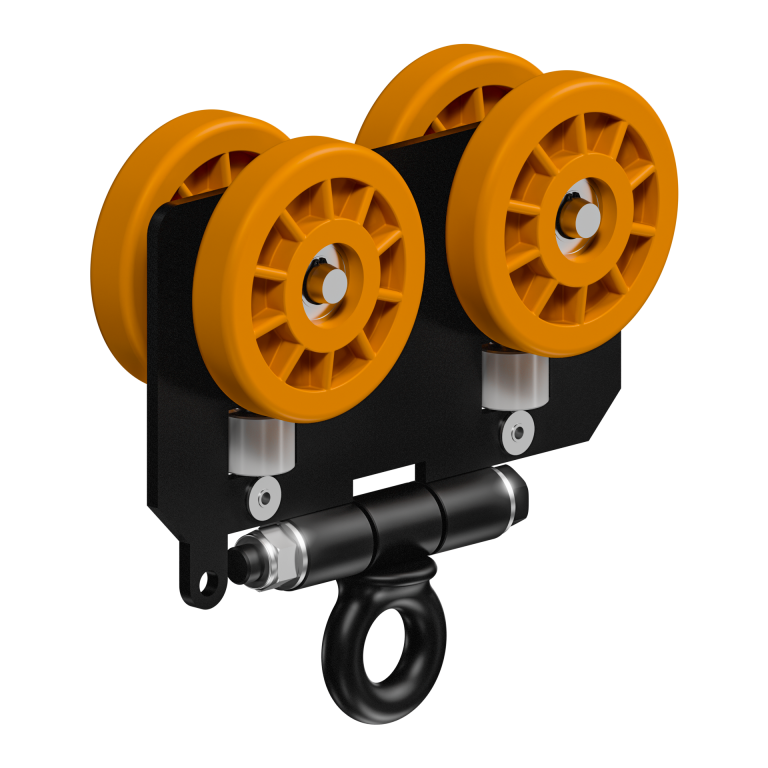

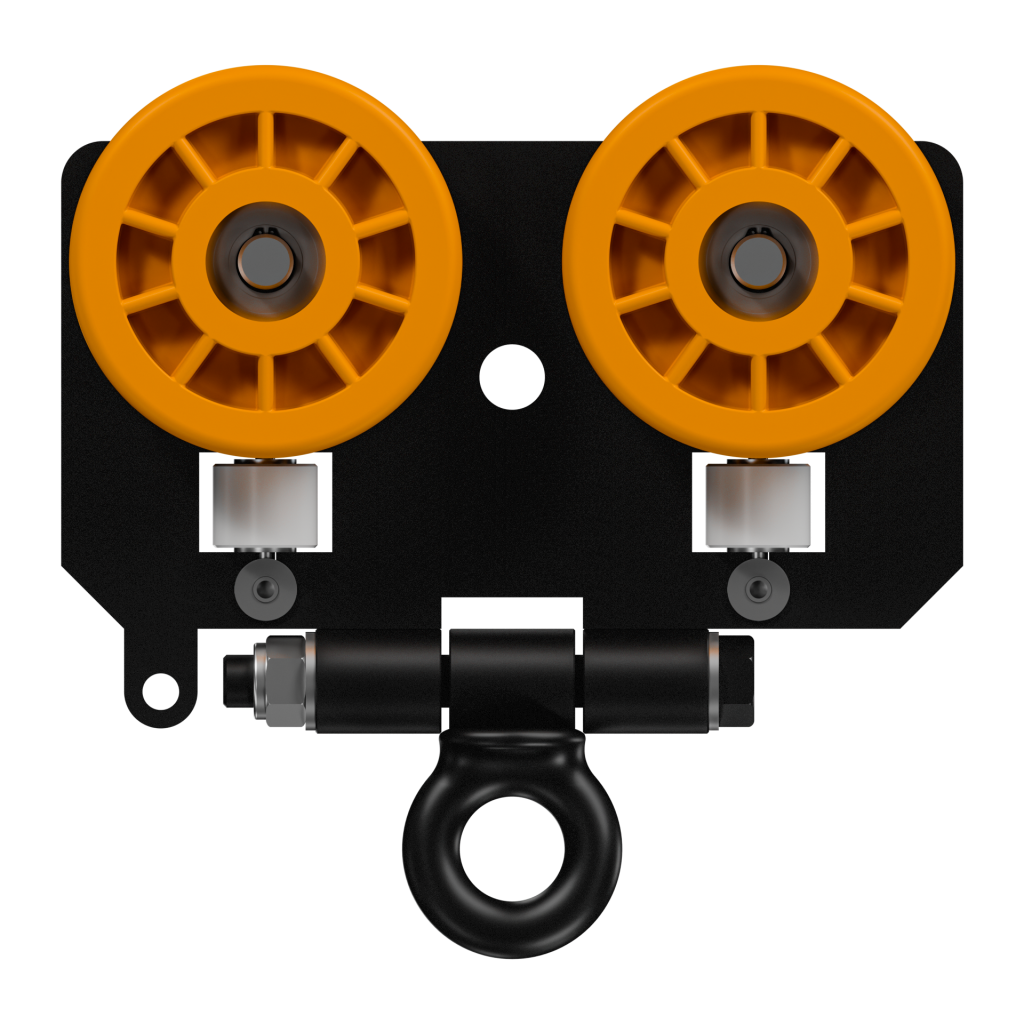

Low Profile Load Trolley with Eye Hook
Knight Global’s MRTA7787 transfers loads along the horizontal axis and suspends Knight’s Articulating Arm Carriages and Fixtures from Knight’s RAD7510 Series Aluminum Rail Systems.
part number
MRTA7787features
- Eye Hook Inside Diameter: 1.25 in.[31.8mm].
- Eye Hook Outer Diameter: 2.63 in. [66.8mm].
- Reduces stack-up heights by: 1.84 in. [47mm].
- Fiberglass filled High Impact Nylon Wheels.
- Side Guide Rollers with integrated bearings.
- Double-Shielded bearings keep dirt out, and do not require lubrication.
- Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.
max capacity
3,000 lbs. [1,360kg]weight
10.2 lbs [4.61kg]jib type
MJBA2300
MJBA2600
MJBA2700
