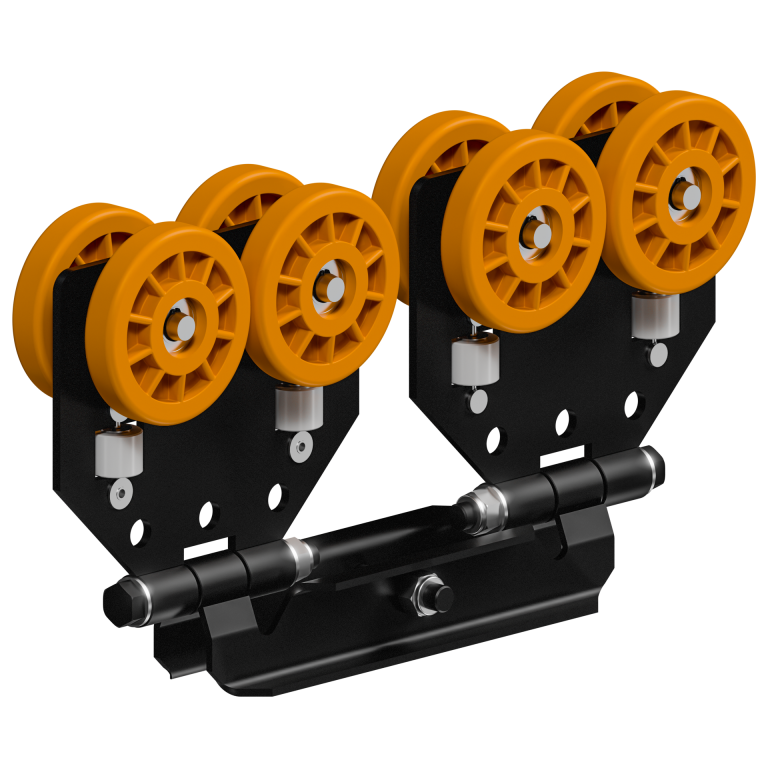

Torque Pack Load Trolley

Knight Global’s MRTA7726 transfers and suspends Knight’s ATA2600 or ATA2700 Torque Tubes along the horizontal axis. Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

part number

MRTA7726

features

Travels inside RAD7510 Series Rail.
Suspends Knight’s ATA2600 or ATA2700 Torque Tubes.
Fiberglass filled High Impact Nylon Wheels.
Side Guide Rollers with integrated bearings.
Double-Shielded bearings keep dirt out, and do not require lubrication.
Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

max capacity

3,000 lbs. [1,360kg].

weight

24.1 lbs. [10.93kg].
