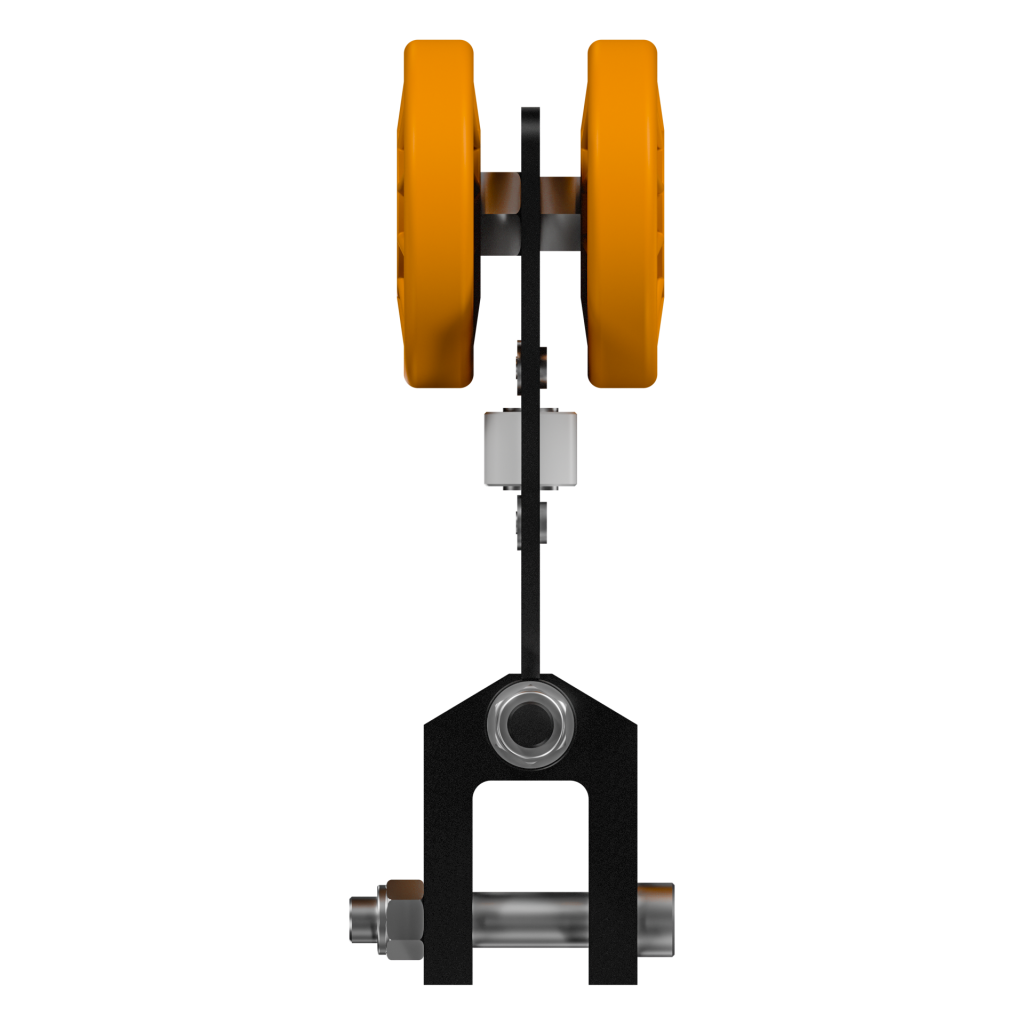

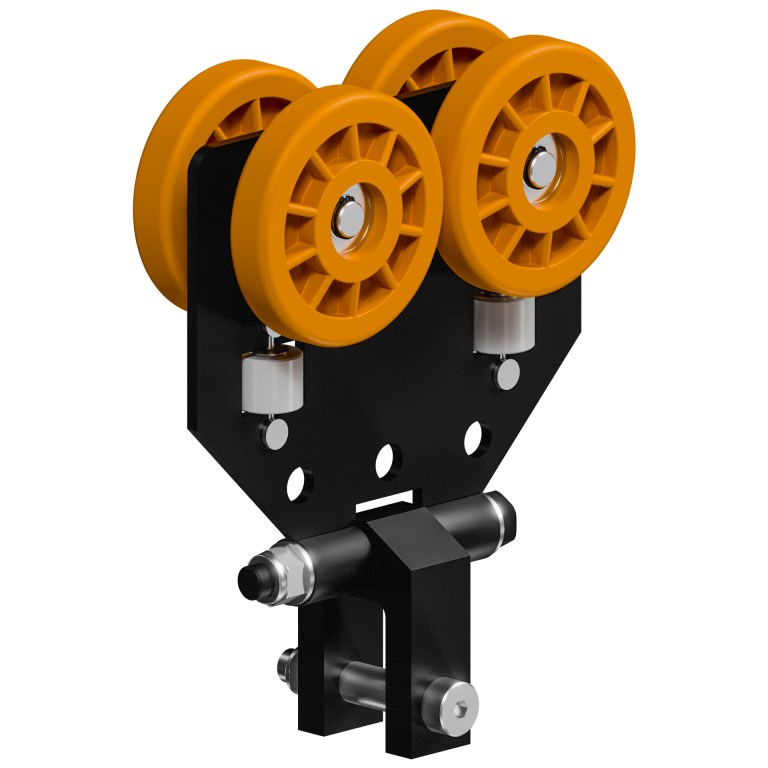

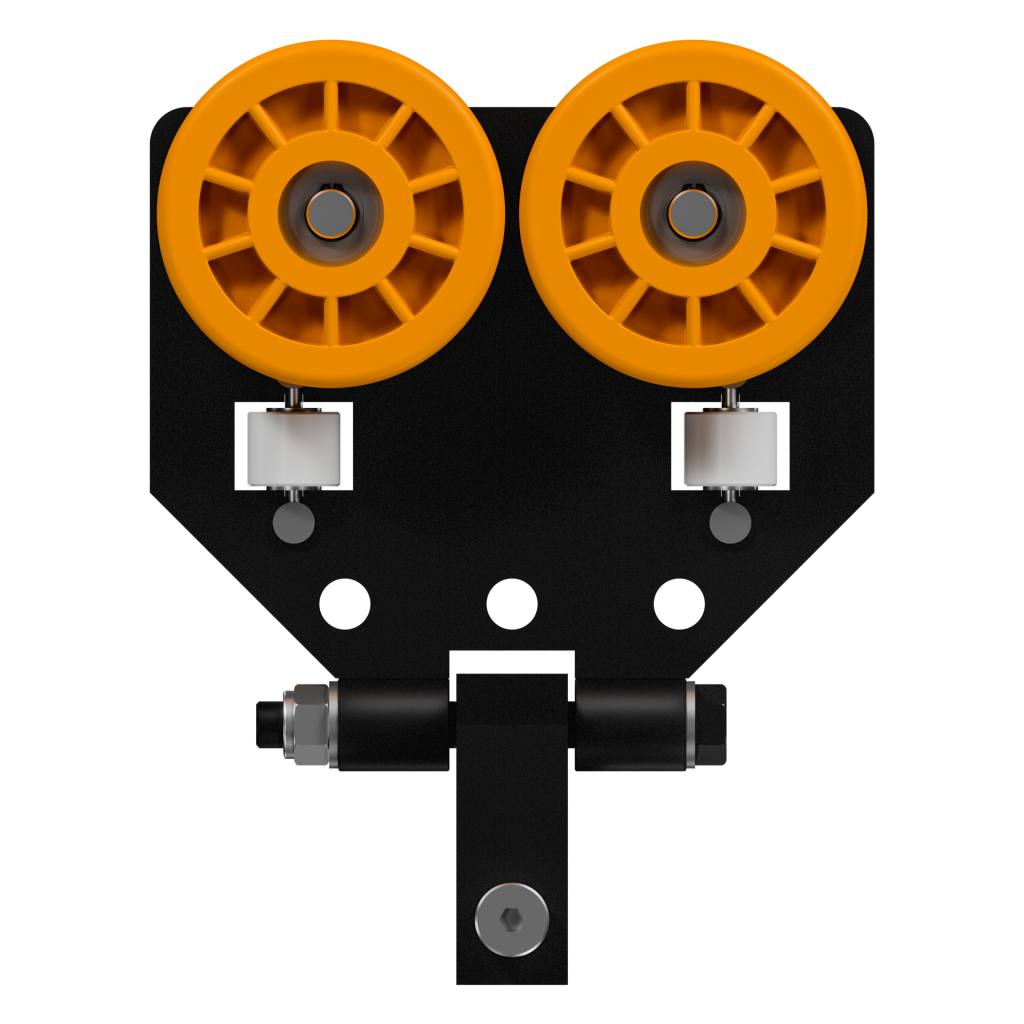

Hoist Load Trolley with Yoke

Knight Global’s MRTA7724 transfers loads along the horizontal axis and suspends Knight pneumatic balancers, hoists and fixtures from Knight’s RAD7510 series overhead aluminum rail systems. Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

---

part number

MRTA7724

features

• Fiberglass filled High Impact Nylon Wheels.
• Side Guide Rollers with integrated bearings.
• Double-Shielded bearings keep dirt out, and do not require lubrication.
• Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

max capacity

3,000 lbs. [1,360kg].

weight

12.7 lbs. [5.76kg].
