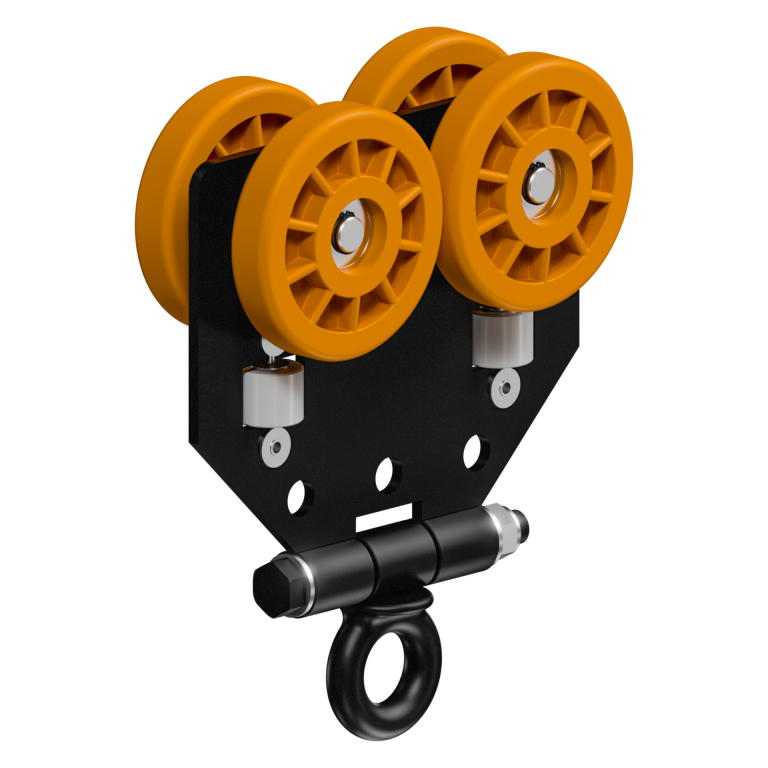

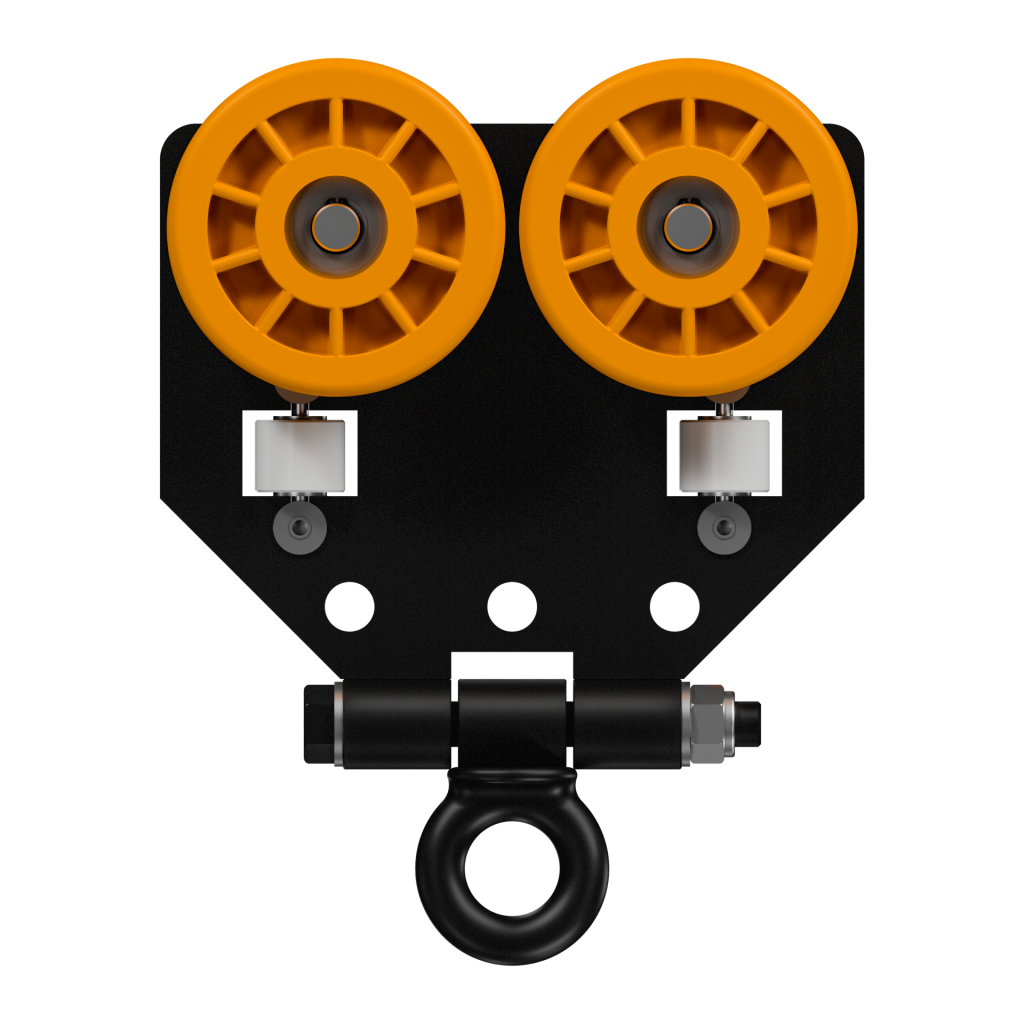

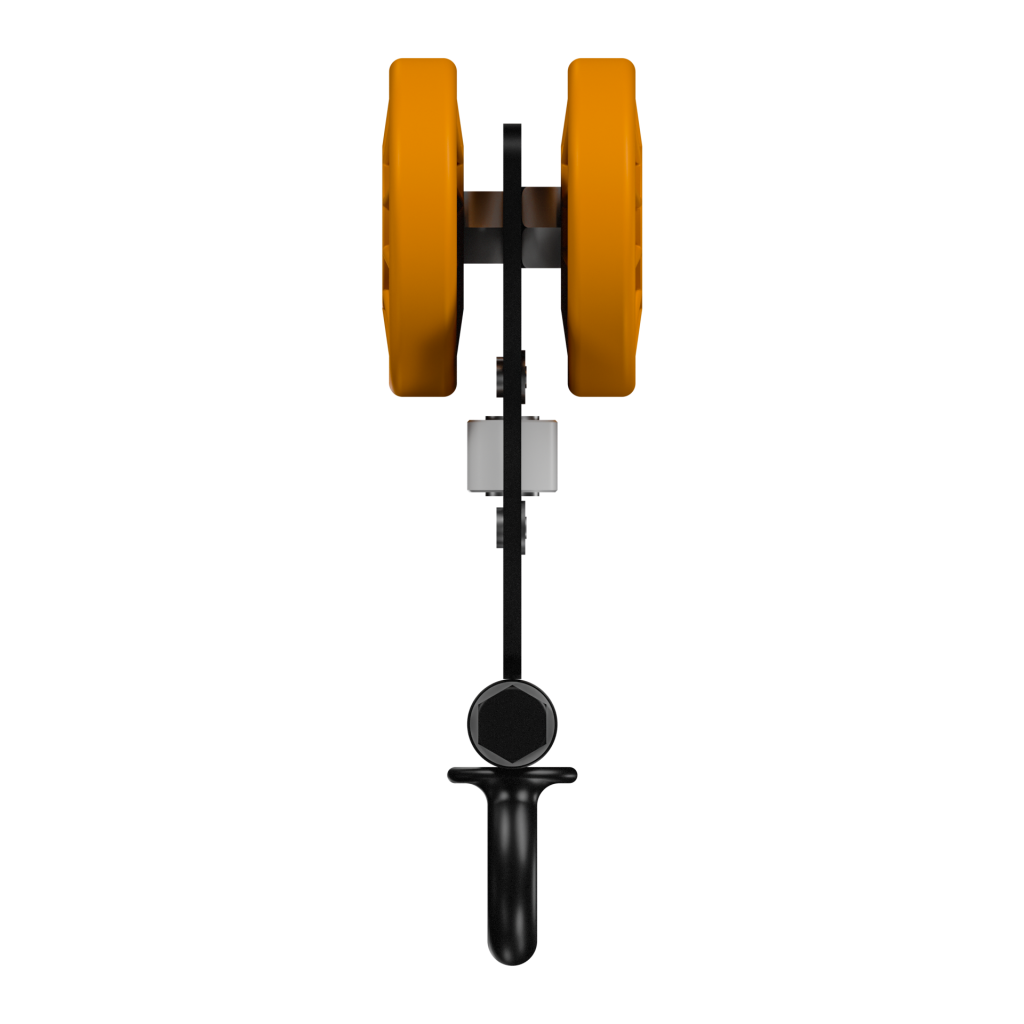

Load Trolley with Eye Hook

Knight Global’s MRTA7719 transfers loads along the horizontal axis and suspends Knight Pneumatic Balancers, Hoists and Fixtures from Knight’s RAD7510 Series Aluminum Rail Systems.


part number

MRTA7719

features

  • Eye Hook Inside Diameter: 1.25 in.[31.8mm].
  • Eye Hook Outer Diameter: 1.97 in. [50mm].
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Min/ Max Continuous Service Temp at 100% load:  -20 degs. F to 248 degs. F.

max capacity

3000 lbs. [1360kg]

weight

10.6 lbs [4.81kg]

jib type

MJBA2300
MJBA2600
MJBA2700
