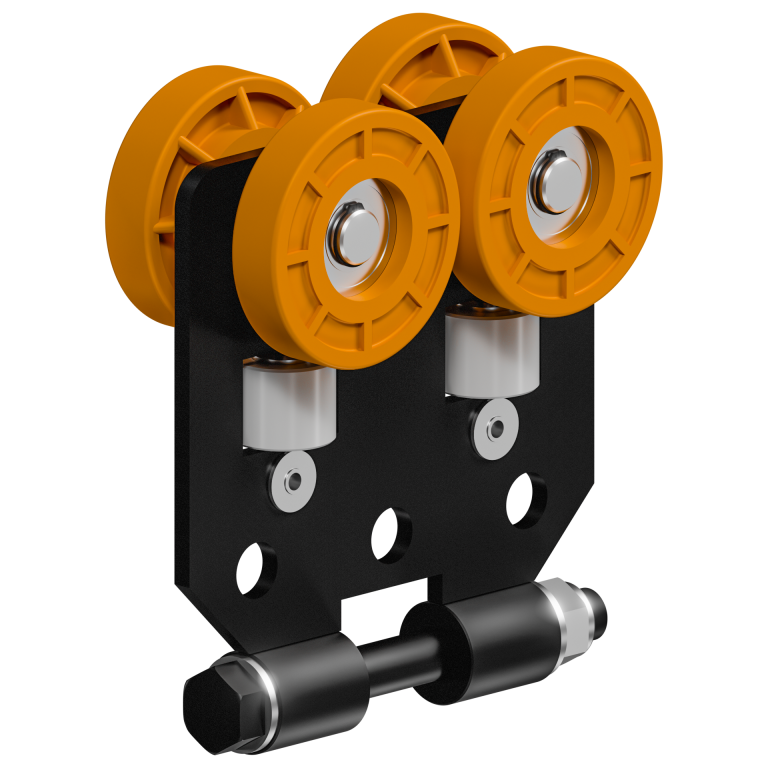

Load Trolley with Bosses

Knight Global’s MRTA6103 transfers loads along the horizontal axis and suspends fixtures from Knight’s RAD6110 series overhead aluminum rail systems. Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

---

part number

MRTA6103

features

• Fiberglass filled High Impact Nylon Wheels.
• Side Guide Rollers with integrated bearings.
• Double-Shielded bearings keep dirt out, and do not require lubrication.
• Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

max capacity

1,600 lbs. [725kg].

weight

6.1 lbs. [2.77kg].
