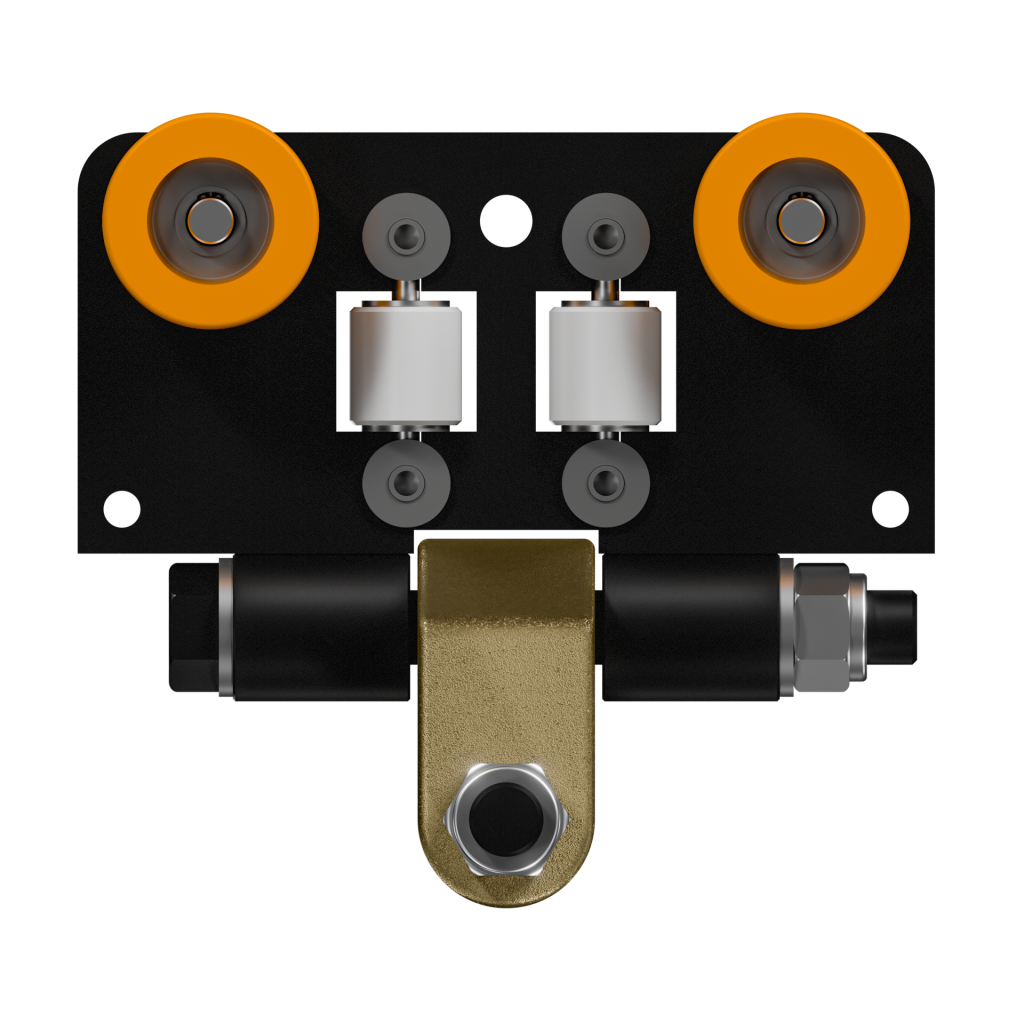

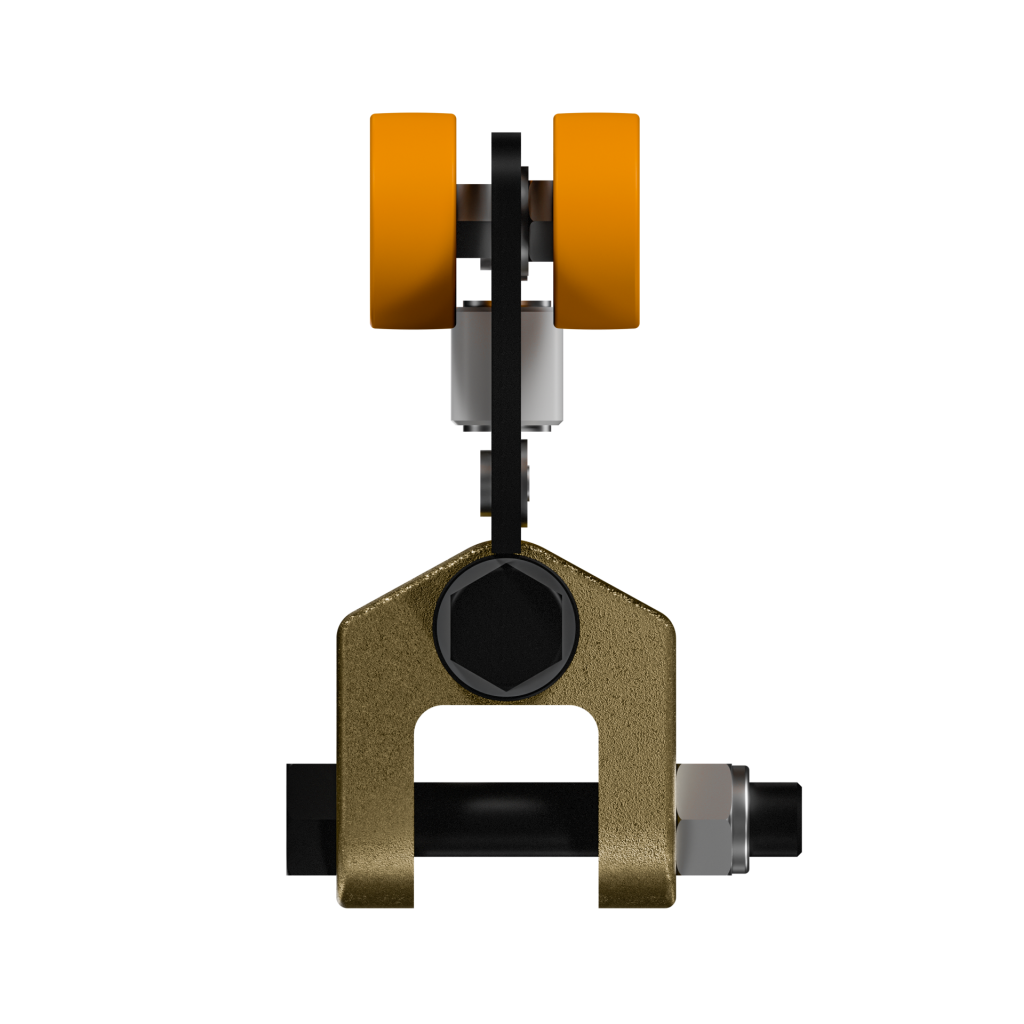

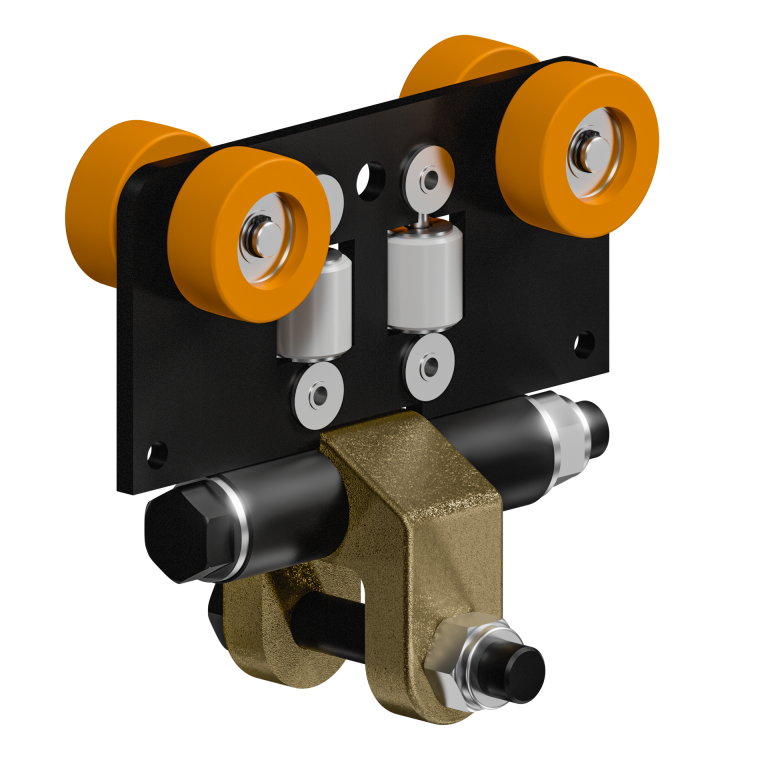

Low Profile Load Trolley with Yoke

Knight Global’s MRTA4392 Low Profile Load Trolley with Yoke transfers loads along the horizontal axis and suspends Knight Articulating Arm Carriages and fixtures from Knight’s RAD4110 Series Overhead Aluminum Rail Systems. Knight Low Profile Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

part number

MRTA4392

features

  • Side Guide Rollers with integrated bearings.
  • Fiberglass filled High Impact Nylon Wheels.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

max capacity

1,600 lbs. [408kg]

weight

6.6 lbs. [3kg]

Resources

CAD Drawings

+

MRTA4392 Download MRTA4392

Spec Sheet

+

MRTA4392 Load Trolley Download MRTA4392 Load Trolley
