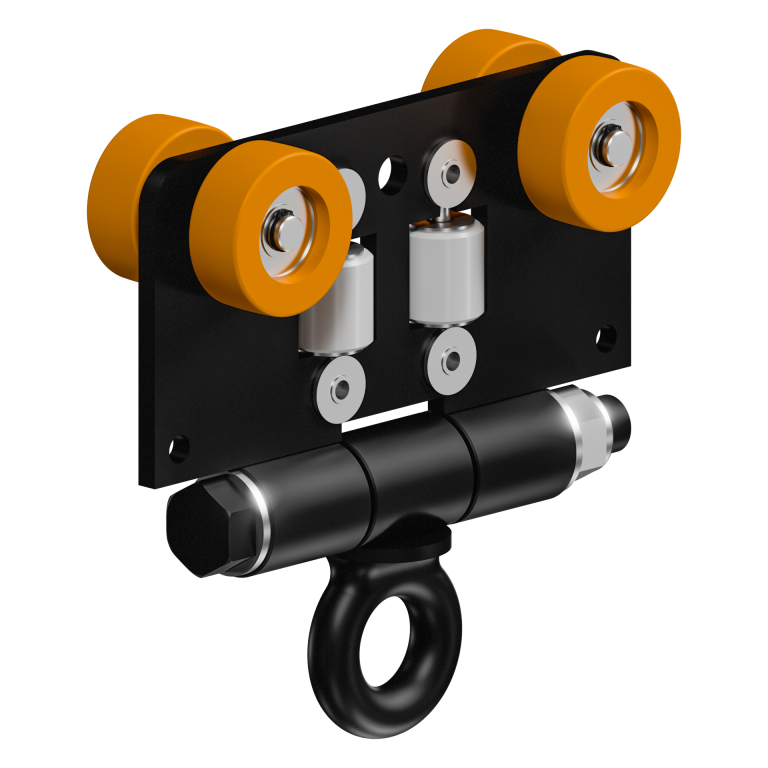

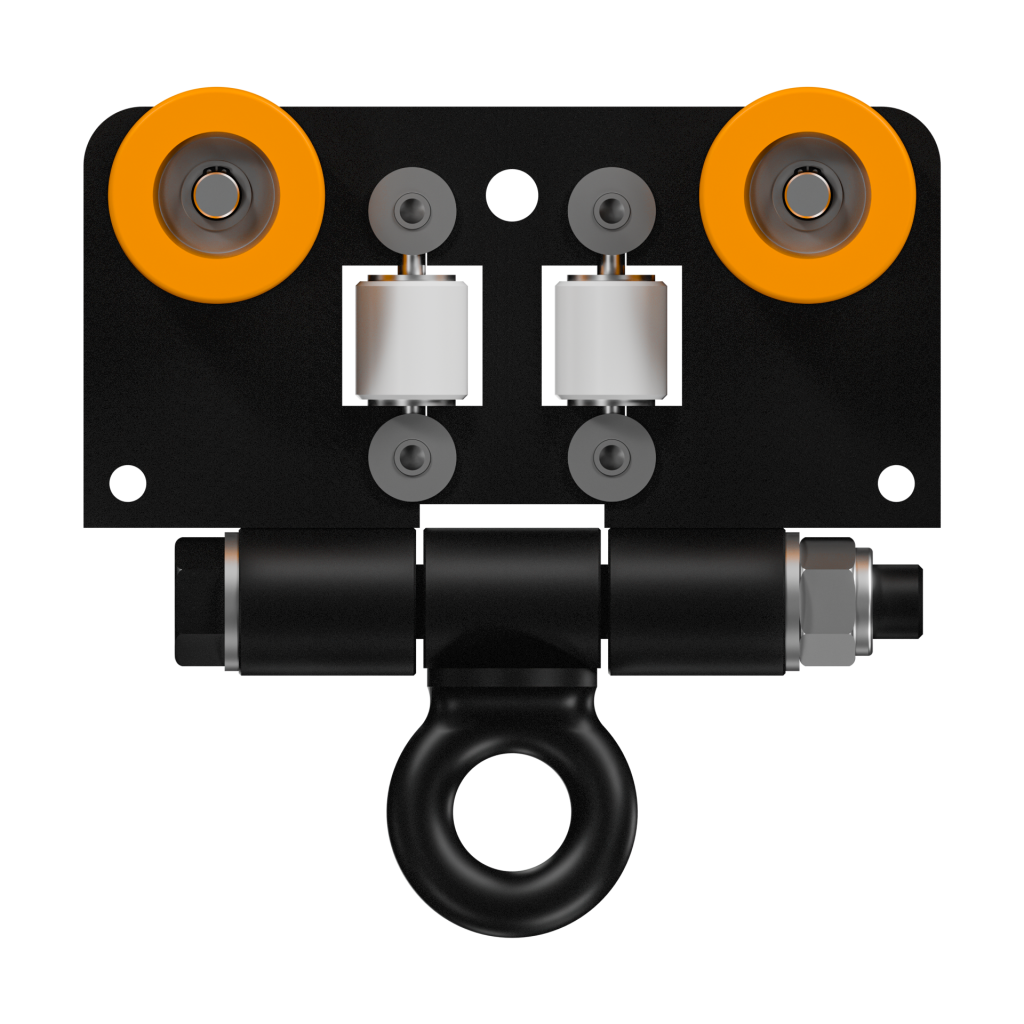

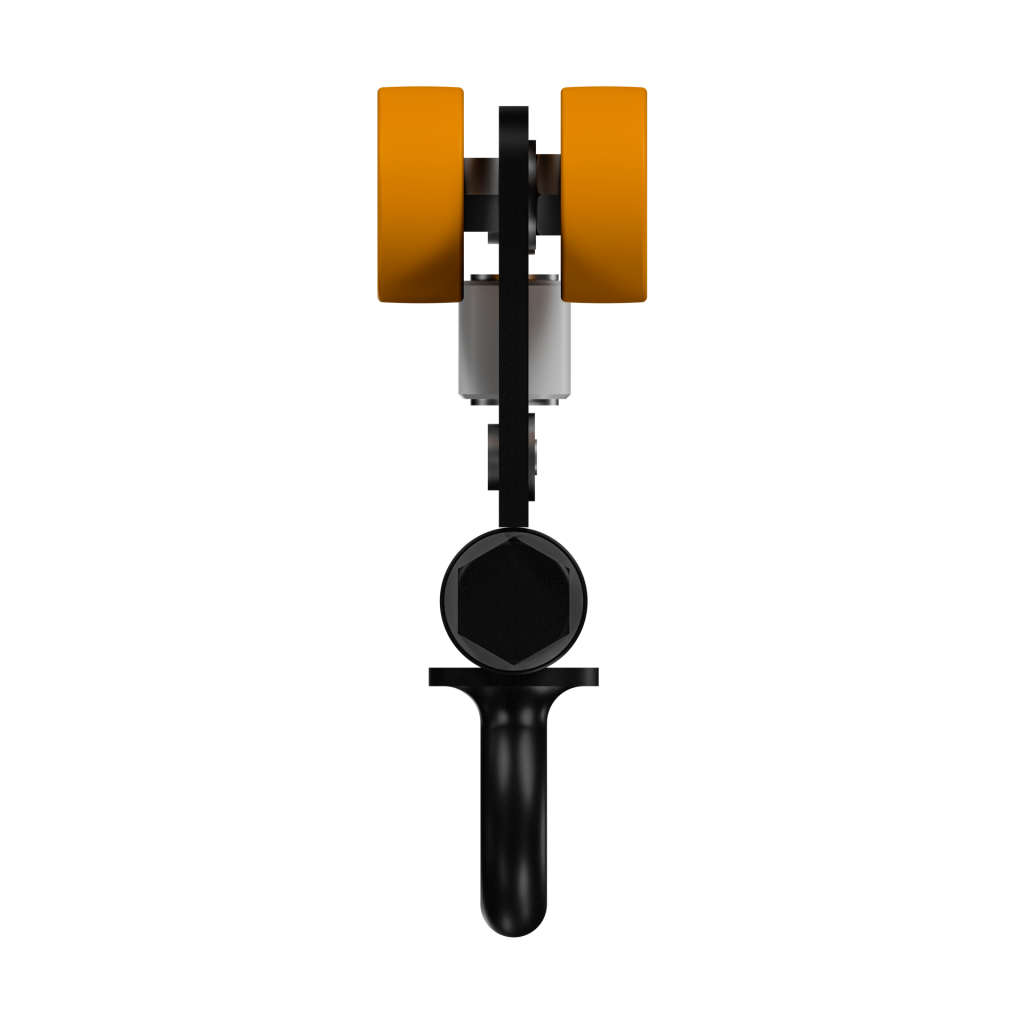

Low Profile Trolley with Eye Hook

Knight Global’s MRTA4293 Low Profile Load Trolley with Eye Hook transfers loads along the horizontal axis and suspends Knight Air Balancers, Hoists and fixtures from Knight’s RAD4110 Series Overhead Aluminum Rail Systems.

Knight Low Profile Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

---

part number

MRTA4293

features

• Eye Hook Inside Diameter: 1.00 in. [25.4mm].
• Eye Hook Outer Diameter: 2.13 in. [54.1mm].
• Fiberglass filled High Impact Nylon Wheels.
• Side Guide Rollers with integrated bearings.
• Double-Shielded bearings keep dirt out, and do not require lubrication.
• Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

max capacity

1,100 lbs. [499kg]

weight

5.3 lbs. [2.40kg]
