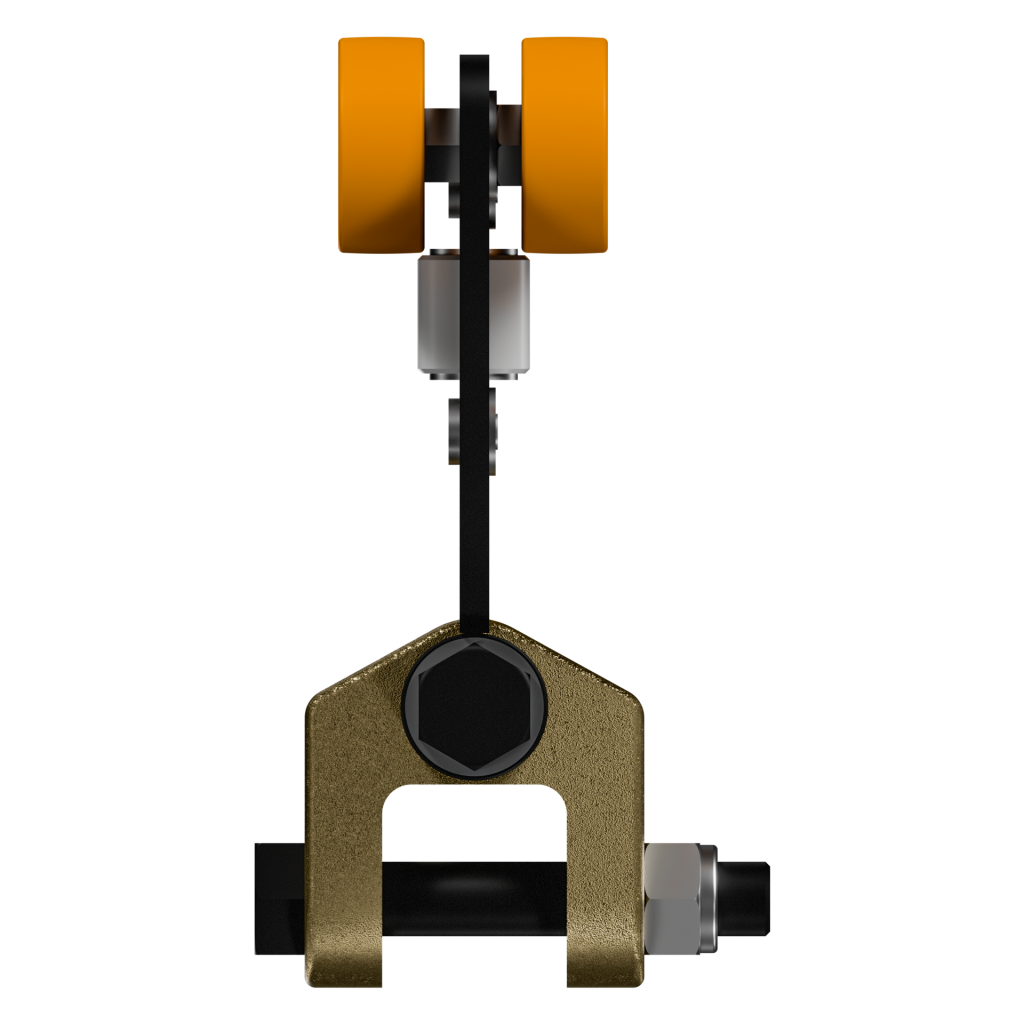

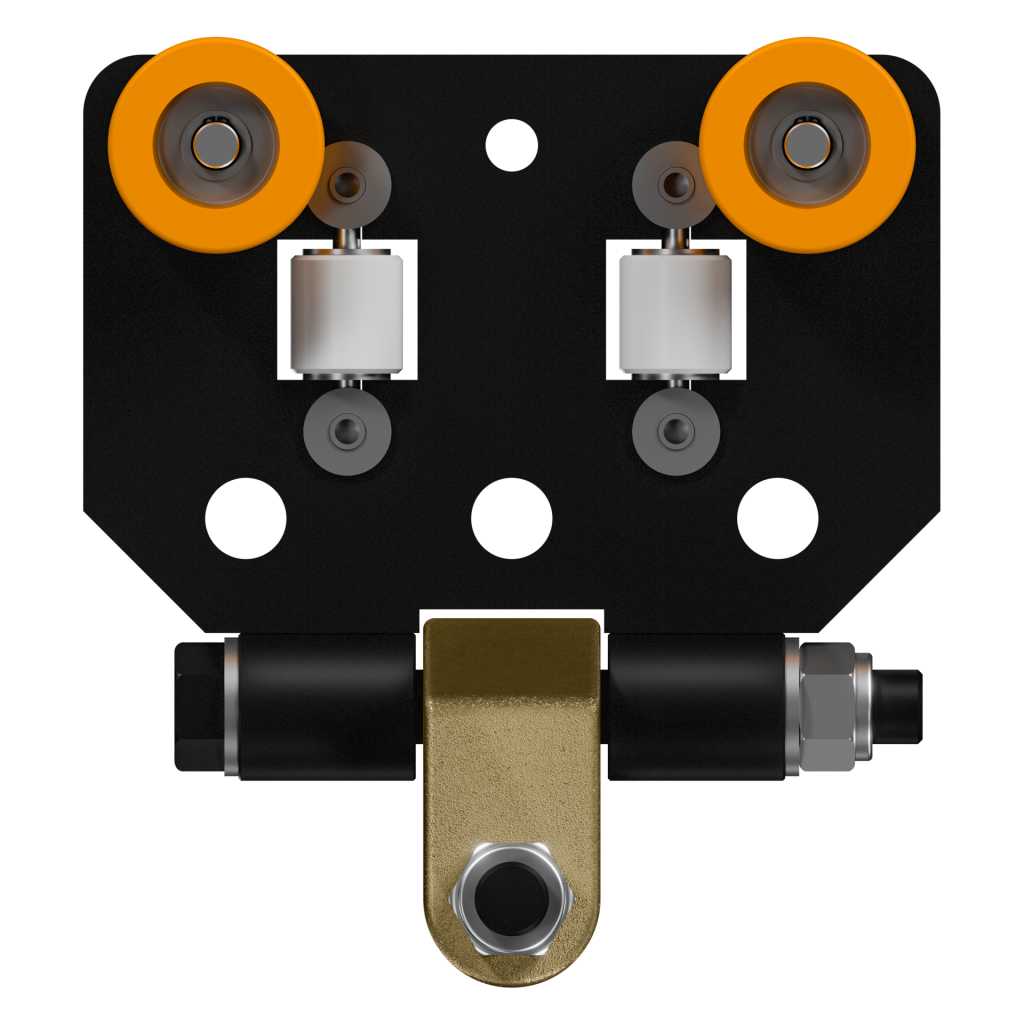

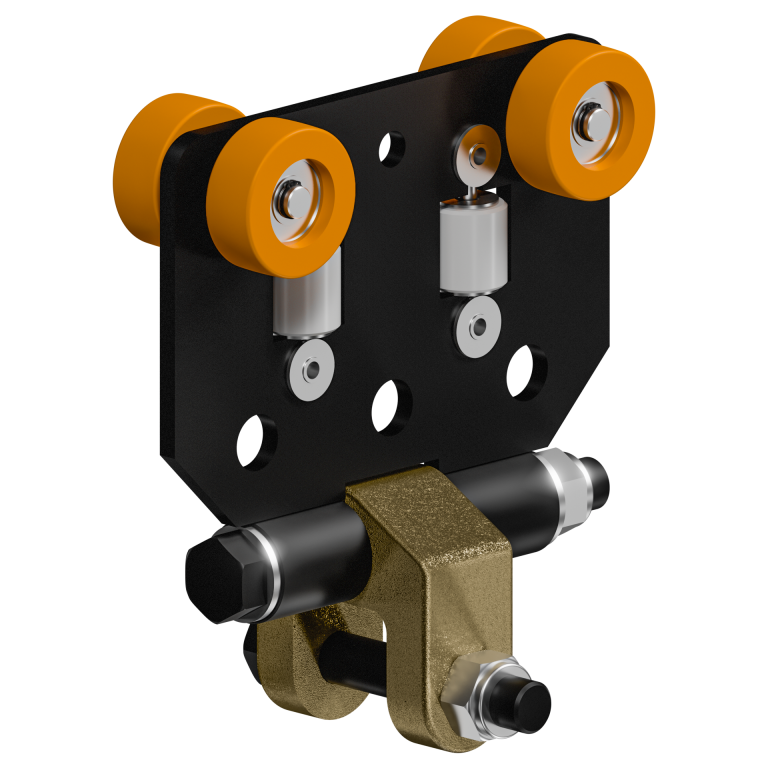

Load Trolley with Yoke

The MRTA4009 Load Trolley with Yoke transfers loads along the horizontal axis and suspends Knight arm carriages from Knight’s RAD4110 series overhead aluminum rail systems.

part number

MRTA4009

features

  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-shielded wheel bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.



max capacity

1,100 lbs. [499kg]

weight

7 lbs. [3.22kg]

Resources

CAD Drawings

+

MRTA4009 Download MRTA4009

Spec Sheet

+

MRTA4009 Load Trolley Download MRTA4009 Load Trolley
