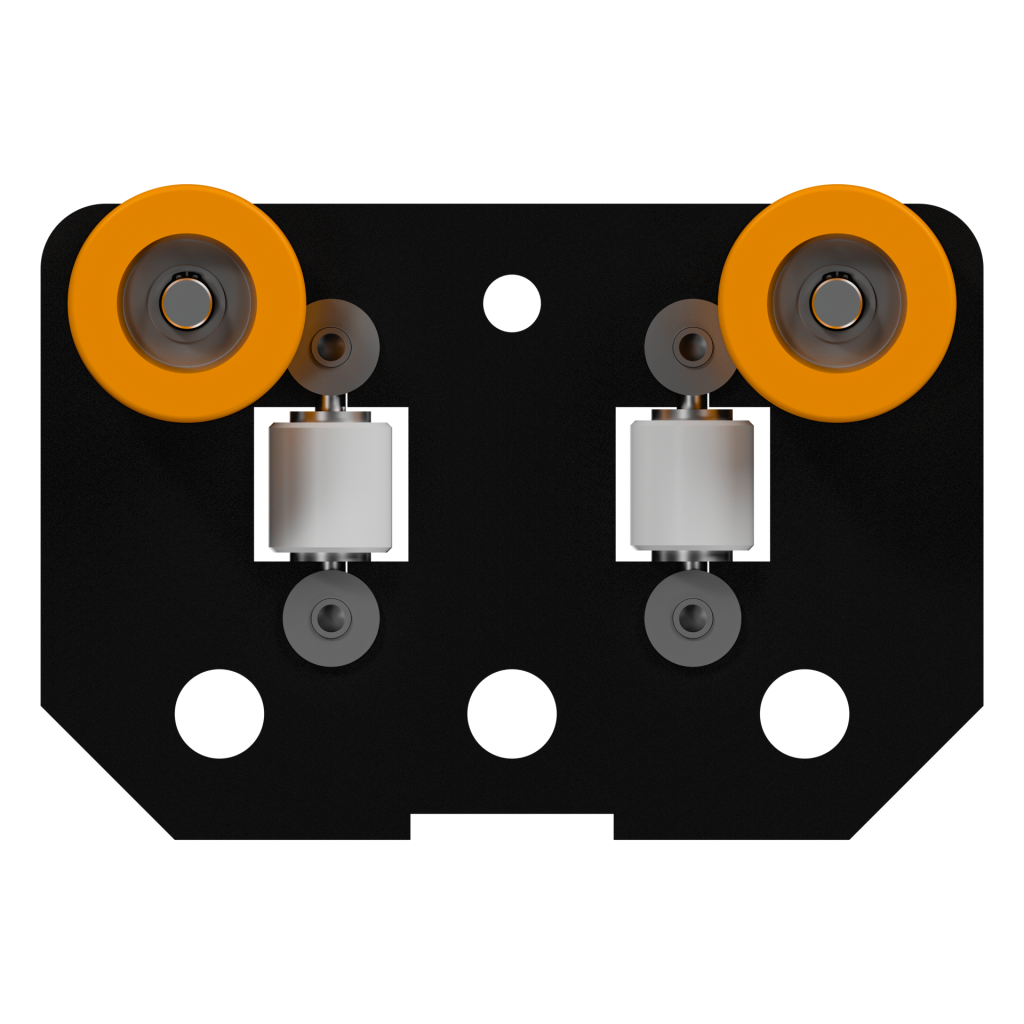

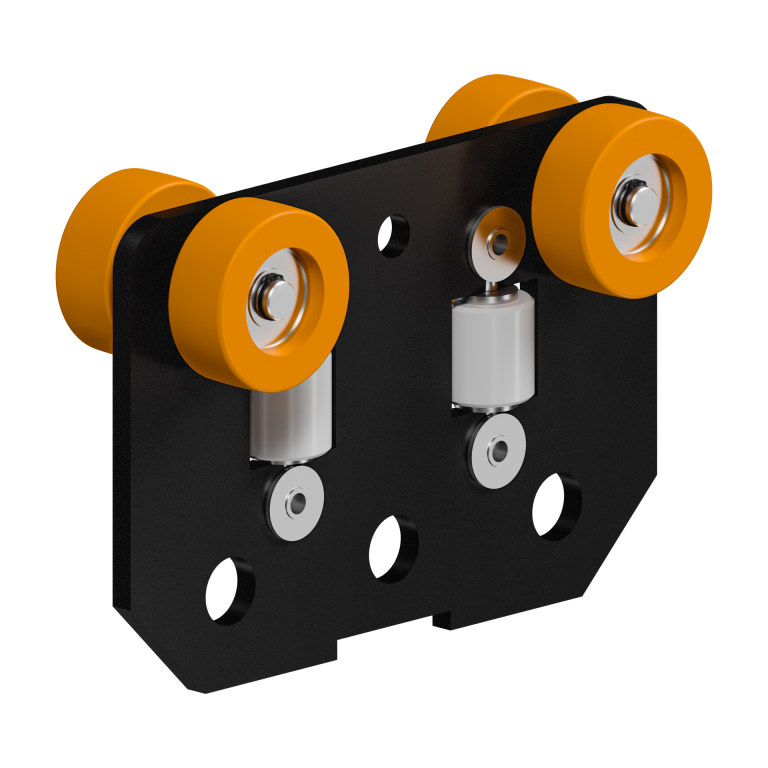

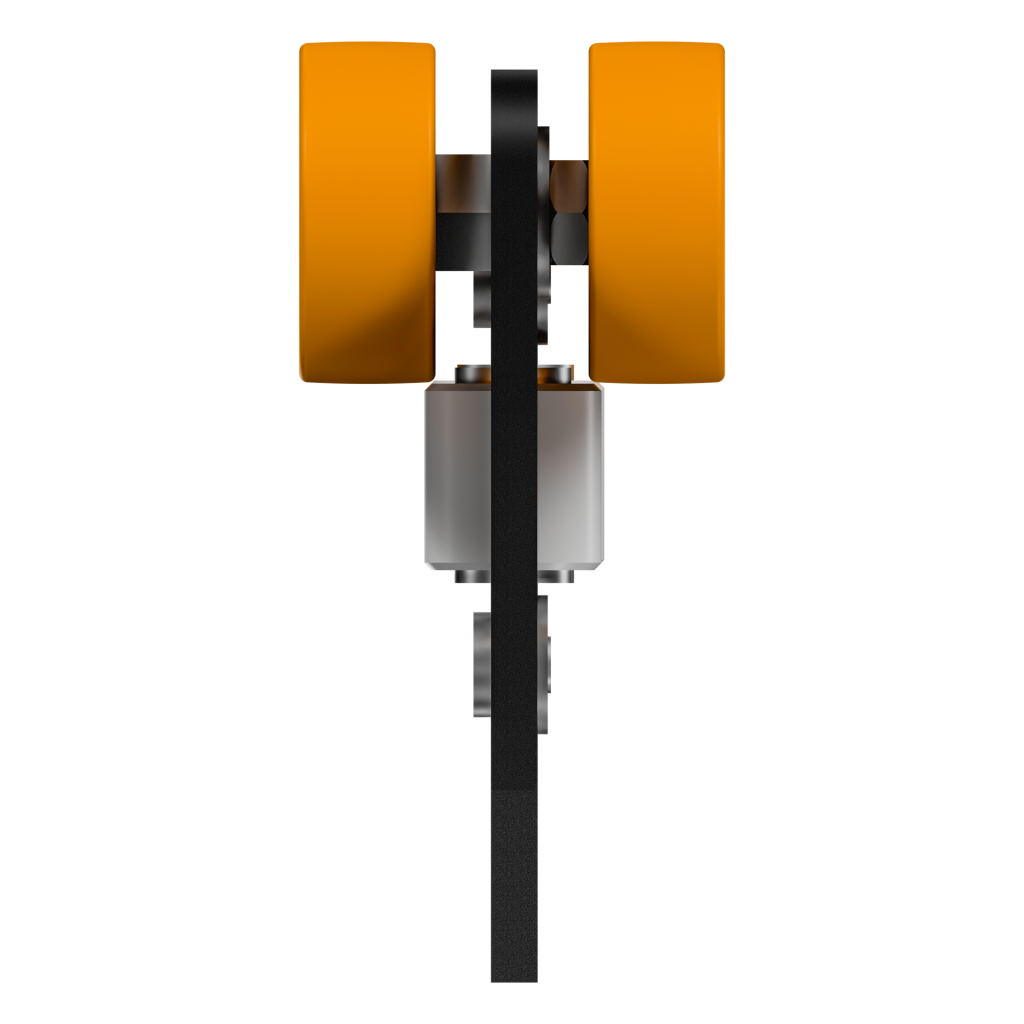

Load Trolley

Knight Global’s MRTA4001 Load Trolley transfers loads along the horizontal axis and suspends fixtures from Knight’s RAD4110 Series Overhead Aluminum Rail Systems. Knight Load Trolleys are manufactured from commercial grade pickled and oiled hot rolled steel with a tensile strength of ± 49 ksi and a yield point of ± 30 ksi.

part number

MRTA4001

features

  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-Shielded bearings keep dirt out, and do not require lubrication.
  • Min/ Max Continuous Service Temp at 100% load: -20 degs. F to 248 degs. F.

max capacity

1,100 lbs. [499kg]

weight

3.0 lbs. [1.36kg]

Resources

CAD Drawings

+

MRTA4001 Download MRTA4001

Spec Sheet

+

MRTA4001 Load Trolley Download MRTA4001 Load Trolley
