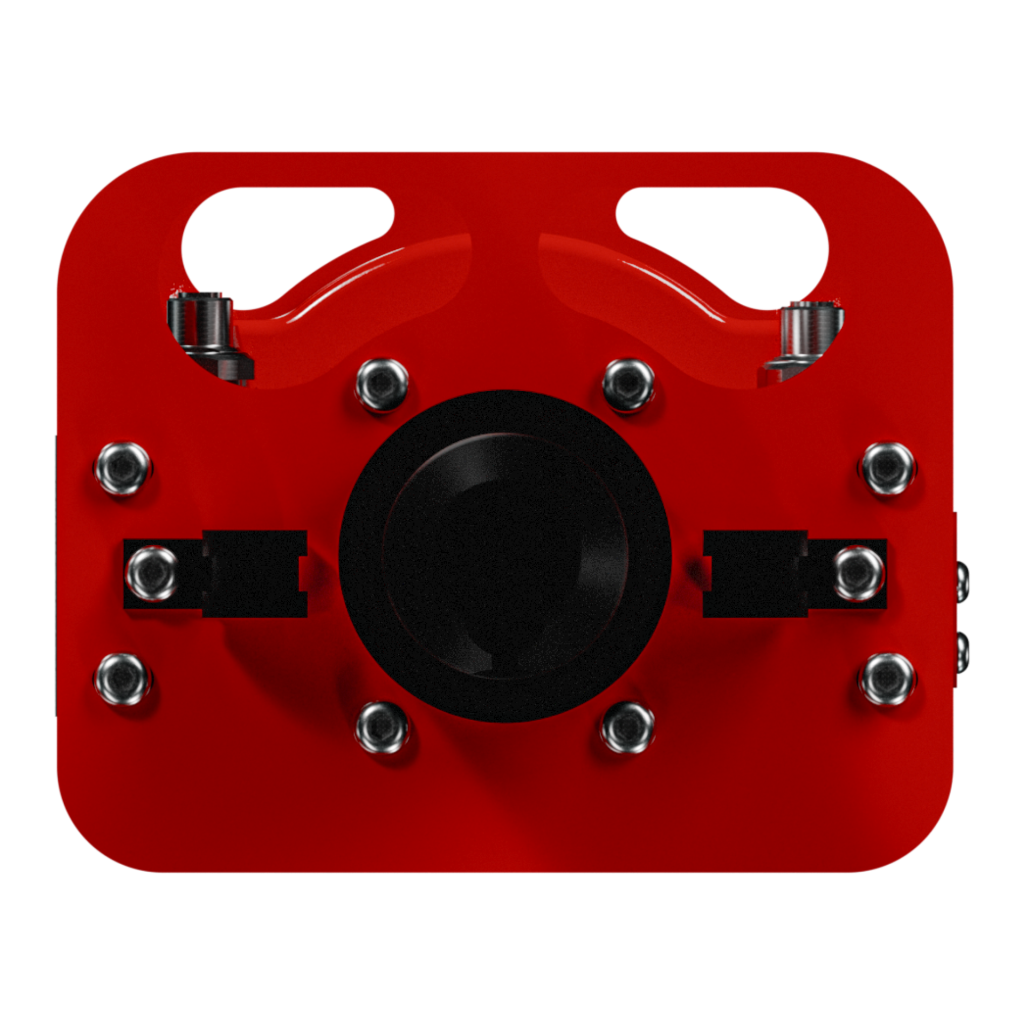

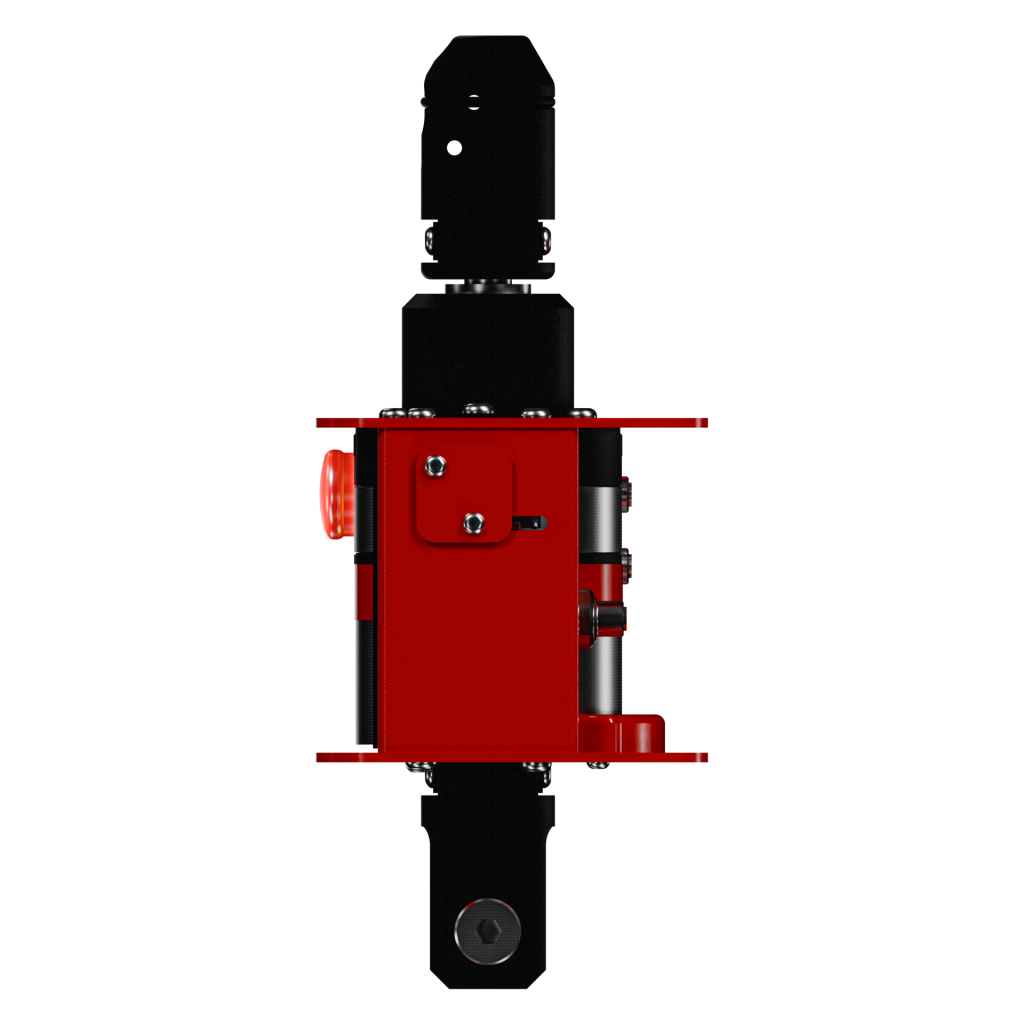

(LMM) Load Monitoring Module with OCI

Fully programmable analog style load monitoring module that incorporates the latest in designs. The KLCA1002 includes our patented load cells with integral amplifier for noise immunity, packaging to protect lights buttons and connectors from operator interface, and improved clevis mount with cross pinning to eliminate the need for threaded rod, for connecting devices below the handle grip.

The KLCA1002 top hat connects our 4mm KDSA1010 or 5mm KDSA1011 servo chain. The LMM programmable load sensing module mounts inline of the chain on the system and is used when the operator is able to reach the run stop button when the hoist is in the up position. The KLCA1002 is recommended when an Inline Control Handle is not a practical solution.

(**Previously EBA1165)

part number

KLCA1002

features

Used in conjunction with the Dual Speed Handle Pendant or Fixture Handle.
(OCI) Operator Controlled Interface.
Ethernet Programming Port.

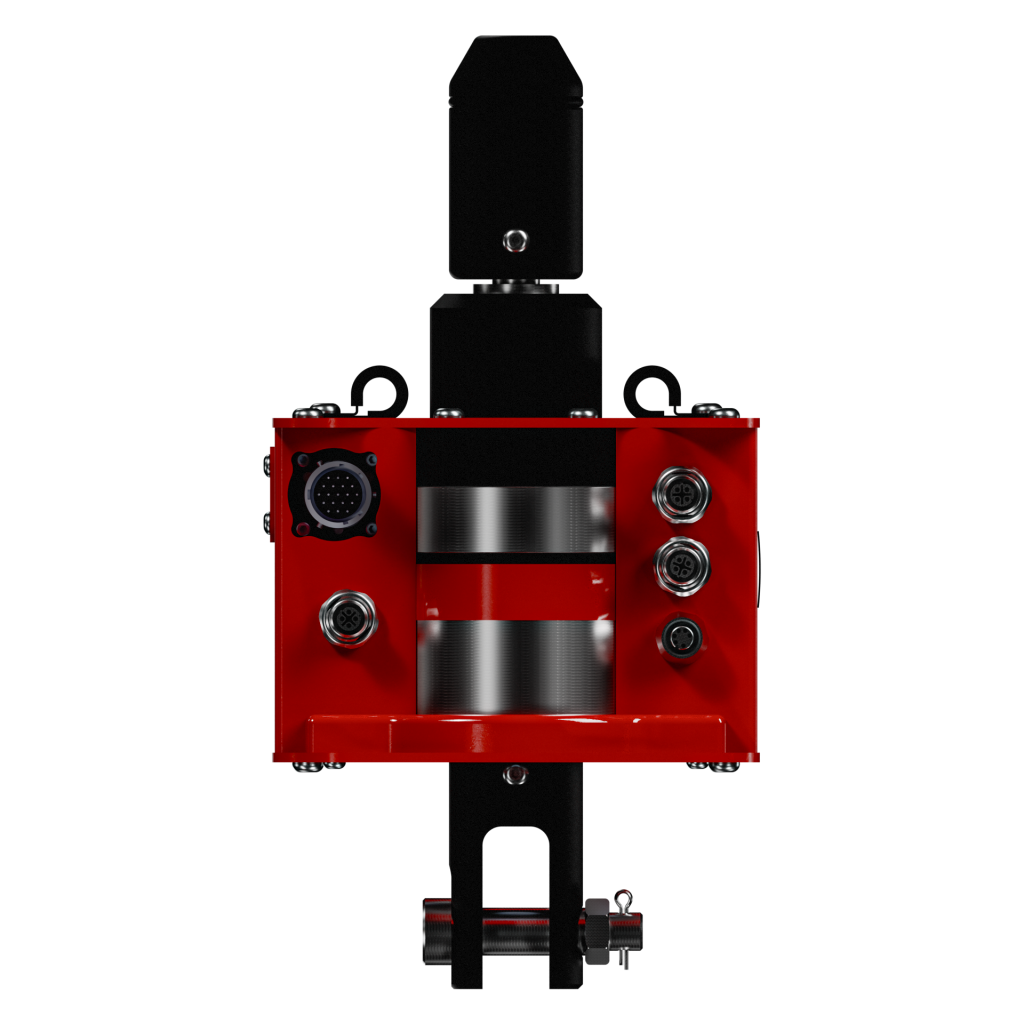

Up to: (3) 4-Pin M12 Female Receptacles for I/O.
(1) 19-Pin M23 Male Receptacle.
(1) 6-Pin M12 Receptacle for Fixture Handle.

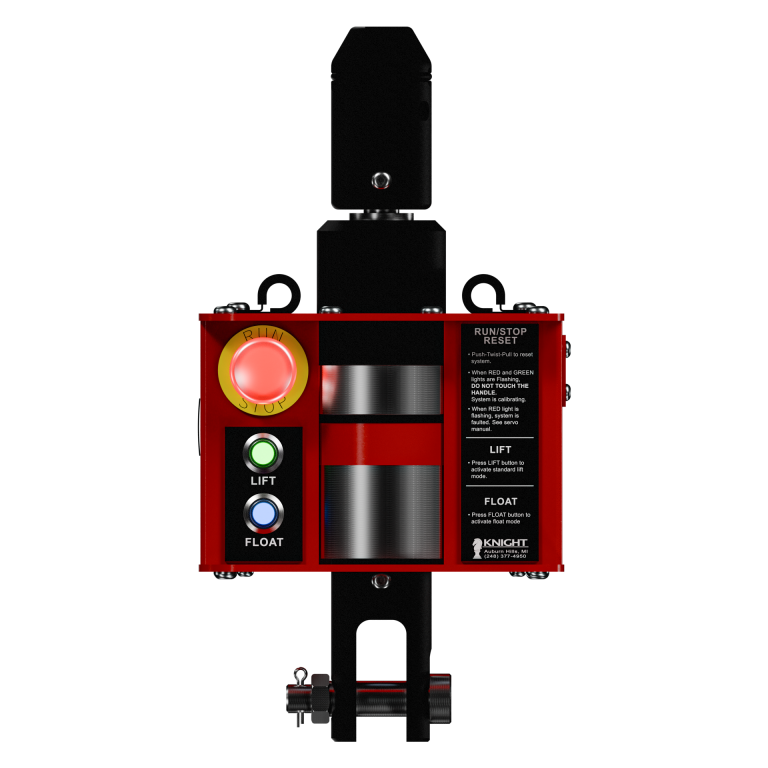

Illuminated Blue/ Green Push Buttons.
Illuminated Red Run-Stop Button.
KSAA1004 Shackle comes standard.
KLCA1002-750:
- Maximum Capacity: 500 lbs. [340kg].
- 750 lbs. [340kg] (LMM)(OCI) Sourcing Load Monitoring Module with Operator Controlled Interface.
- 750 lbs. [340kg] Load Cell with Integral Amplifier.
KLCA1002-2000:
- Maximum Capacity: 1,500 lbs. [680kg].
- 2,000 lbs. [907kg] (LMM)(OCI) Sourcing Load Monitoring Module with Operator Controlled Interface.
- 2,000 lbs. [907kg] Load Cell with Integral Amplifier.
