Two-Speed Control Handle with Operator Control Interface

The KCA1033 is a Base Pendant Control for a Knight Servo Hoist. It permits the operator to control over-sized or cumbersome loads while maneuvering them into tight spaces. Control Handle is equipped with the same features as the Knight Inline Trigger Control Handle and is available in a Single or Two-Speed configuration that may be mounted on a separate cable, connected to a Knight (LMM) Load Monitoring Module or connected directly to a Servo Hoist box.

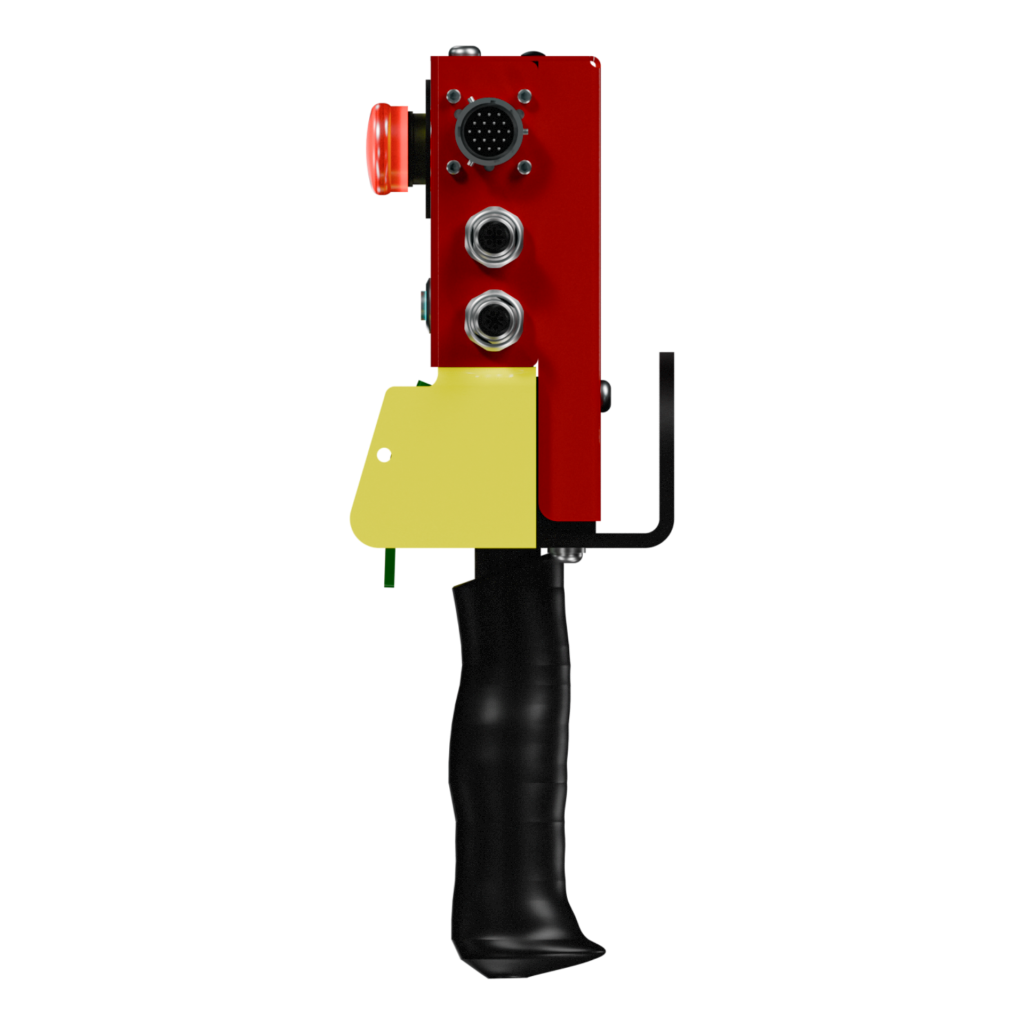

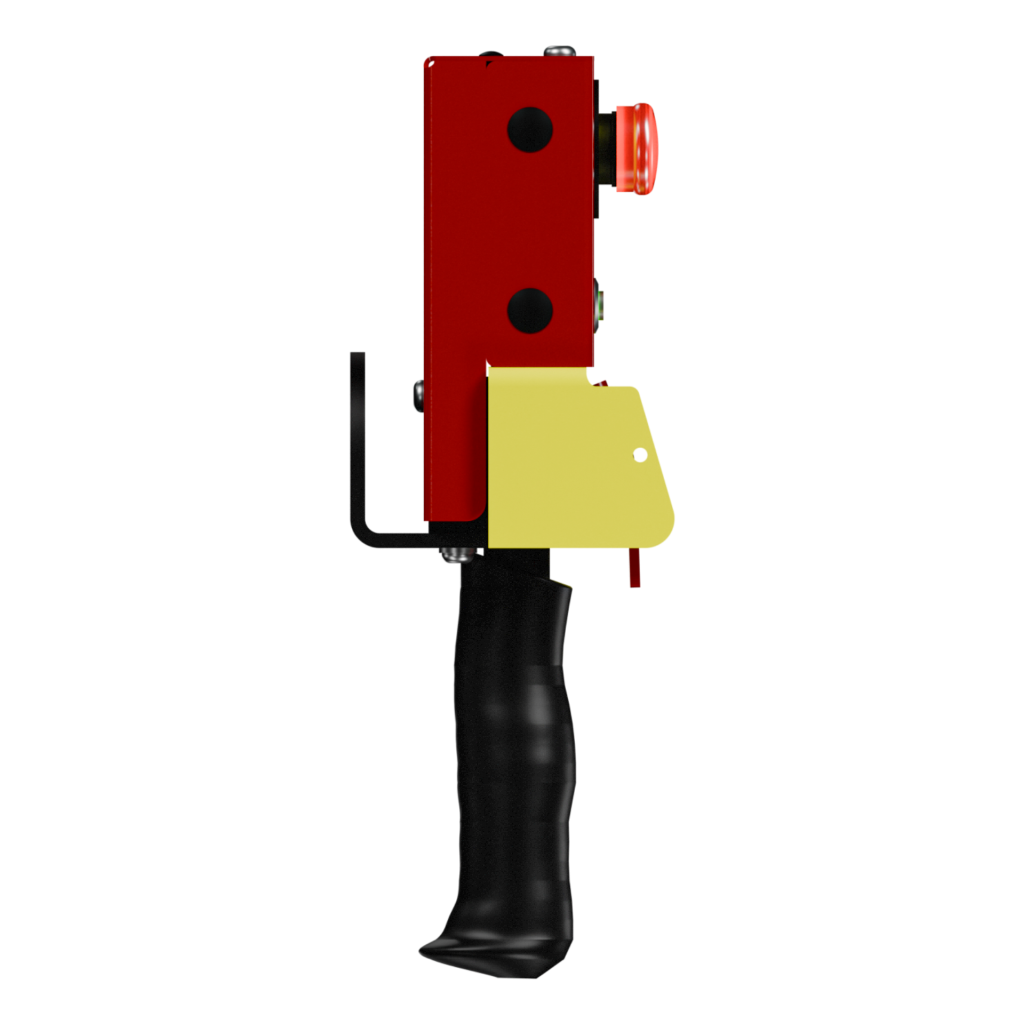

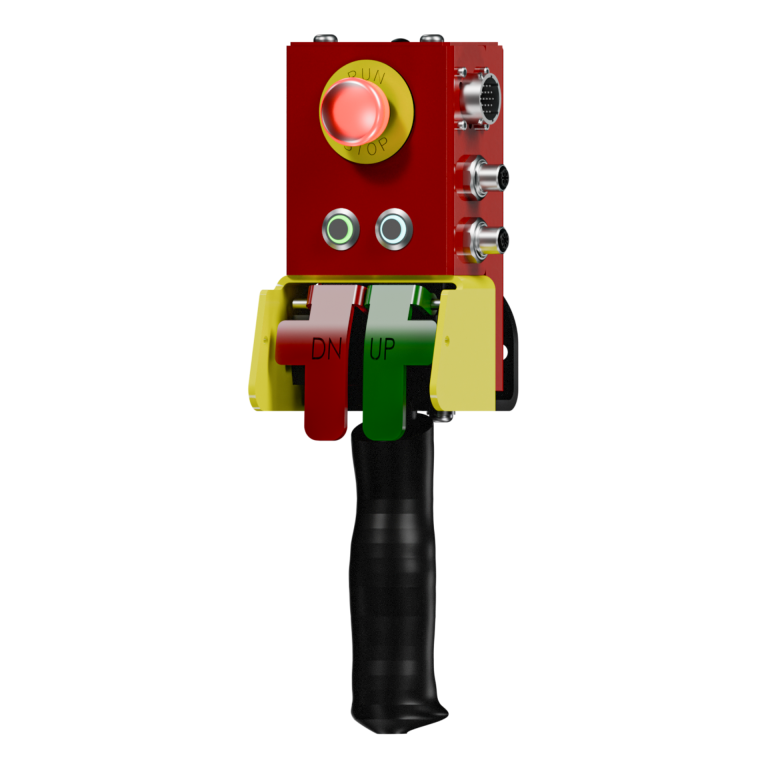

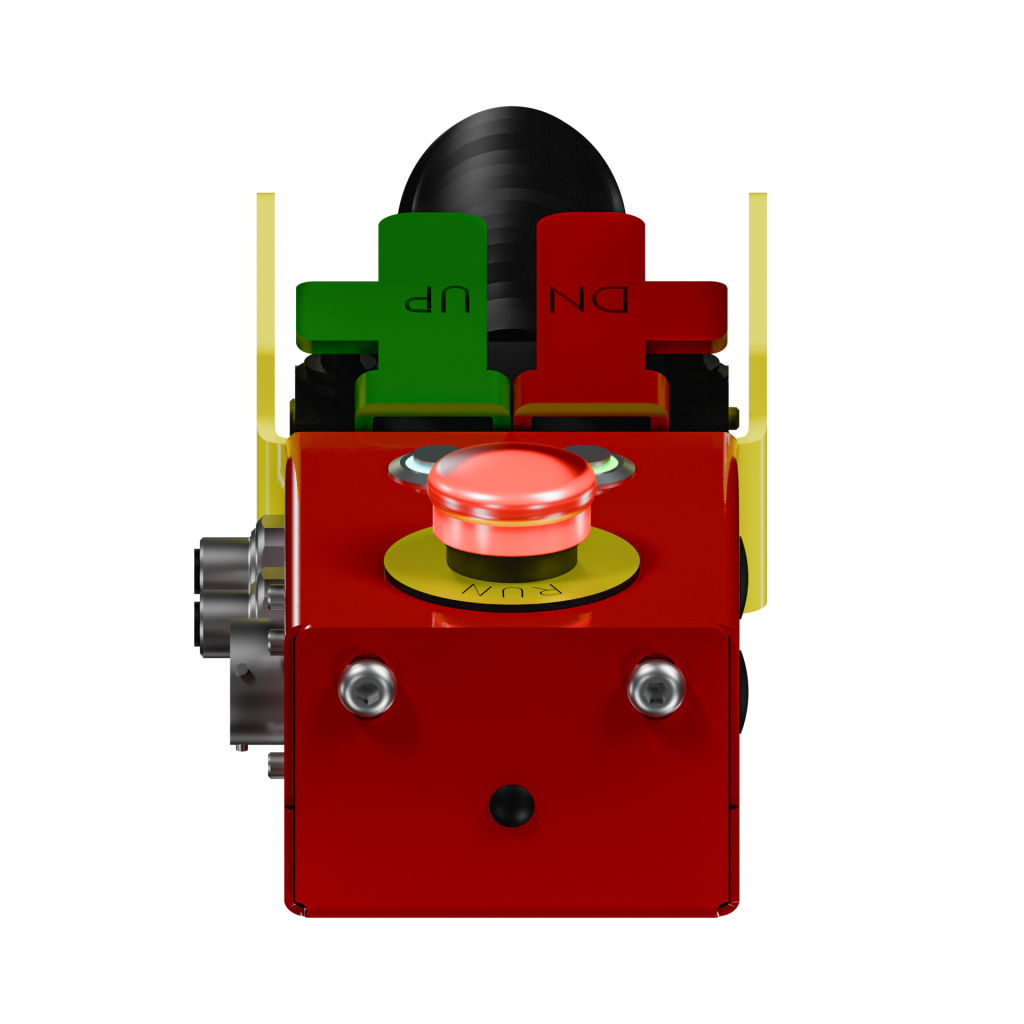

Knight Global’s Operator Control Interface consists of (2) 4-Pin M12 female receptacles for I/O, (1) 6-Pin M12 receptacle for fixture handle, (1) 19-Pin male receptacle, Green/Blue lighted push buttons, lighted Red Run-Stop Push Button and (1) 9-Pin programming port.

(**Previously EBA1063)

part number

KCA1033

features

Allows for 2-Speed Operation.
Operator Control Interface (OCI).
9-Pin D-Sub Programming Port.
19-Pin I/O and Control Connector.
Safety Run-Stop Button.
Illuminated (Blue/Green) Float and Lift Push Buttons.
Electrical Straight Cable sold separately.
Electrical Coil Cable sold separately.
Optional Trigger Button Configuration.

weight

5.04 lbs. [2.29 kg]
