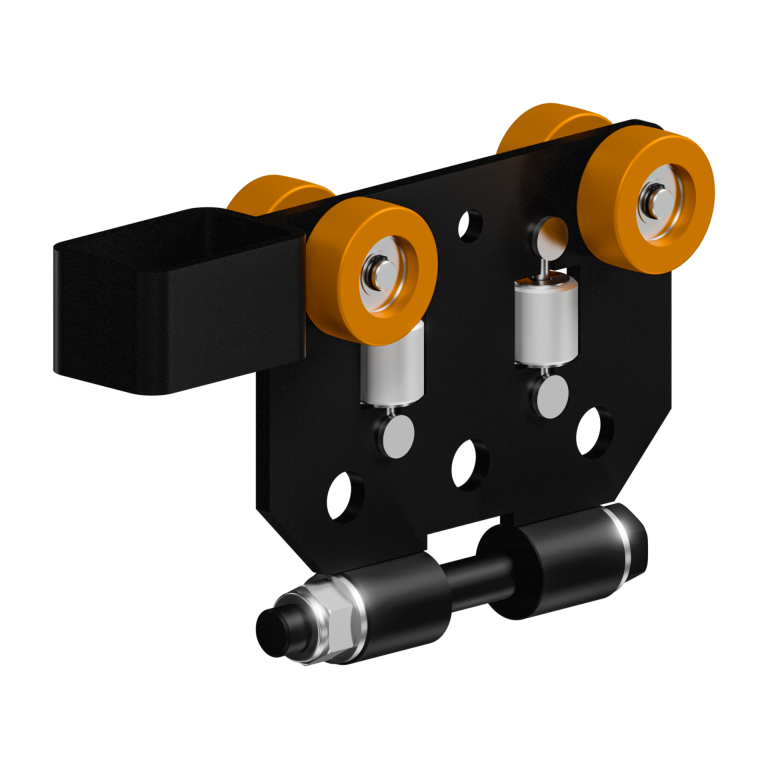

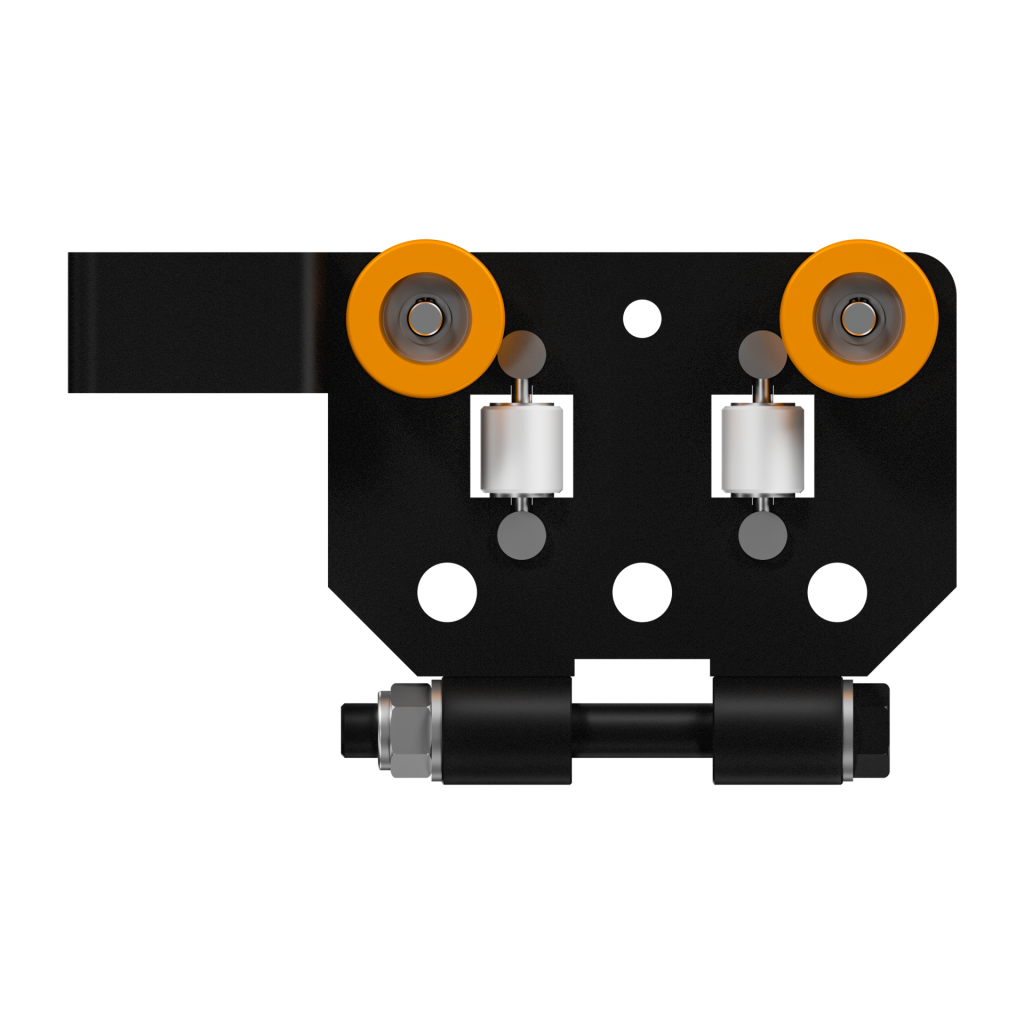

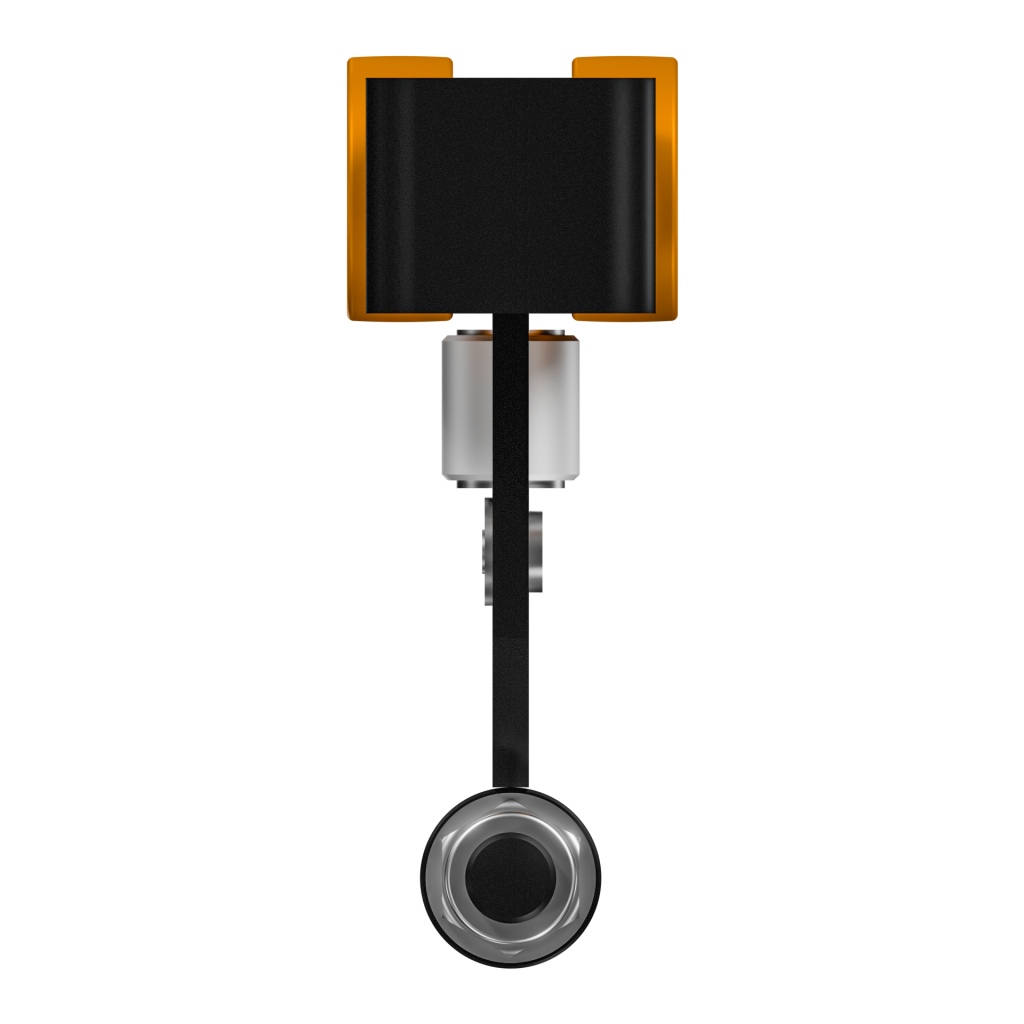

Load Trolley with Yoke

The EMRTA4192 Load Trolley with Yoke travels along a horizontal axis and suspends loads from the ERAD4000 Series rail system. The trolley’s yoke design allows for pivoting in the “X” and “Y” directions which creates freedom of movement. It attaches to the ERail’s conductor trolley.


part number

EMRTA4192

features

  • Suspends a load from Knight’s ERAD4000 Series rail system.
  • Fiberglass filled High Impact Nylon Wheels.
  • Side Guide Rollers with integrated bearings.
  • Double-shielded bearings keep dirt out and do not require lubrication

max capacity

1,140 [517kg]

weight

5.5 lbs [2.48kg]
