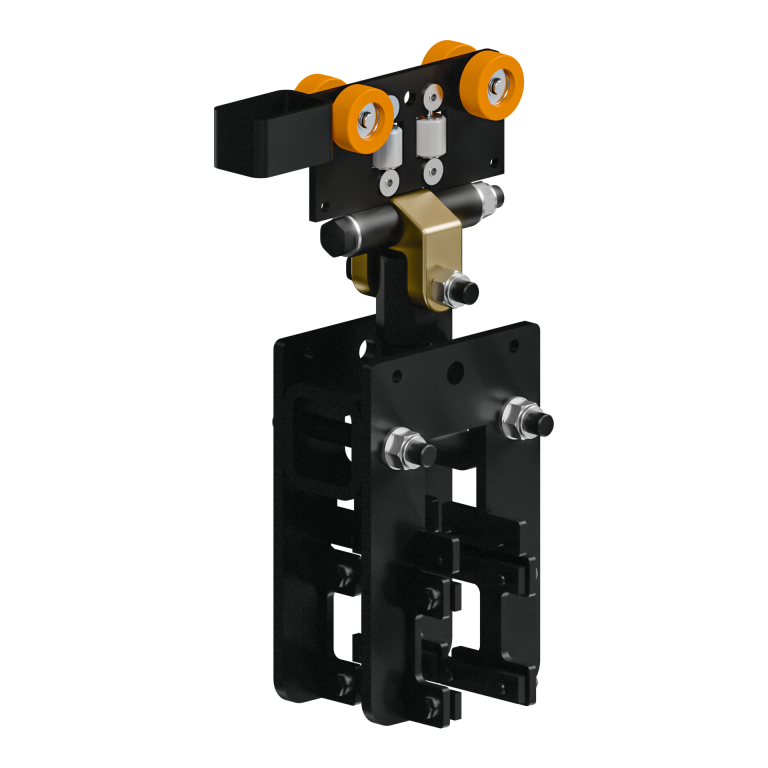

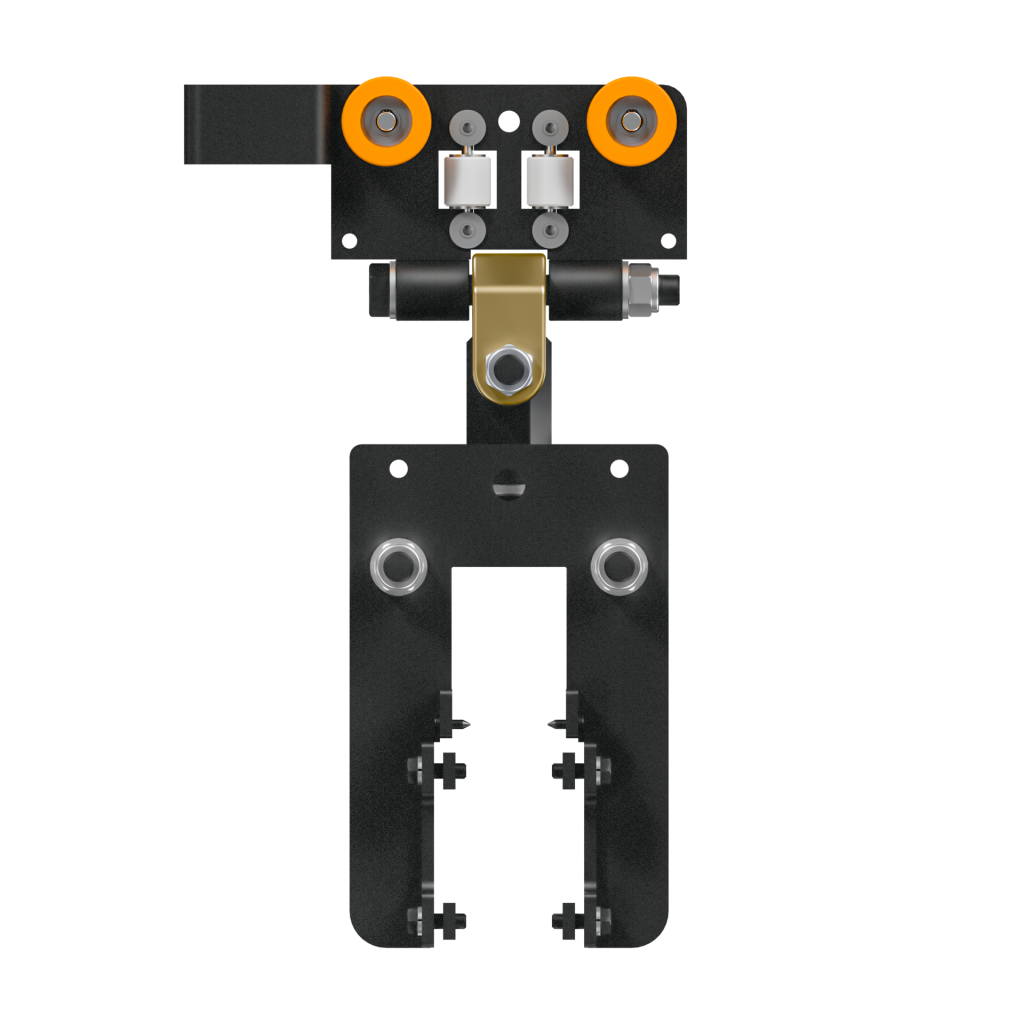

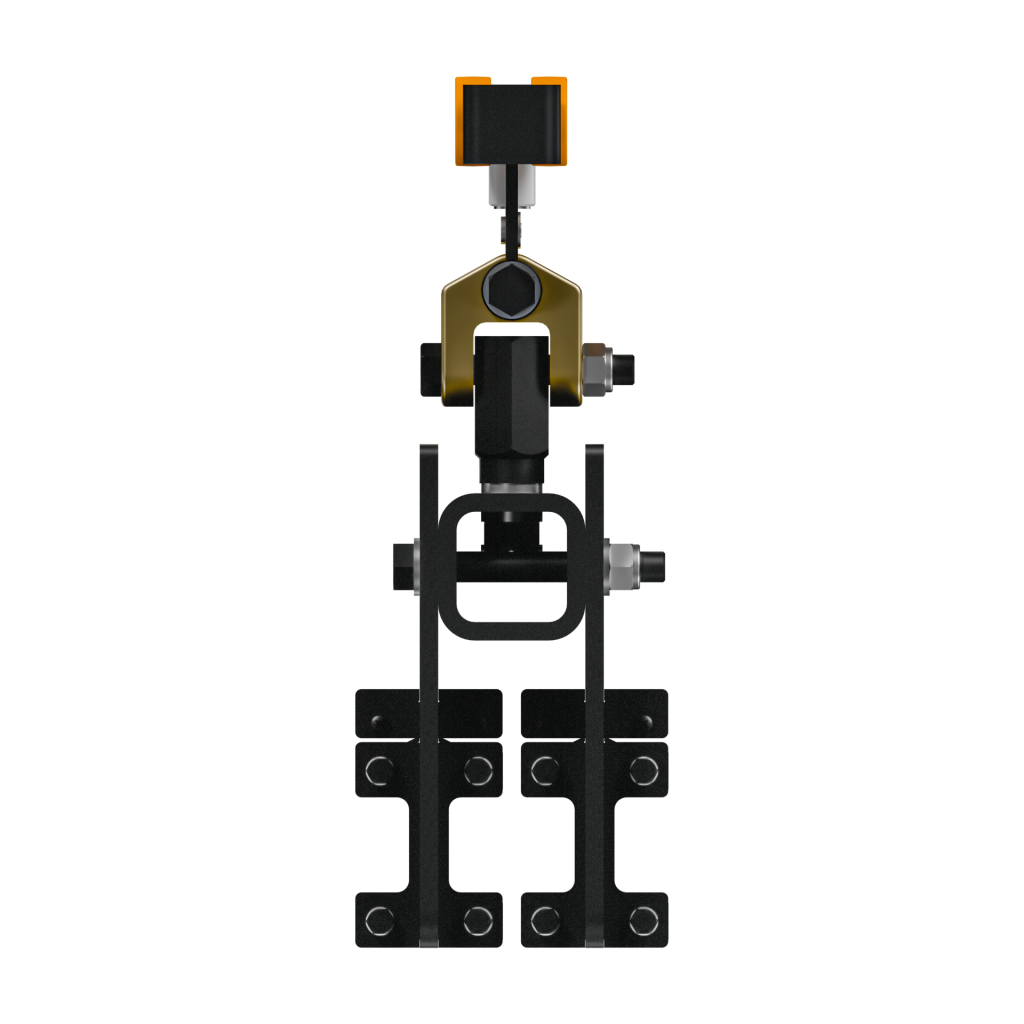

Low Profile Rotating End Truck

The EMRES4185 Low Profile Rotating End Truck suspends Knight’s ERAD4000 Series Rail and the ERail. The end truck’s yoke design allows for the pivoting in the “X” and “Y” directions which creates freedom of movement.

The EMRES4185-4000 runs inside of Knight’s RAD4110 Series Rail.

---

part number

EMRES4185

features

• Suspends Knight’s ERAD4000 Series Rail and the ERail.
• EMRES4185-4000 runs inside of Knight’s RAD4110 Series Rail.
• Yoke design allows for pivoting in the “X” and “Y” directions.

max capacity

1,140 [517kg]

weight

37.7 lbs. [17.11kg].
